UCF10L-AEPGKA (1989)
Toyota Lexus Ls400
Production
May 1989
-
Oct 1994
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8905- )

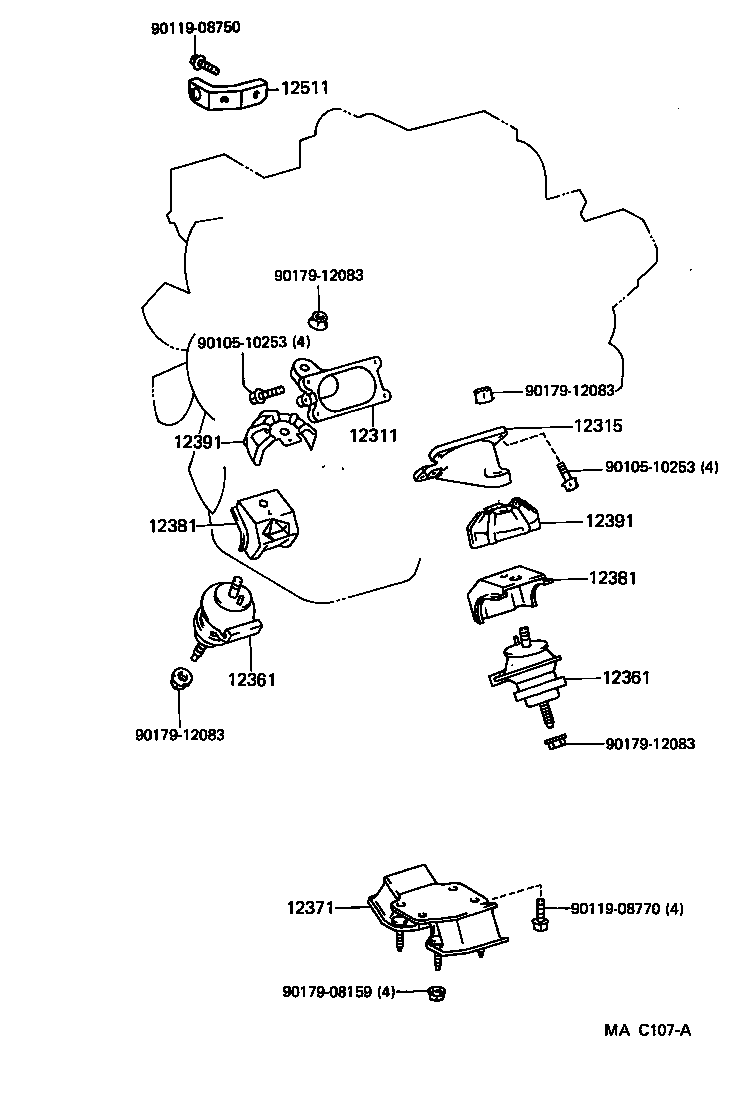

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-50020 |
1UZFE..UCF10 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-50010 |
1UZFE..UCF10 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-50021 |
1UZFE..UCF10 |
2 | ||
| 12361-50020 |
1UZFE..UCF10 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-50021 |
1UZFE..UCF10 |
2 | ||
| 12361-50020 |
1UZFE..UCF10 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-50010 |
1UZFE..UCF10 |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-50010 |
1UZFE..UCF10 |
2 | ||
| 12381-50040 |
1UZFE..UCF10 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-50010 |
1UZFE..UCF10 |
2 | ||
| 12381-50040 |
1UZFE..UCF10 |
2 | ||
| 12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH | ||||
| 12391-50010 |
1UZFE..UCF10 |
2 | ||
| 12391-50020 |
1UZFE..UCF10 |
2 | ||
| 12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH | ||||
| 12391-50010 |
1UZFE..UCF10 |
2 | ||
| 12391-50020 |
1UZFE..UCF10 |
2 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-50020 |
1UZFE..UCF10 |
1 | ||
| Common parts | ||||
| 90105-10253 | ||||
| 90119-08750 | ||||
| 90119-08770 | ||||
| 90179-08159 | ||||
| 90179-12083 | ||||
