LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

Click highlighted areas on diagram

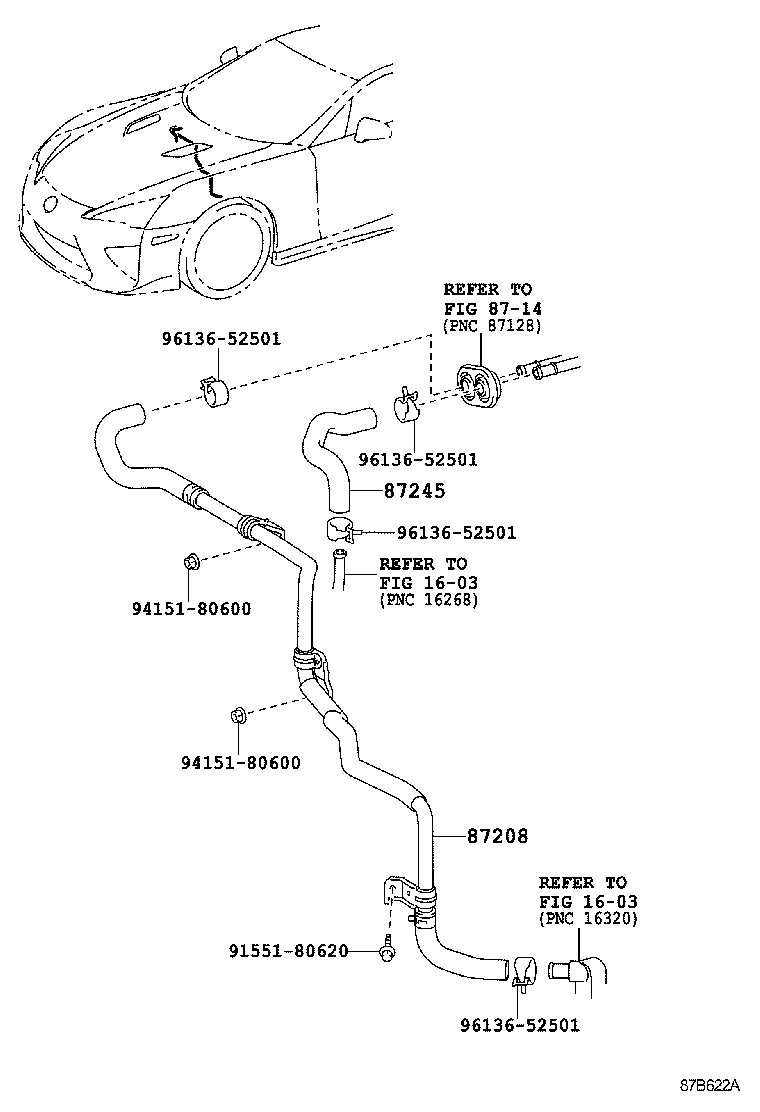

diagram 1603 1603 8714 87208 87245 9155180620 9415180600 9415180600 9613652501 9613652501 9613652501 9613652501
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-77010

LFA10

 1
87245 - HOSE, HEATER WATER, INLET
87245-77010

LFA10

 1
Common parts
91551-80620
94151-80600
96136-52501
Linked diagrams
1603
8714
