LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)

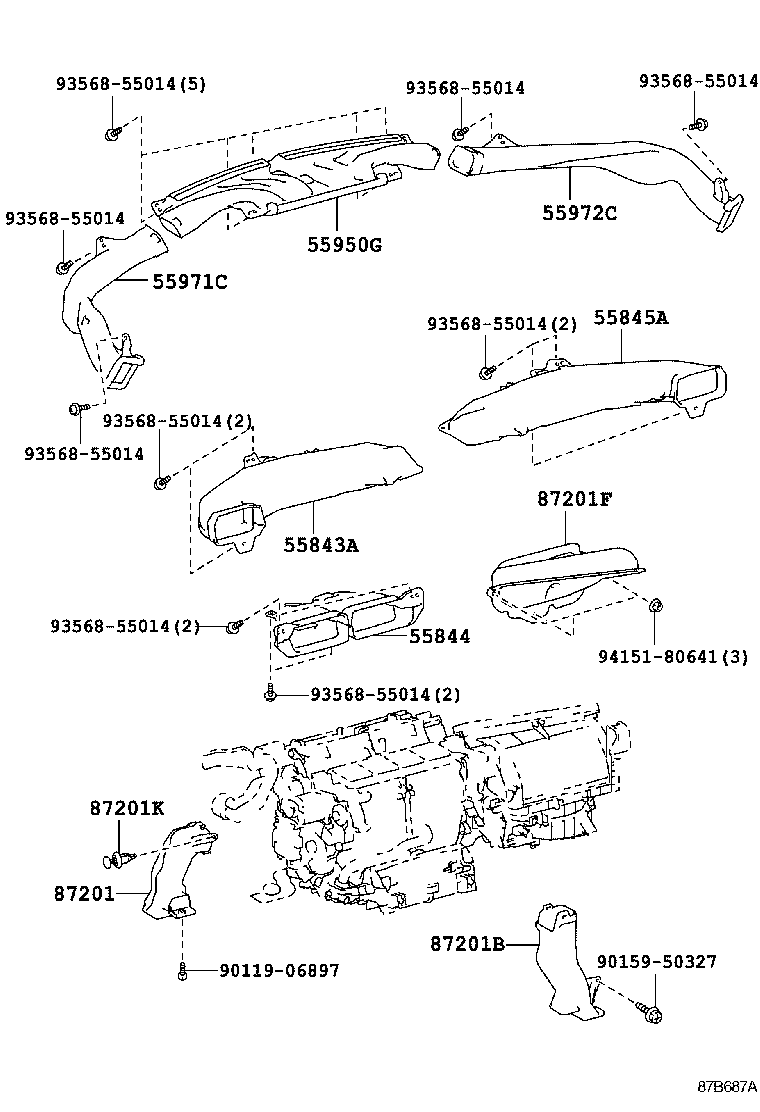

ILLUST NO. 2 OF 3(1012- )
Click highlighted areas on diagram
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-77010 |
LFA10 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-77010 |
LFA10 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-77010 |
LFA10 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-77010 |
LFA10 |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-77010 |
LFA10 |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-77010 |
LFA10 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87211-77080 |
LFA10 |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87211-77090 |
LFA10 |
1 | ||
| 87201F - DUCT SUB-ASSY, AIR, NO.3 | ||||
| 87211-77100 |
LFA10 |
1 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-06165C0 |
LFA10 BLACK |
1 | ||
| Common parts | ||||
| 90119-06897 | ||||
| 90159-50327 | ||||
| 93568-55014 | ||||
| 94151-80641 | ||||

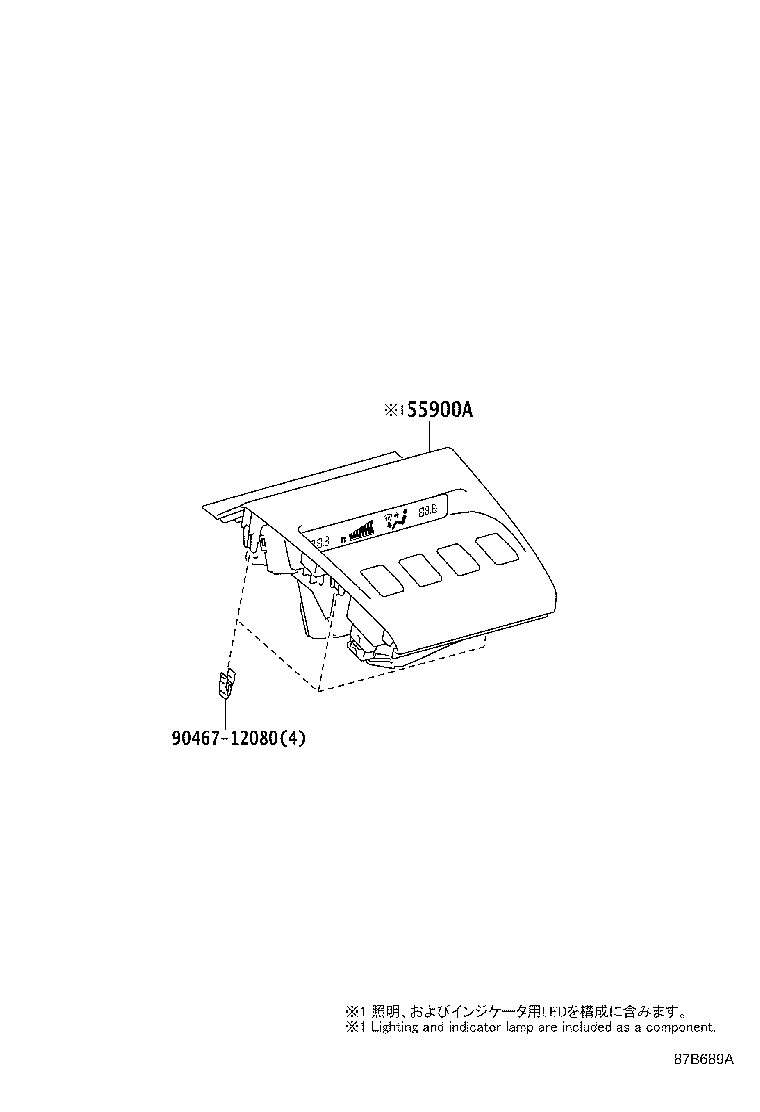

ILLUST NO. 1 OF 3(1012- )
Click highlighted areas on diagram
CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-77010 |
LFA10 |
1 | ||
| 55900-77010 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER |
1 | ||
| Common parts | ||||
| 90467-12080 | ||||

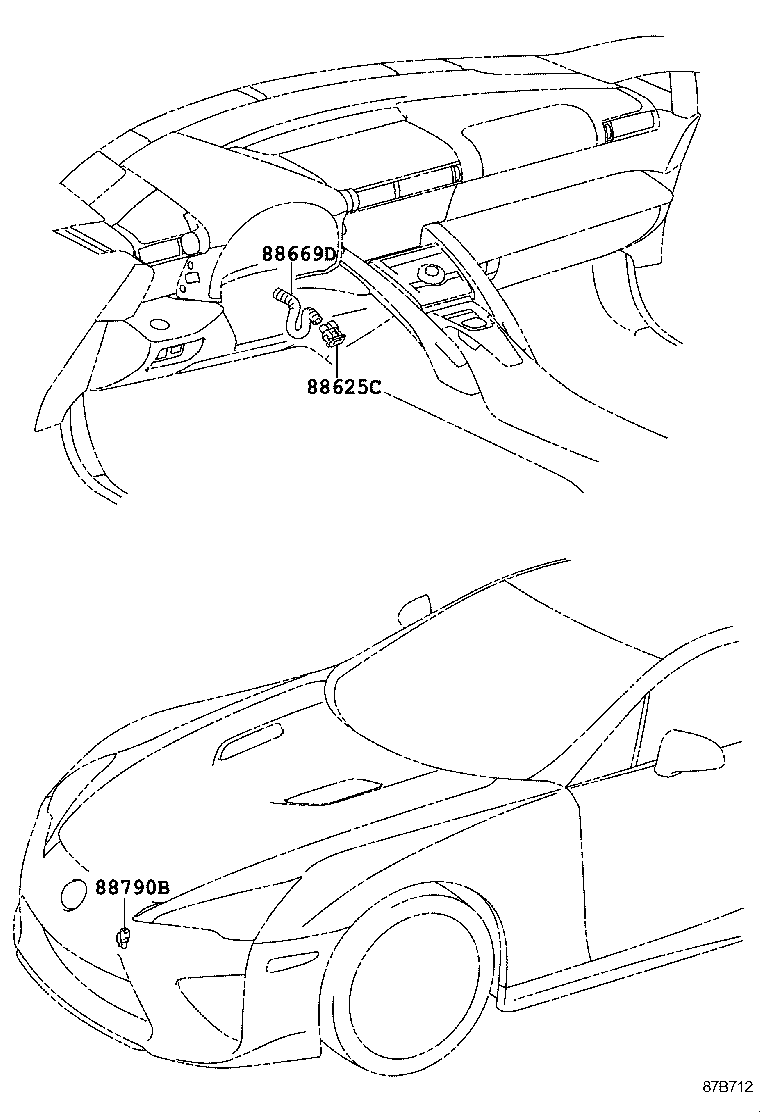

ILLUST NO. 3 OF 3(1012- )
Click highlighted areas on diagram
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-47021 |
LFA10 |
1 | ||
| 88669D - HOSE, AIR | ||||
| 88669-77050 |
LFA10 |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
LFA10 |
1 | ||
