LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

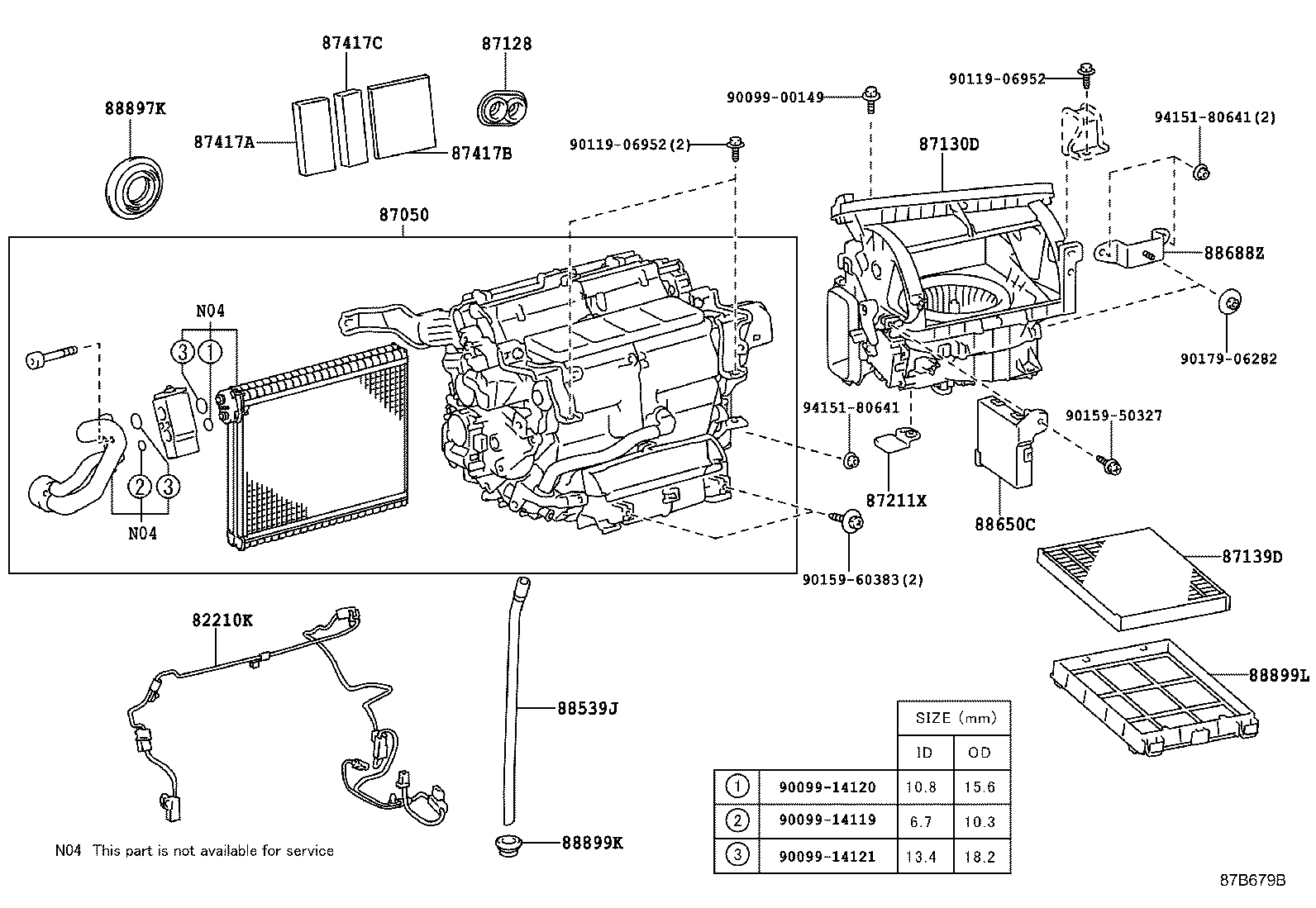

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-77010 |
LFA10 |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-77020 |
LFA10 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-77010 |
LFA10 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-30811 |
LFA10 |
1 | ||
| 87130-77020 |
LFA10 |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-30040 |
LFA10 |
1 | ||
| 87211X - BLOWER COVER | ||||
| 87211-77170 |
LFA10 |
1 | ||
| 87417A - PACKING, AIR DUCT | ||||
| 87417-77010 |
LFA10 |
1 | ||
| 87417B - PACKING, AIR DUCT | ||||
| 87417-77020 |
LFA10 |
1 | ||
| 87417C - PACKING, AIR DUCT | ||||
| 87417-77030 |
LFA10 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-77030 |
LFA10 |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-77010 |
LFA10 |
1 | ||
| 88688Z - BRACKET | ||||
| 88688-77200 |
LFA10 |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-77190 |
LFA10 |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-77230 |
LFA10 |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-3A080 |
LFA10 |
1 | ||
| Common parts | ||||
| 90099-00149 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06952 | ||||
| 90159-50327 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| 94151-80641 | ||||
