LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

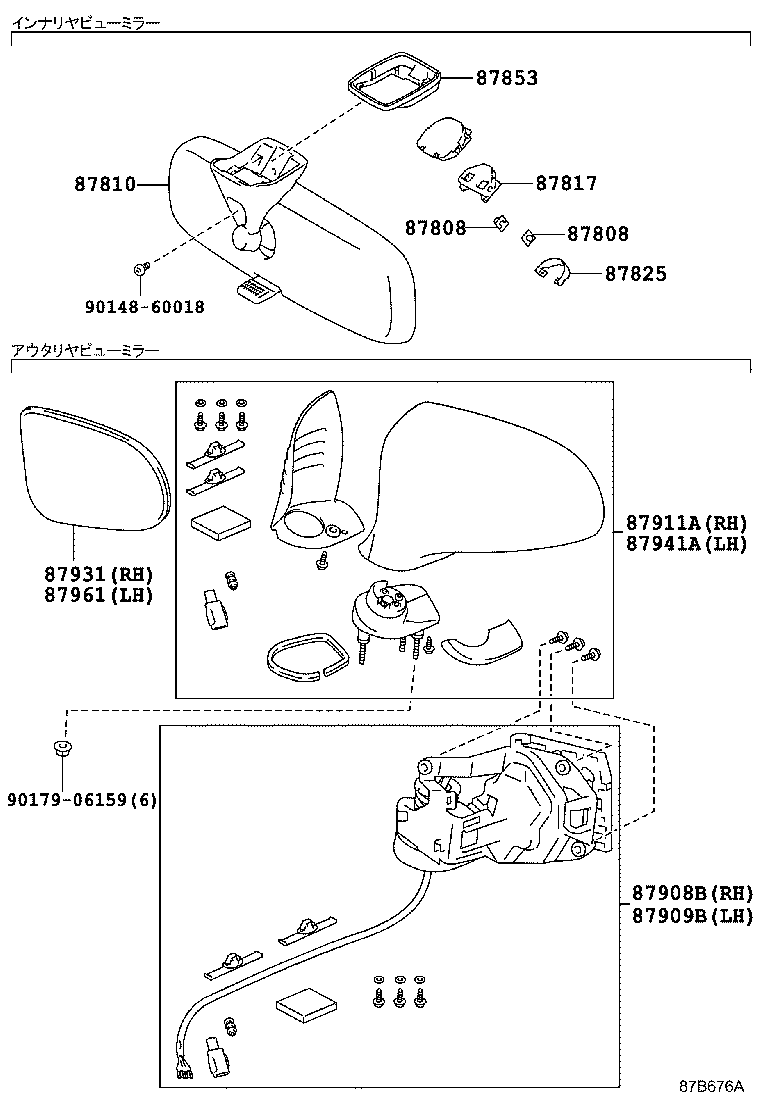

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87808 - HOLDER SUB-ASSY, INNER MIRROR | ||||
| 87808-24010 |
LFA10 |
2 | ||
| 87808 - HOLDER SUB-ASSY, INNER MIRROR | ||||
| 87808-24010 |
LFA10 |
2 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-77010 |
LFA10 |
1 | ||
| 87817 - SPACER, INNER REAR VIEW MIRROR | ||||
| 87817-24010 |
LFA10 |
1 | ||
| 87825 - SPRING, INNER REAR VIEW MIRROR SETTING | ||||
| 87825-24010 |
LFA10 |
1 | ||
| 87853 - BASE, INNER REAR VIEW MIRROR | ||||
| 87853-24020C0 |
LFA10 BLACK |
1 | ||
| 87908B - MIRROR SUB-ASSY, RH | ||||
| 87908-79015 |
LFA10 |
1 | ||
| 87909B - MIRROR SUB-ASSY, LH | ||||
| 87909-79015 |
LFA10 |
1 | ||
| 87911A - VISOR, OUTER MIRROR, RH | ||||
| 87911-79015B4 |
LFA10 BLACK,1G0 ,212 ,3S4 ,8V8 ,9H8 ,9J0 ,9J1 ,9J2 ,9J3 ,9K2 ,9K3 ,9K4 |
1 | ||
| 87911-79015B3 |
LFA10 LIGHT GRAY,1F2 ,4V2 ,9H7 ,9H9 ,9J4 |
1 | ||
| 87911-79015B2 |
LFA10 DK.GRAY,3P0 ,9J5 ,9J9 ,9K0 ,9K1 ,9K6 |
1 | ||
| 87911-79015A2 |
LFA10 WHITE,077 ,079 ,5B0 ,9J6 ,9J7 ,9J8 ,9K1 ,9K5 |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-77010 |
LFA10 |
1 | ||
| 87941A - VISOR, OUTER MIRROR, LH | ||||
| 87941-79015B3 |
LFA10 LIGHT GRAY,1F2 ,4V2 ,9H7 ,9H9 ,9J4 |
1 | ||
| 87941-79015A2 |
LFA10 WHITE,077 ,079 ,5B0 ,9J6 ,9J7 ,9J8 ,9K1 ,9K5 |
1 | ||
| 87941-79015B2 |
LFA10 DK.GRAY,3P0 ,9J5 ,9J9 ,9K0 ,9K1 ,9K6 |
1 | ||
| 87941-79015B4 |
LFA10 BLACK,1G0 ,212 ,3S4 ,8V8 ,9H8 ,9J0 ,9J1 ,9J2 ,9J3 ,9K2 ,9K3 ,9K4 |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-77010 |
LFA10 |
1 | ||
| Common parts | ||||
| 90148-60018 | ||||
| 90179-06159 | ||||
