LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

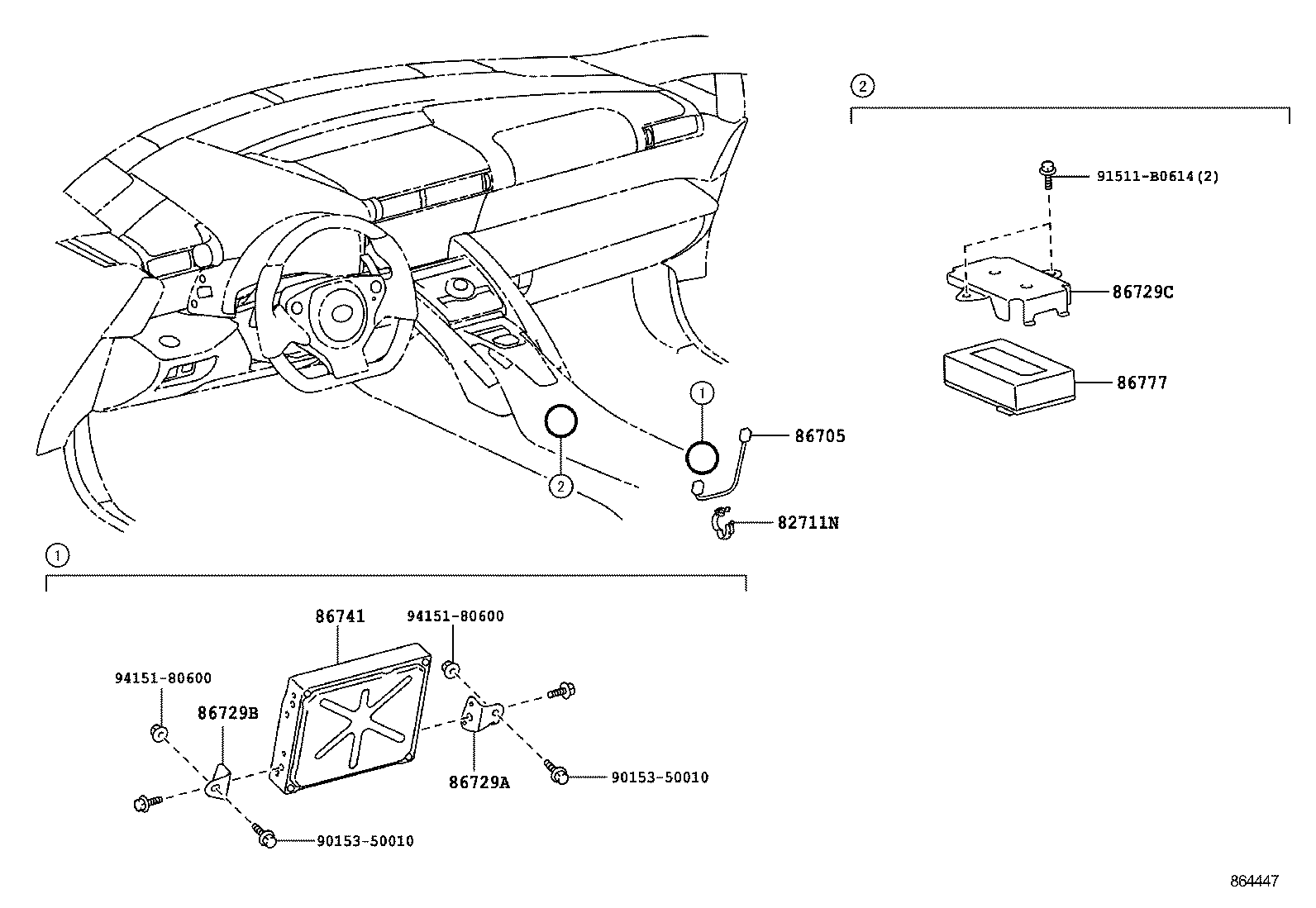

Click highlighted areas on diagram

diagram 82711N 86705 86729A 86729B 86729C 86741 86777 9015350010 9015350010 91511B0614 9415180600 9415180600
Part # Description Qty Price
82711N - CLAMP, WIRING HARNESS
82711-10070

LFA10

MAYDAY SYSTEM-W(LEXUS ENFORM)

 1
86705 - CORD SUB-ASSY, TELEPHONE ANTENNA
86705-77010

LFA10

MAYDAY SYSTEM-W(LEXUS ENFORM)

 1
86729A - BRACKET, MOBILEPHONE, NO.1
86729-77010

LFA10

MAYDAY SYSTEM-W(LEXUS ENFORM)

 1
86729B - BRACKET, MOBILEPHONE, NO.2
86729-77020

LFA10

MAYDAY SYSTEM-W(LEXUS ENFORM)

 1
86729C - BRACKET, MOBILEPHONE, NO.3
86729-77030

LFA10

MAYDAY SYSTEM-W(LEXUS ENFORM)

 1
86741 - TRANSCEIVER, TELEPHONE
86741-53022

LFA10

MAYDAY SYSTEM-W(LEXUS ENFORM)

 1
86777 - BATTERY, MAYDAY
86777-0W060

LFA10

MAYDAY SYSTEM-W(LEXUS ENFORM)

 1
Common parts
90153-50010
91511-B0614
94151-80600
