LFA10L-FCRAFA (2010)
Toyota Lexus Lfa

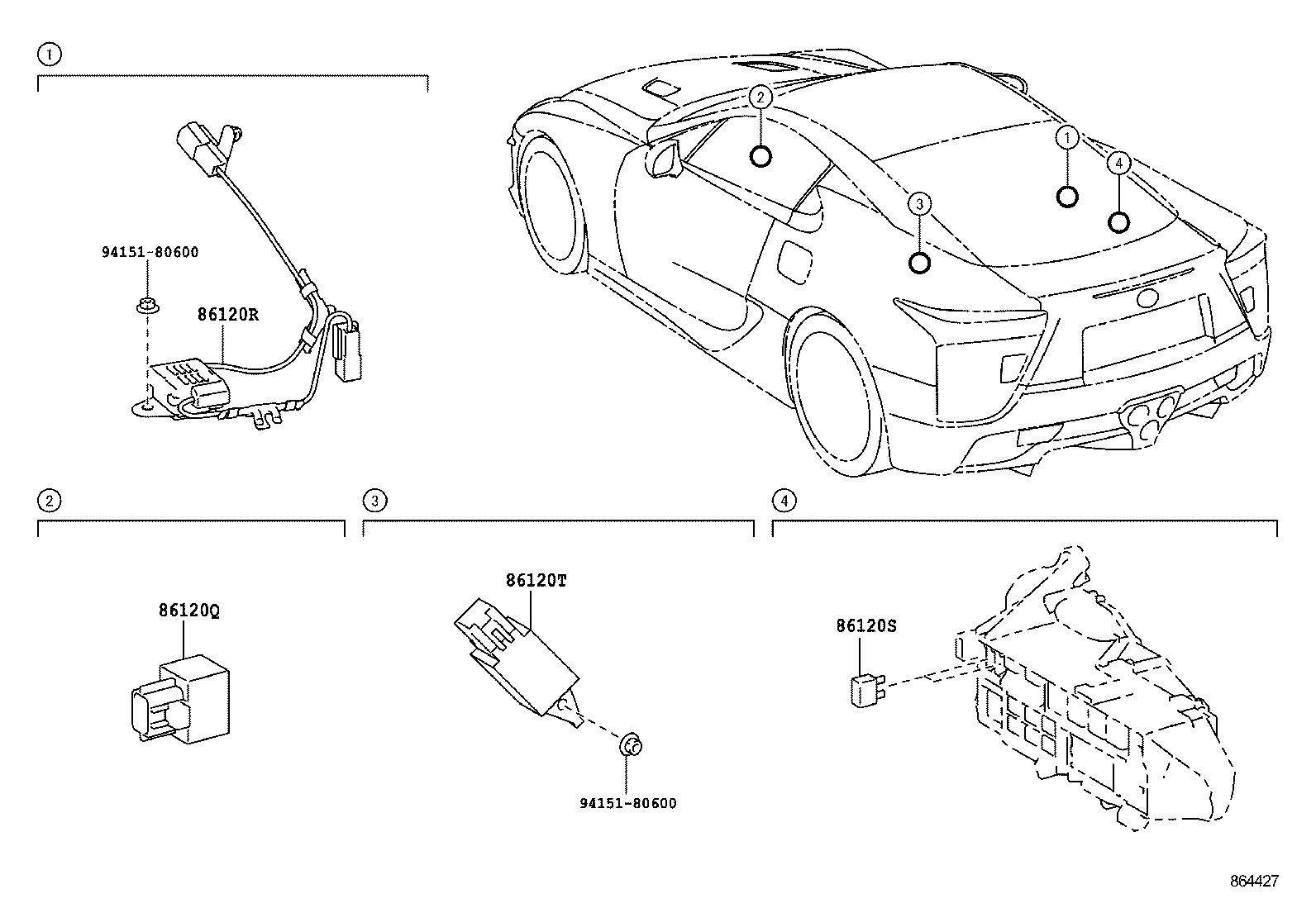

ILLUST NO. 3 OF 3(1012- )
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120Q - CONDENSER | ||||
| 90980-04083 |
LFA10 |
2 | ||
| 86120R - CONDENSER | ||||
| 86516-77010 |
LFA10 |
1 | ||
| 86120S - CONDENSER | ||||
| 90980-04161 |
LFA10 |
2 | ||
| 86120T - CONDENSER | ||||
| 90980-04198 |
LFA10 |
1 | ||
| Common parts | ||||
| 94151-80600 | ||||

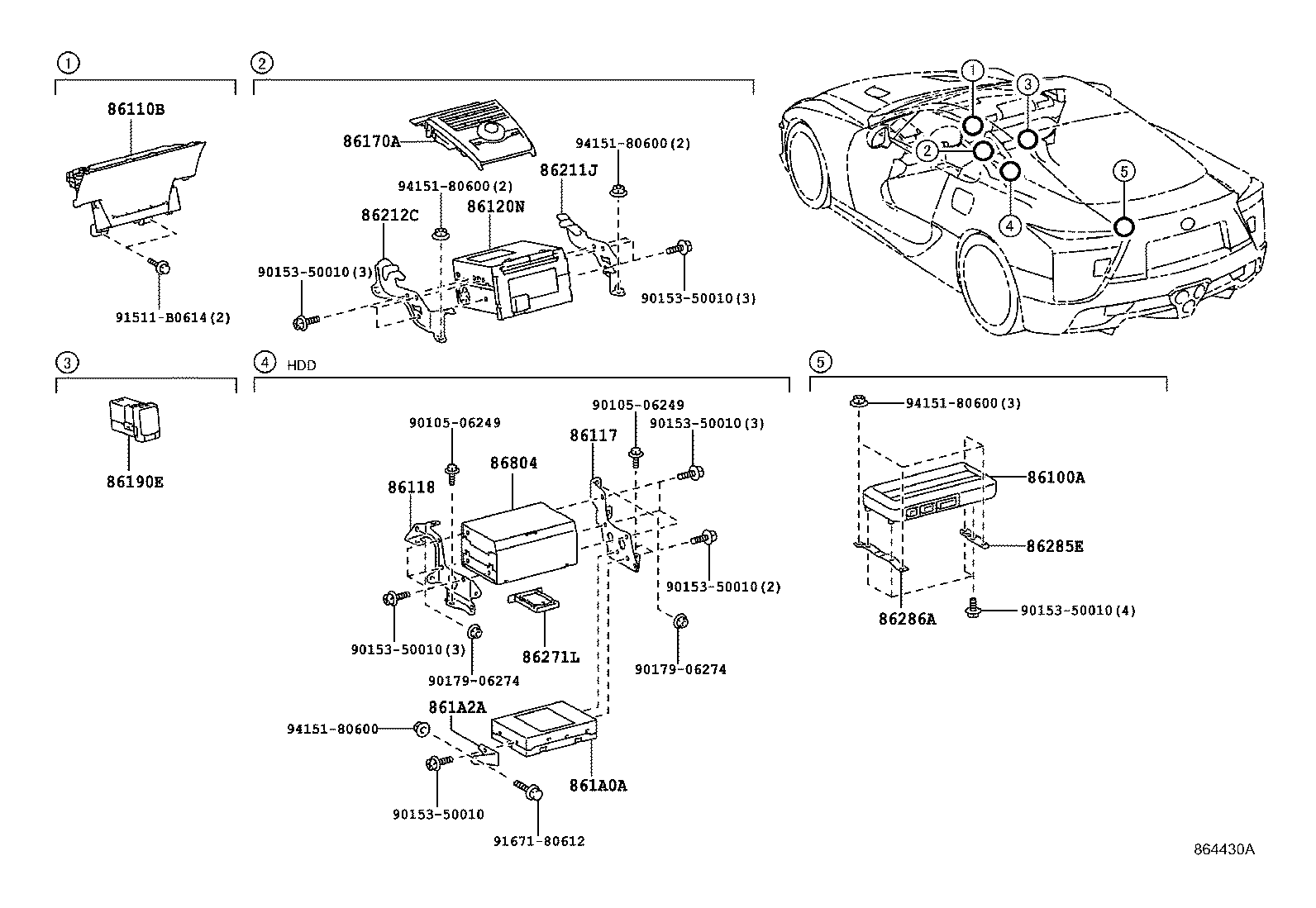

ILLUST NO. 1 OF 3(1012- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86100A - AMPLIFIER ASSY | ||||
| 86100-0W110 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER |
1 | ||
| 86110B - MULTI-DISPLAY ASSY | ||||
| 86110-77030 |
LFA10 |
1 | ||
| 86110-77040 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER |
1 | ||
| 86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A | ||||
| 86117-77010 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER |
1 | ||
| 86118 - BRACKET, MULTI-DISPLAY CONTROLER, B | ||||
| 86118-77010 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER |
1 | ||
| 86120N - RECEIVER ASSY, RADIO | ||||
| 86120-77100 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER |
1 | ||
| 86120-77060 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER&SATELLITE RADIO-WITH |
1 | ||
| 86120-77070 |
LFA10 CANADA SPEC&AUDIO-MARK LEVINSON 12SPEAKER&SATELLITE RADIO-WITH |
1 | ||
| 86170A - SWITCH & VOLUME ASSY | ||||
| 86170-77010C0 |
LFA10 CANADA SPEC&CUSTOMIZE ORNAMENT(1)-BLACK PLATING&AUDIO-MARK LEVINSON 12SPEAKER&SATELLITE RADIO-WITH,BROWNISH BLACK,TRIM20 |
1 | ||
| 86170-77010B0 |
LFA10 CUSTOMIZE ORNAMENT(1)-STAIN SILVER&AUDIO-MARK LEVINSON 12SPEAKER&SATELLITE RADIO-WITH,SILVER 3/TP-40 TI,TRIM20 |
1 | ||
| 86170-77010C0 |
LFA10 CUSTOMIZE ORNAMENT(1)-BLACK PLATING&AUDIO-MARK LEVINSON 12SPEAKER&SATELLITE RADIO-WITH,BROWNISH BLACK,TRIM20 |
1 | ||
| 86170-77010B0 |
LFA10 CANADA SPEC&CUSTOMIZE ORNAMENT(1)-STAIN SILVER&AUDIO-MARK LEVINSON 12SPEAKER&SATELLITE RADIO-WITH,SILVER 3/TP-40 TI,TRIM20 |
1 | ||
| 86170-77030B0 |
LFA10 CUSTOMIZE ORNAMENT(1)-STAIN SILVER&AUDIO-MARK LEVINSON 12SPEAKER,SILVER 3/TP-40 TI,TRIM20 |
1 | ||
| 86170-77030C0 |
LFA10 CUSTOMIZE ORNAMENT(1)-BLACK PLATING&AUDIO-MARK LEVINSON 12SPEAKER,BROWNISH BLACK,TRIM20 |
1 | ||
| 86190E - ADAPTER ASSY, STEREO JACK | ||||
| 86190-53040 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER |
1 | ||
| 861A0A - COMPUTER ASSY, MULTI-MEDIA INTERFACE | ||||
| 861A0-77010 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER |
1 | ||
| 861A2A - BRACKET, MULTI-MEDIA INTERFACE, NO.1 | ||||
| 861A2-77010 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER |
1 | ||
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-77010 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER |
1 | ||
| 86211-77020 |
LFA10 |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-77020 |
LFA10 |
1 | ||
| 86212-77010 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER |
1 | ||
| 86271L - HARD DISC | ||||
| 86271-75033 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER |
1 | ||
| 86271-75032 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER |
1 | ||
| 86271-75034 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER |
1 | ||
| 86285E - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-77010 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER |
1 | ||
| 86286A - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-77010 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER |
1 | ||
| 86804 - COVER SUB-ASSY, NAVIGATION COMPUTER | ||||
| 86804-77010 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER |
1 | ||
| Common parts | ||||
| 90105-06249 | ||||
| 90153-50010 | ||||
| 90179-06274 | ||||
| 91511-B0614 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||

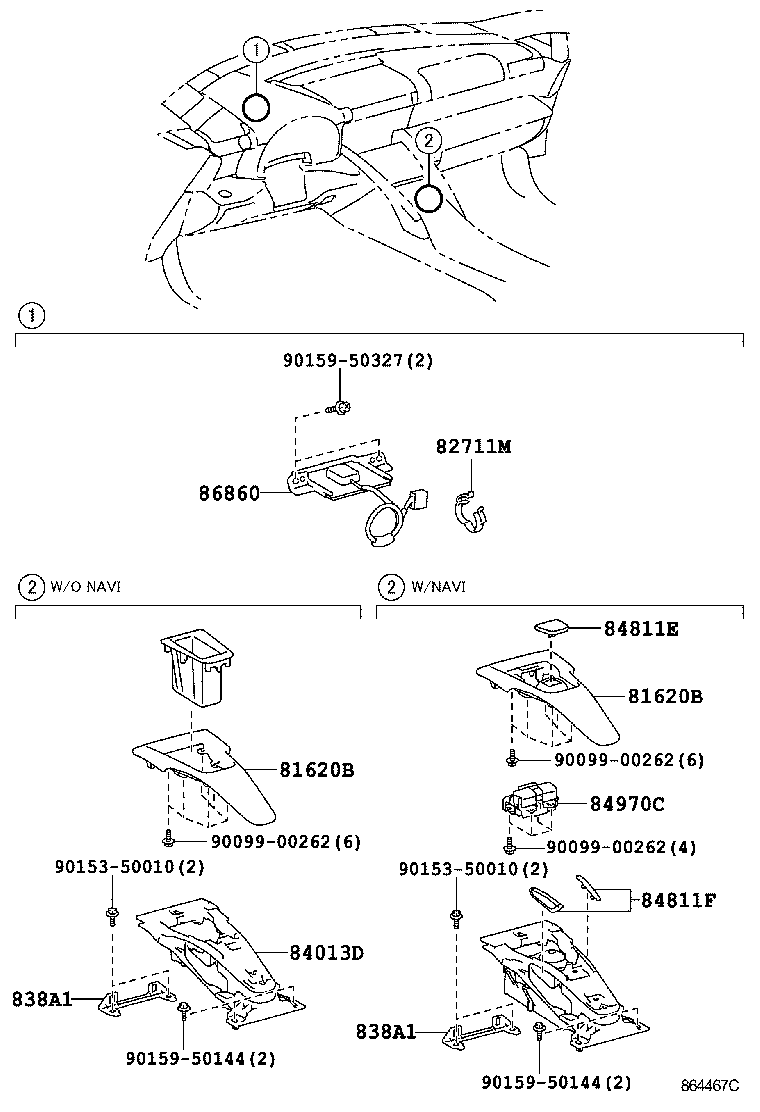

ILLUST NO. 2 OF 3(1012- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81620B - COVER ASSY LH | ||||
| 81620-77020 |

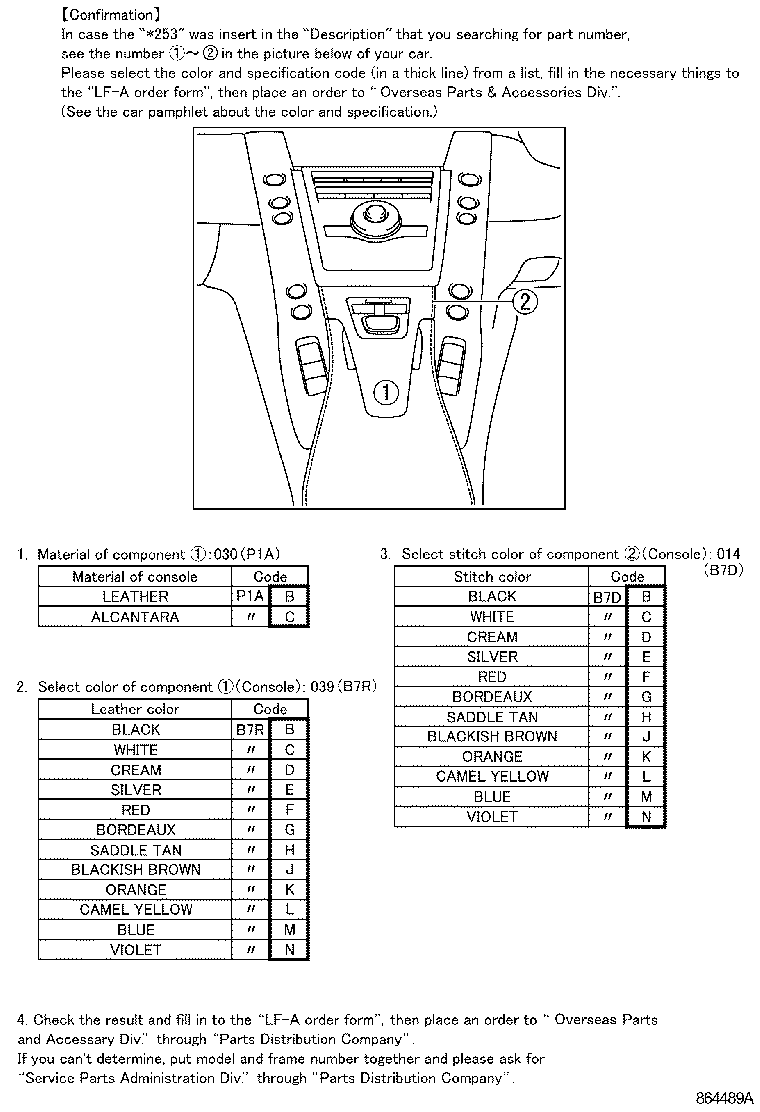

LFA10 *253 |
1 | ||
| 81620-77010 |
LFA10 INSTRUMENT PANEL-LEATHER & CARBON,*253 |
1 | ||
| 81620-77010 |
LFA10 INSTRUMENT PANEL-LEATHER & CARBON&AUDIO-MARK LEVINSON 12SPEAKER,*253 |
1 | ||
| 81620B - COVER ASSY LH | ||||
| 81620-77020 |
LFA10 *253 |
1 | ||
| 81620-77010 |
LFA10 INSTRUMENT PANEL-LEATHER & CARBON,*253 |
1 | ||
| 81620-77010 |
LFA10 INSTRUMENT PANEL-LEATHER & CARBON&AUDIO-MARK LEVINSON 12SPEAKER,*253 |
1 | ||
| 82711M - CLAMP, WIRING HARNESS | ||||
| 82711-10070 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER |
1 | ||
| 838A1 - BRACKET, COMBINATION METER | ||||
| 838A1-77010 |
LFA10 |
1 | ||
| 838A1 - BRACKET, COMBINATION METER | ||||
| 838A1-77010 |
LFA10 |
1 | ||
| 84013D - PANEL SUB-ASSY, INTEGRATION | ||||
| 84013-77020 |
LFA10 |
1 | ||
| 84811E - KNOB, SWITCH | ||||
| 84811-77010B0 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER,SATIN SILVER,TRIM20 |
1 | ||
| 84811-77010C0 |
LFA10 INSTRUMENT PANEL-LEATHER & CARBON&AUDIO-MARK LEVINSON 12SPEAKER,BROWNISH BLACK,TRIM20 |
1 | ||
| 84811-77010C0 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER,BROWNISH BLACK,TRIM20 |
1 | ||
| 84811-77010B0 |
LFA10 INSTRUMENT PANEL-LEATHER & CARBON&AUDIO-MARK LEVINSON 12SPEAKER,SATIN SILVER,TRIM20 |
1 | ||
| 84811F - KNOB, SWITCH | ||||
| 84811-77020B0 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER,SATIN SILVER,TRIM20 |
1 | ||
| 84811-77020B0 |
LFA10 INSTRUMENT PANEL-LEATHER & CARBON&AUDIO-MARK LEVINSON 12SPEAKER,SATIN SILVER,TRIM20 |
1 | ||
| 84811-77020C0 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER,BROWNISH BLACK,TRIM20 |
1 | ||
| 84811-77020C0 |
LFA10 INSTRUMENT PANEL-LEATHER & CARBON&AUDIO-MARK LEVINSON 12SPEAKER,BROWNISH BLACK,TRIM20 |
1 | ||
| 84970C - SWITCH ASSY, COMBINATION | ||||
| 84970-77030 |
LFA10 INSTRUMENT PANEL-LEATHER & CARBON&AUDIO-MARK LEVINSON 12SPEAKER |
1 | ||
| 84970-77030 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-77010 |
LFA10 AUDIO-MARK LEVINSON 12SPEAKER |
1 | ||
| Common parts | ||||
| 90099-00262 | ||||
| 90153-50010 | ||||
| 90159-50144 | ||||
| 90159-50327 | ||||
