LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

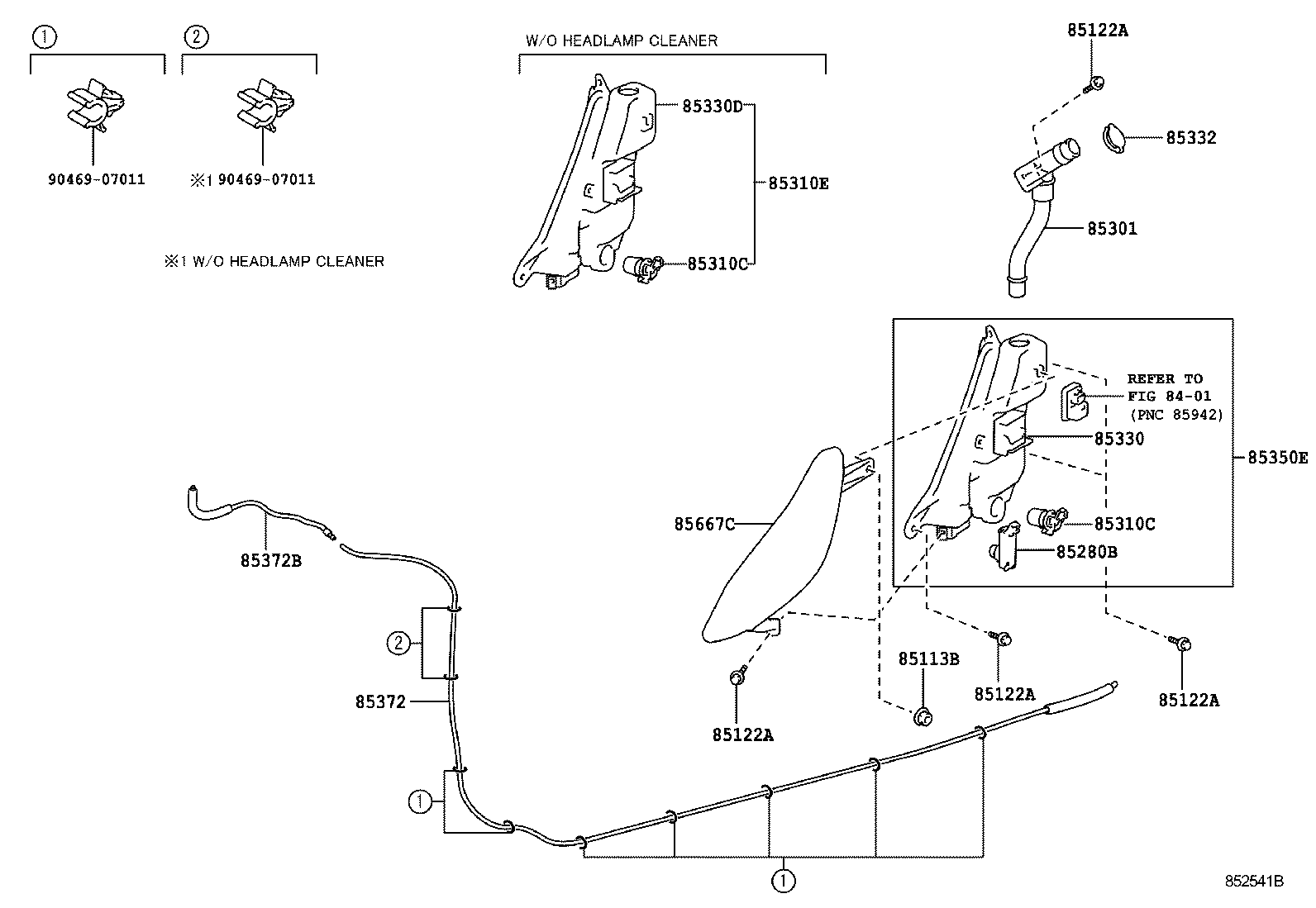

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85113B - NUT | ||||
| 85113-77010 |
LFA10 |
1 | ||
| 85122A - BOLT | ||||
| 85122-77010 |
LFA10 |
5 | ||
| 85122A - BOLT | ||||
| 85122-77010 |
LFA10 |
5 | ||
| 85122A - BOLT | ||||
| 85122-77010 |
LFA10 |
5 | ||
| 85122A - BOLT | ||||
| 85122-77010 |
LFA10 |
5 | ||
| 85280B - MOTOR & PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-47010 |
LFA10 HEAD LAMP CLEANER-WITH |
1 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-77010 |
LFA10 |
1 | ||
| 85310C - MOTOR & PUMP ASSY, WASHER | ||||
| 85330-60190 |
LFA10 |
1 | ||
| 85310C - MOTOR & PUMP ASSY, WASHER | ||||
| 85330-60190 |
LFA10 |
1 | ||
| 85310E - JAR & PUMP ASSY, WASHER | ||||
| 85310-77010 |
LFA10 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85355-77010 |
LFA10 HEAD LAMP CLEANER-WITH |
1 | ||
| 85330D - JAR ASSY, WASHER | ||||
| 85315-77010 |
LFA10 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-77010 |
LFA10 |
1 | ||
| 85350E - JAR & PUMP ASSY, HEADLAMP CLEANER | ||||
| 85350-77010 |
LFA10 HEAD LAMP CLEANER-WITH |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 85370-77010 |
LFA10 HEAD LAMP CLEANER-WITH |
1 | ||
| 85370-77010 |
LFA10 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 85370-77020 |
LFA10 |
1 | ||
| 85370-77020 |
LFA10 HEAD LAMP CLEANER-WITH |
1 | ||
| 85667C - COVER, MOTOR | ||||
| 85667-77010 |
LFA10 |
1 | ||
| Common parts | ||||
| 90469-07011 | ||||
| Linked diagrams | ||||
| 8401 | ||||
