LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

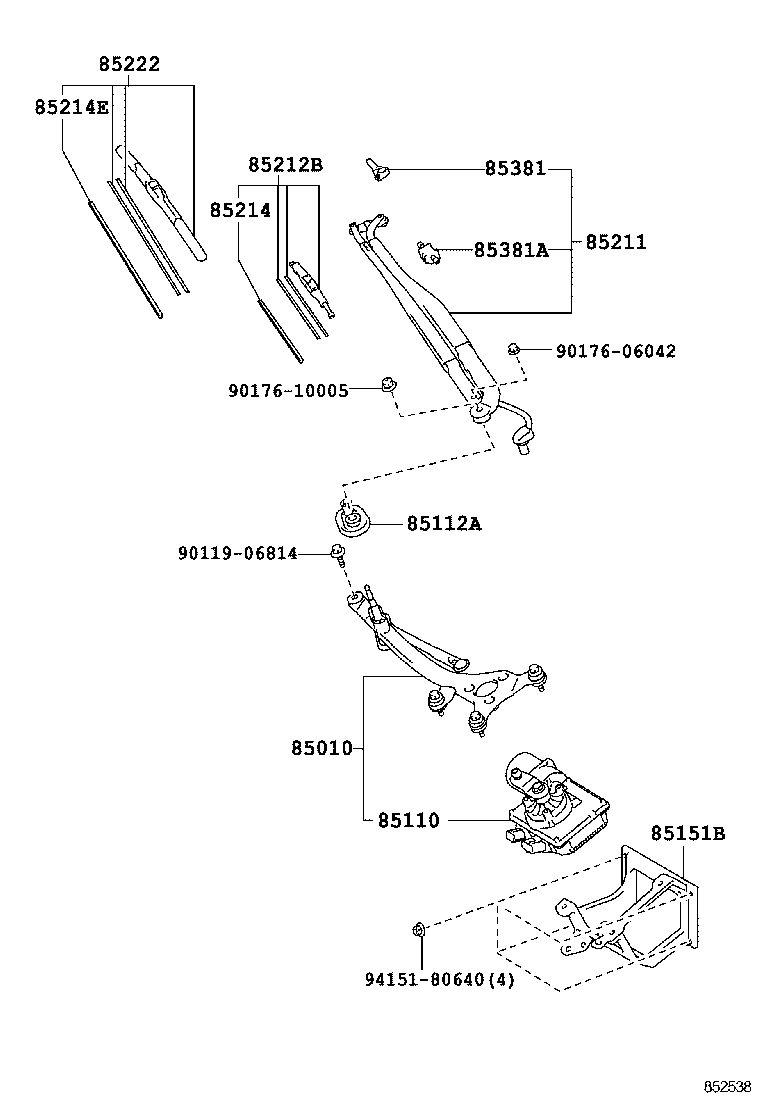

Click highlighted areas on diagram

diagram 85010 85110 85112A 85151B 85211 85212B 85214 85214E 85222 85381 85381A 9011906814 9017606042 9017610005 9415180640
Part # Description Qty Price
85010 - MOTOR & LINK ASSY, FR WIPER
85010-77010

LFA10

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-77010

LFA10

 1
85112A - COVER, WINDSHIELD WIPER SHAFT, NO.1
85112-77010

LFA10

 1
85151B - FRAME, FRONT WIPER LINK
85151-77010

LFA10

 1
85211 - ARM, FRONT WIPER
85221-77010

LFA10

 1
85212B - BLADE, FR WIPER, NO.1
85212-77010

LFA10

 1
85214 - RUBBER, WIPER BLADE, NO.1
85214-77010

LFA10

 1
85214E - RUBBER, WIPER BLADE, NO.2
85214-30380

LFA10

 1
85222 - BLADE, FR WIPER, NO.2
85222-50080

LFA10

 1
85381 - NOZZLE, FR WASHER, NO.1
85381-77010

LFA10

 1
85381A - NOZZLE, FR WASHER, NO.2
85381-77030

LFA10

 1
Common parts
90119-06814
90176-06042
90176-10005
94151-80640
