LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

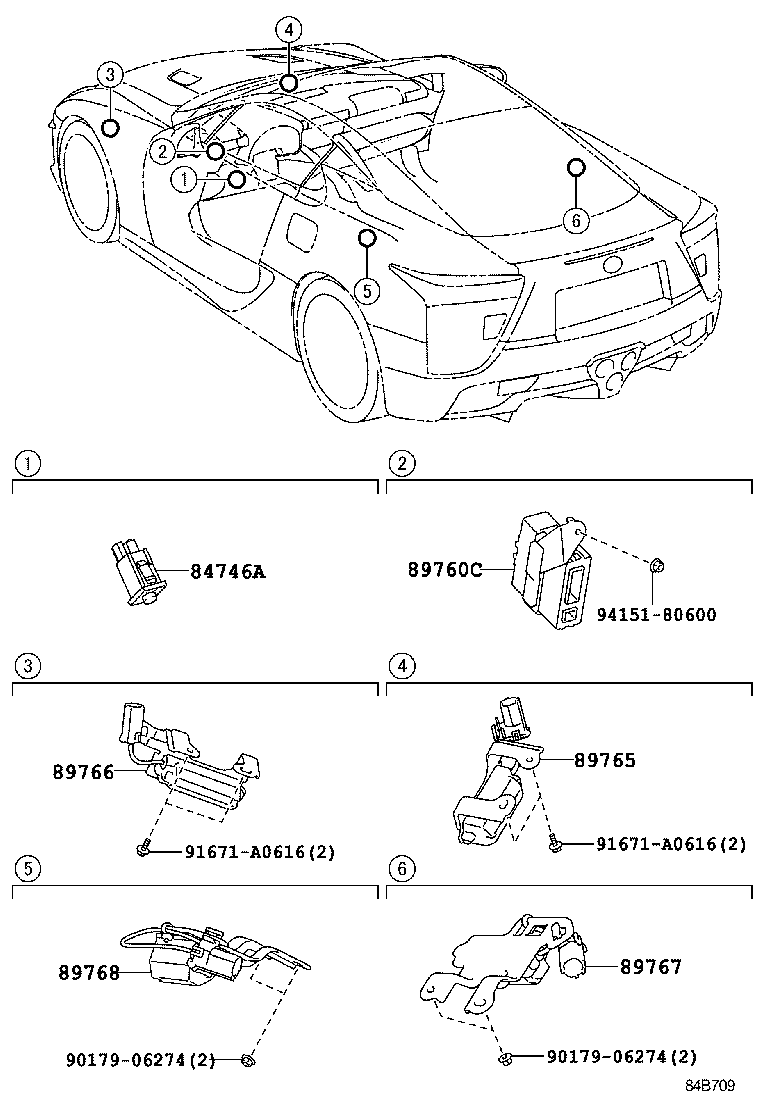

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84746A - SWITCH, TIRE PRESSURE WARNING, NO.1 | ||||
| 84746-48010 |
LFA10 |
1 | ||
| 89760C - RECEIVER ASSY, TIRE PRESSURE MONITOR | ||||
| 89760-77010 |
LFA10 |
1 | ||
| 89765 - ANTENNA, TIRE PRESSURE, FRONT RH | ||||
| 89765-77010 |
LFA10 |
1 | ||
| 89766 - ANTENNA, TIRE PRESSURE, FRONT LH | ||||
| 89766-77010 |
LFA10 |
1 | ||
| 89767 - ANTENNA, TIRE PRESSURE, REAR RH | ||||
| 89767-77010 |
LFA10 |
1 | ||
| 89768 - ANTENNA, TIRE PRESSURE, REAR LH | ||||
| 89768-77010 |
LFA10 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91671-A0616 | ||||
| 94151-80600 | ||||
