LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

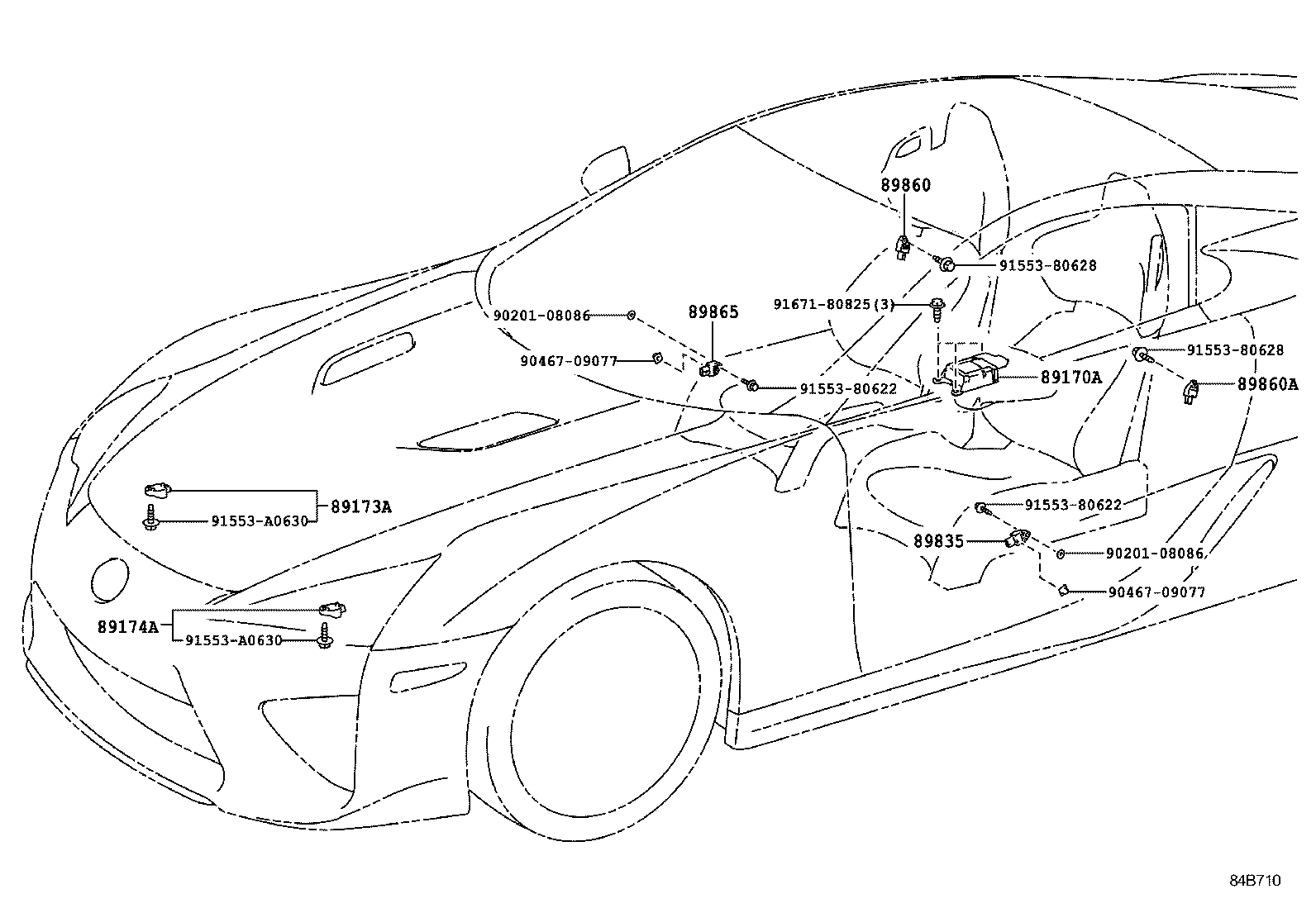

Click highlighted areas on diagram

diagram 89170A 89173A 89174A 89835 89860 89860A 89865 9020108086 9020108086 9046709077 9046709077 9155380622 9155380622 9155380628 9155380628 91553A0630 91553A0630 9167180825
Part # Description Qty Price
89170A - COMPUTER ASSY, AIR BAG
89170-77020

LFA10

 1
89170-77080

LFA10

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-79045

LFA10

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-79045

LFA10

 1
89835 - SENSOR, DOOR SIDE AIR BAG, LH
89831-60040

LFA10

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-75010

LFA10

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-75010

LFA10

 1
89865 - SENSOR, DOOR SIDE AIR BAG, RH
89831-60040

LFA10

 1
Common parts
90201-08086
90467-09077
91553-80622
91553-80628
91553-A0630
91671-80825
