LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

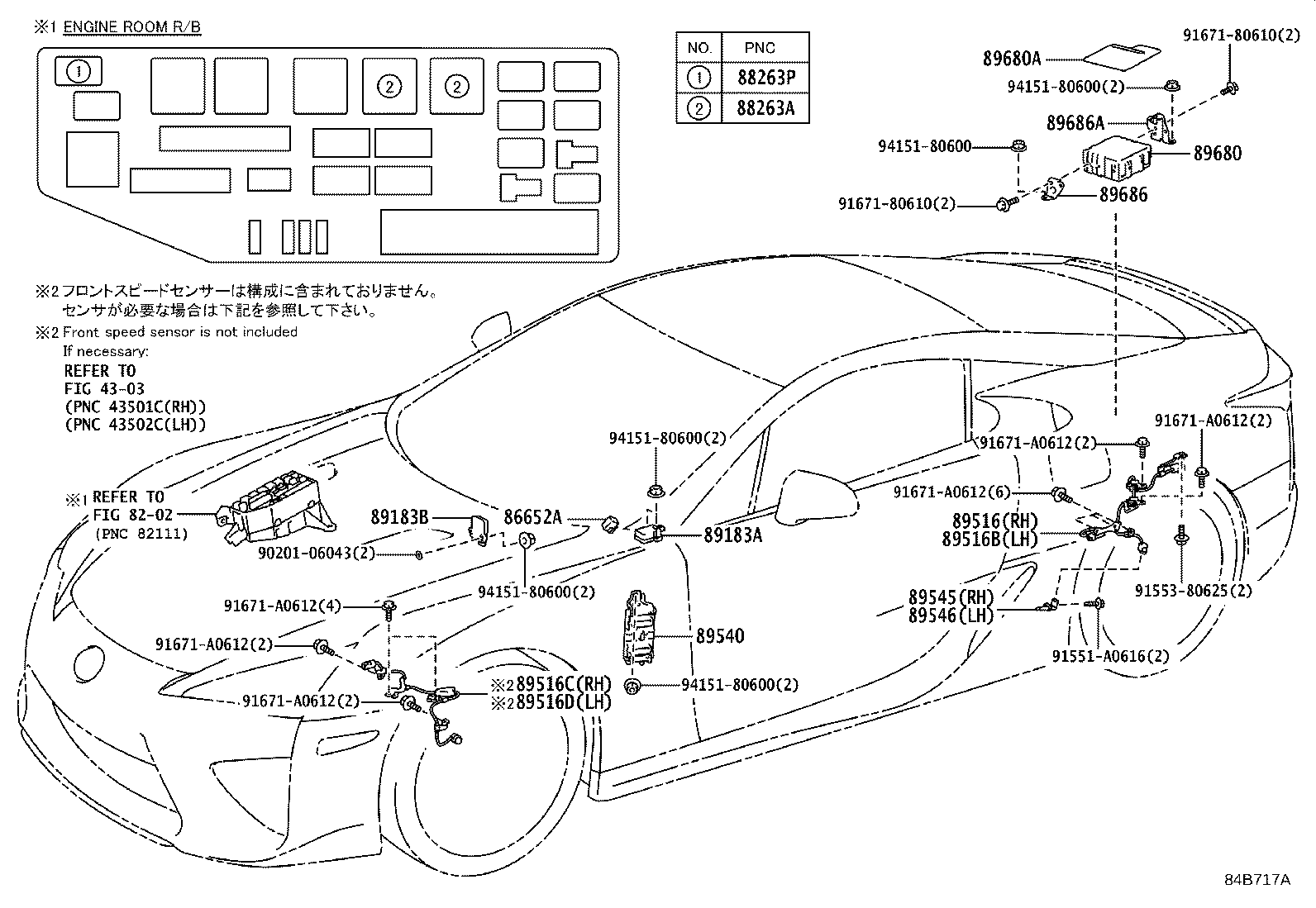

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86652A - BUZZER ASSY, SKID CONTROL | ||||
| 86652-50010 |
LFA10 |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-21010 |
LFA10 |
2 | ||
| 88263P - RELAY, STOP LAMP CONTROL | ||||
| 90987-04004 |
LFA10 |
1 | ||
| 89183A - SENSOR, YAWRATE | ||||
| 89183-50030 |
LFA10 |
1 | ||
| 89183B - SENSOR, YAWRATE | ||||
| 89183-77010 |
LFA10 |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-77030 |
LFA10 |
1 | ||
| 89516B - WIRE, SKID CONTROL SENSOR | ||||
| 89516-77040 |
LFA10 |
1 | ||
| 89516C - WIRE, SKID CONTROL SENSOR, RH | ||||
| 89516-77010 |
LFA10 |
1 | ||
| 89516D - WIRE, SKID CONTROL SENSOR, LH | ||||
| 89516-77020 |
LFA10 |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89540-77010 |
LFA10 |
1 | ||
| 89540-77011 |
LFA10 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-30070 |
LFA10 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-30070 |
LFA10 |
1 | ||
| 89680 - SUPPLY ASSY, BRAKE CONTROL POWER | ||||
| 89680-33010 |
LFA10 |
1 | ||
| 89680A - COVER, BRAKE CONTROL POWER SUPPLY | ||||
| F1971-77020 |
LFA10 |
1 | ||
| 89686 - BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1 | ||||
| 89686-50010 |
LFA10 |
1 | ||
| 89686A - BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1 | ||||
| 89686-77010 |
LFA10 |
1 | ||
| Common parts | ||||
| 90201-06043 | ||||
| 91551-A0616 | ||||
| 91553-80625 | ||||
| 91671-80610 | ||||
| 91671-A0612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4303 | ||||
| 8202 | ||||
