LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

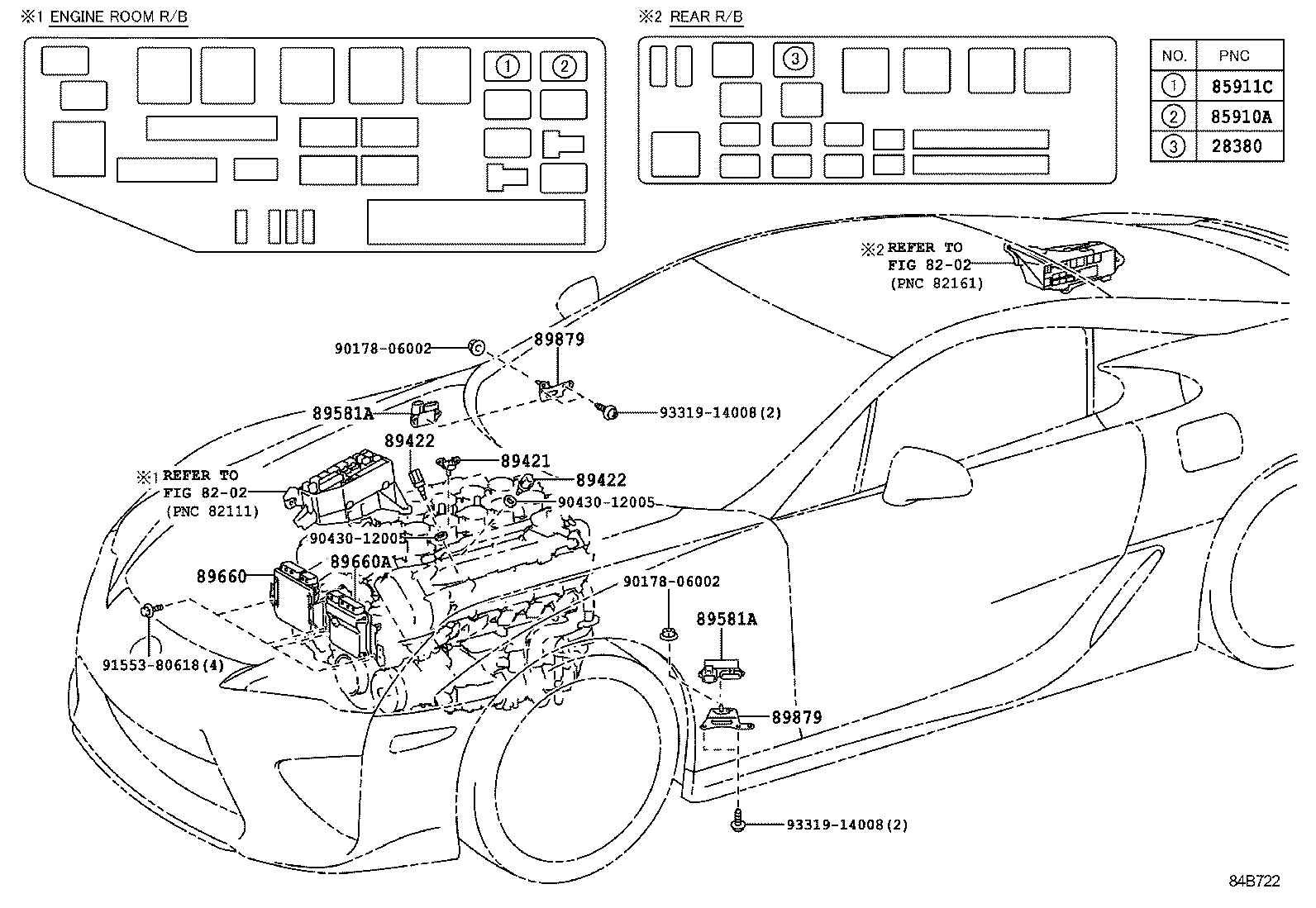

Click highlighted areas on diagram

diagram 28380 8202 8202 85910A 85911C 89421 89422 89422 89581A 89581A 89660 89660A 89879 89879 9017806002 9017806002 9043012005 9043012005 9155380618 9331914008 9331914008
Part # Description Qty Price
28380 - RELAY ASSY, FUEL PUMP
90987-04004

1LRGUE..LFA10

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02027

LFA10

 1
85911C - RELAY, EFI 2
90987-02027

LFA10

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-77010

LFA10

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

LFA10

 2
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

LFA10

 2
89581A - DRIVER, AIR INJECTION CONTROL
89581-60010

LFA10

 2
89581A - DRIVER, AIR INJECTION CONTROL
89581-60010

LFA10

 2
89660 - COMPUTER ASSY, ENGINE CONTROL
89660-77010

LFA10

 1
89660-77011

LFA10

 1
89660A - COMPUTER ASSY, ENGINE CONTROL
89660-77021

LFA10

 1
89660-77022

LFA10

 1
89660-77020

LFA10

 1
89879 - BRACKET, INJECTOR DRIVER
89589-25010

LFA10

 2
89879 - BRACKET, INJECTOR DRIVER
89589-25010

LFA10

 2
Common parts
90178-06002
90430-12005
91553-80618
93319-14008
Linked diagrams
8202
