LFA10L-FCRAFA (2010)
Toyota Lexus Lfa

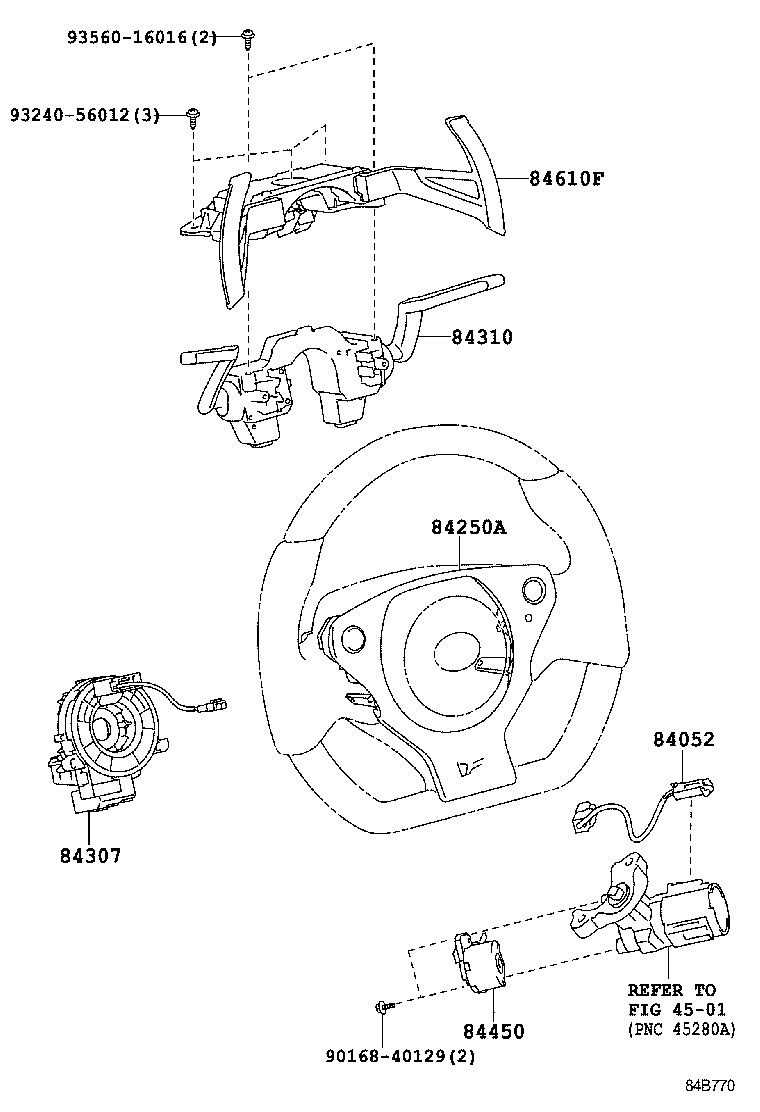

ILLUST NO. 5 OF 7(1012- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-32030 |
LFA10 |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-77010C0 |
LFA10 BROWNISH BLACK,TRIM20 |
1 | ||
| 84250-77010B0 |
LFA10 SILVER 3/TP-40 TI,TRIM20 |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-77010 |
LFA10 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-77010B0 |
LFA10 SILVER 3/TP-40 TI,TRIM20 |
1 | ||
| 84310-77010C0 |
LFA10 BROWNISH BLACK,TRIM20 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
LFA10 |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-77010 |
LFA10 |
1 | ||
| Common parts | ||||
| 90168-40129 | ||||
| 93240-56012 | ||||
| 93560-16016 | ||||
| Linked diagrams | ||||
| 4501 | ||||

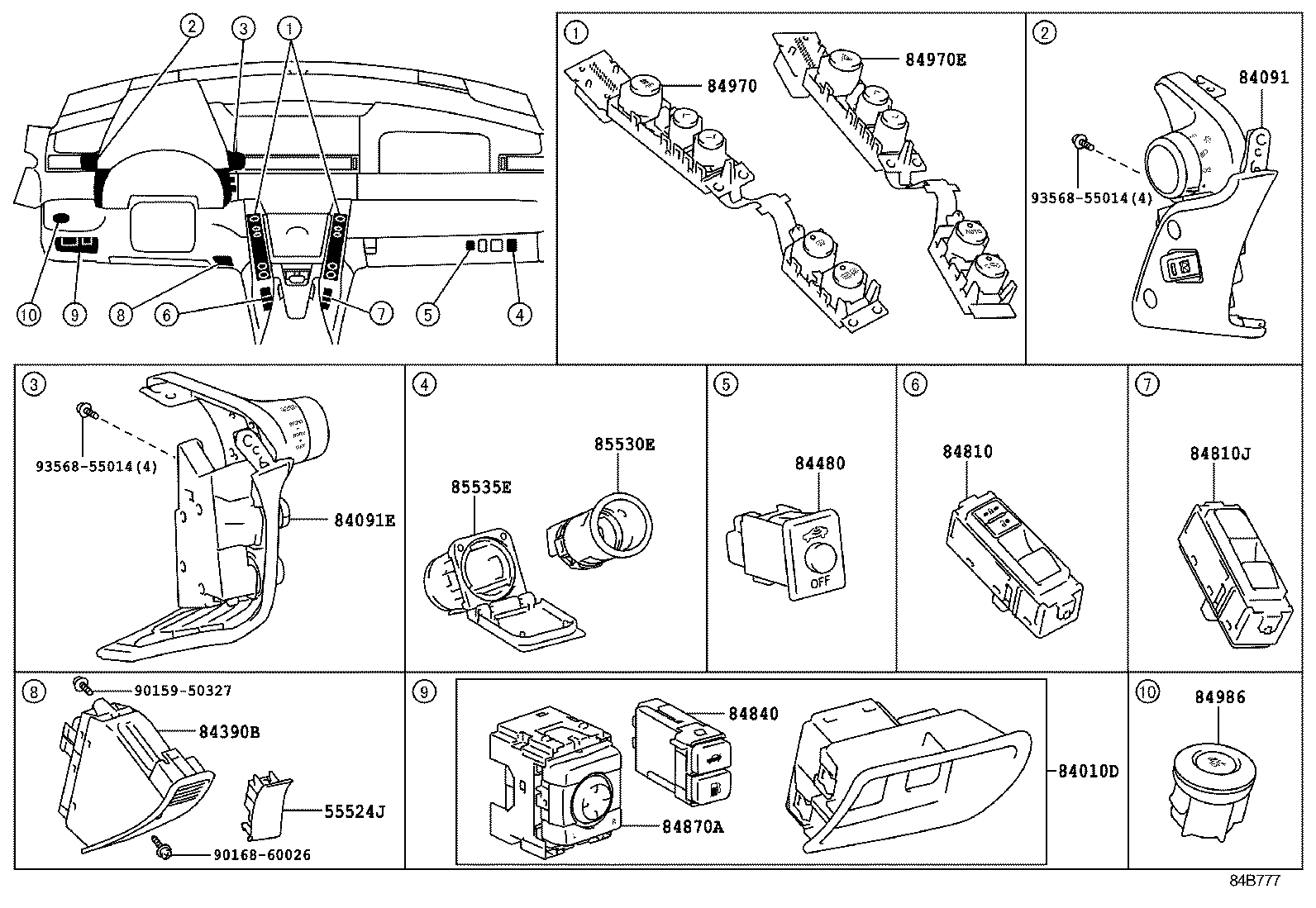

ILLUST NO. 4 OF 7(1012- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55524J - COVER, SWITCH BASE HOLE | ||||
| 55539-77010 |
LFA10 |
1 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-77010 |
LFA10 |
1 | ||
| 84091 - SWITCH SET, SATELLITE | ||||
| 84091-77030C0 |
LFA10 INSTRUMENT PANEL-LEATHER & CARBON,BLACK/SILVER,TRIM20 |
1 | ||
| 84091-77060C2 |
LFA10 BLACK/BROWNISH,TRIM20 |
1 | ||
| 84091-77060C3 |
LFA10 BLACK/SILVER,TRIM20 |
1 | ||
| 84091-77030C2 |
LFA10 INSTRUMENT PANEL-LEATHER & CARBON,BLACK/BROWNISH,TRIM20 |
1 | ||
| 84091E - SWITCH SET, SATELLITE NO.2 | ||||
| 84091-77050C3 |
LFA10 BLACK/SILVER,TRIM20 |
1 | ||
| 84091-77050C2 |
LFA10 BLACK/BROWNISH,TRIM20 |
1 | ||
| 84091-77020C0 |
LFA10 INSTRUMENT PANEL-LEATHER & CARBON,BLACK/SILVER,TRIM20 |
1 | ||
| 84091-77020C2 |
LFA10 INSTRUMENT PANEL-LEATHER & CARBON,BLACK/BROWNISH,TRIM20 |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-77010 |
LFA10 |
1 | ||
| 84480 - SWITCH ASSY, MAIN | ||||
| 84480-77010 |
LFA10 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-77010 |
LFA10 |
1 | ||
| 84810J - SWITCH ASSY, POWER WINDOW REGULATOR NO.2 | ||||
| 84810-77020 |
LFA10 |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-77010 |
LFA10 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-75040 |
LFA10 |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-77010 |
LFA10 |
1 | ||
| 84970E - SWITCH ASSY, COMBINATION NO.2 | ||||
| 84970-77020 |
LFA10 |
1 | ||
| 84986 - SWITCH, VEHICLE STABILITY CONTROL | ||||
| 84986-77010B0 |
LFA10 SILVER 3/TP-40 TI,TRIM20 |
1 | ||
| 84986-77010C0 |
LFA10 BROWNISH BLACK,TRIM20 |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
LFA10 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-50030 |
LFA10 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90168-60026 | ||||
| 93568-55014 | ||||

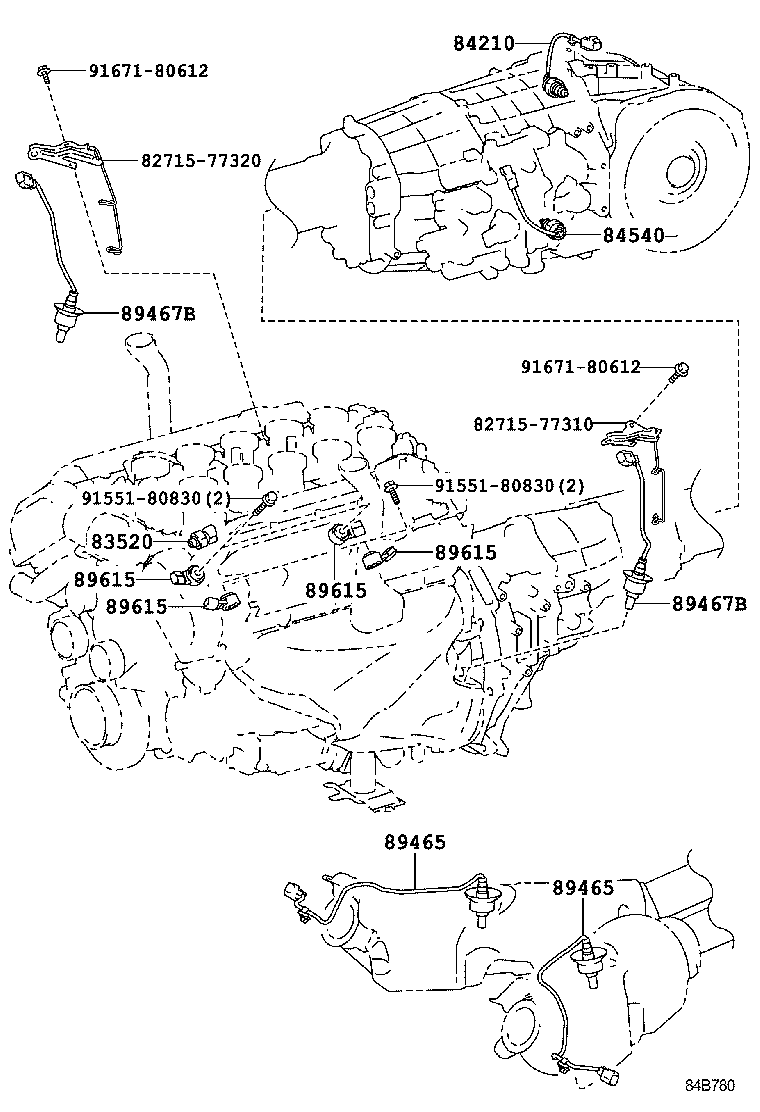

ILLUST NO. 1 OF 7(1012- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60060 |
LFA10 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-77010 |
LFA10 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-77010 |
LFA10 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-77010 |
LFA10 |
2 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-77010 |
LFA10 |
2 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-77010 |
LFA10 |
2 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-77010 |
LFA10 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
LFA10 |
4 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
LFA10 |
4 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
LFA10 |
4 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
LFA10 |
4 | ||
| Common parts | ||||
| 82715-77310 | ||||
| 82715-77320 | ||||
| 91551-80830 | ||||
| 91671-80612 | ||||

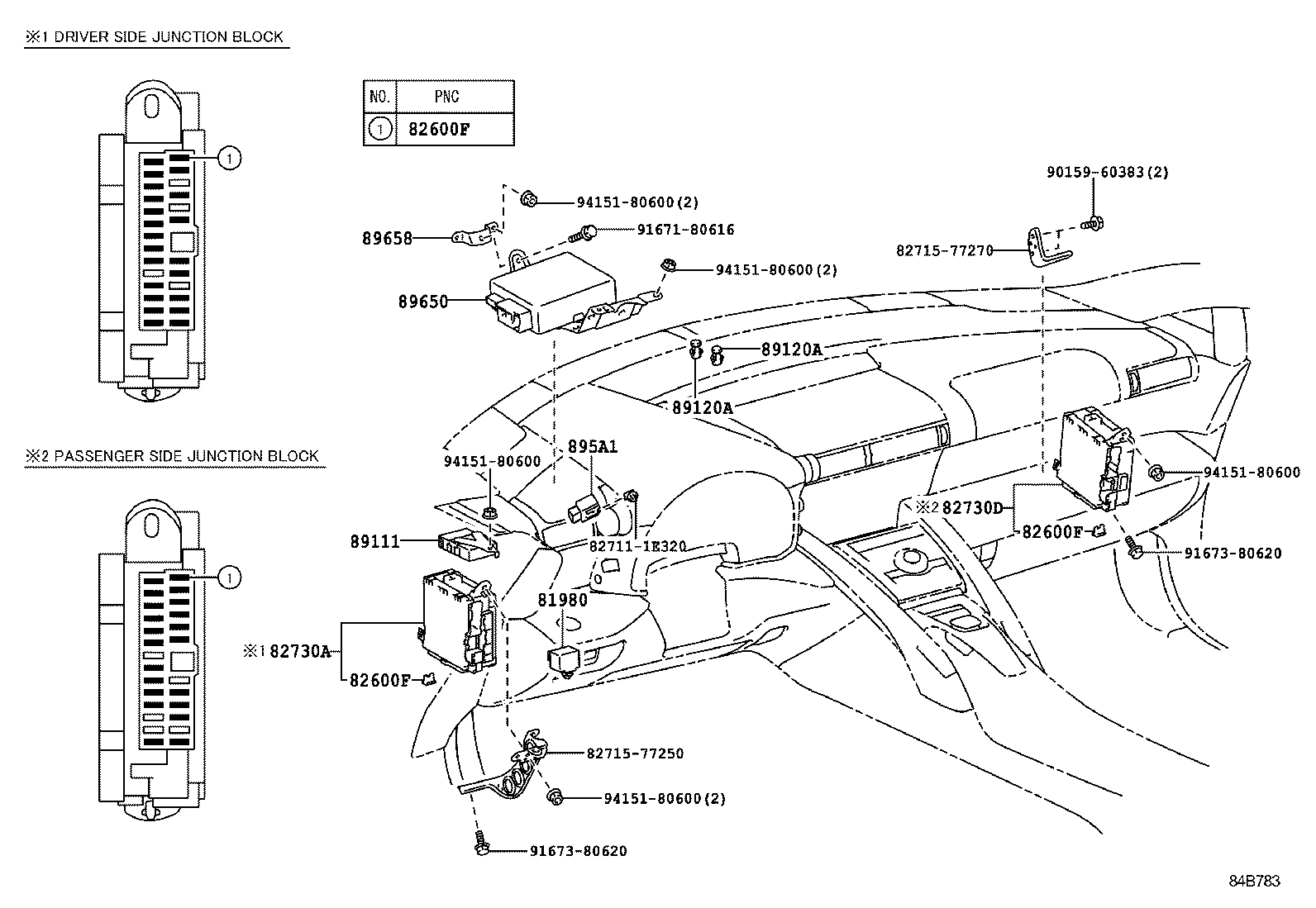

ILLUST NO. 3 OF 7(1012- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-30170 |
LFA10 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
LFA10 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
LFA10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
LFA10 5A,MINI FUSE,TAN,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 90982-09019 |
LFA10 5A,MINI FUSE,TAN,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09019 |
LFA10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
LFA10 10A,MINI FUSE,RED,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09025 |
LFA10 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
LFA10 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
LFA10 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09023 |
LFA10 20A,MINI FUSE,YELLOW,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 90982-09025 |
LFA10 30A,MINI FUSE,GRN,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09023 |
LFA10 20A,MINI FUSE,YELLOW,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09024 |
LFA10 25A,MINI FUSE |
1 | ||
| 90982-09025 |
LFA10 30A,MINI FUSE,GRN,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 90982-09024 |
LFA10 25A,MINI FUSE,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09021 |
LFA10 10A,MINI FUSE,RED,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 90982-09024 |
LFA10 25A,MINI FUSE,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
LFA10 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
LFA10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
LFA10 5A,MINI FUSE,TAN,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 90982-09019 |
LFA10 5A,MINI FUSE,TAN,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09019 |
LFA10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
LFA10 10A,MINI FUSE,RED,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09025 |
LFA10 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
LFA10 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
LFA10 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09023 |
LFA10 20A,MINI FUSE,YELLOW,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 90982-09025 |
LFA10 30A,MINI FUSE,GRN,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09023 |
LFA10 20A,MINI FUSE,YELLOW,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09024 |
LFA10 25A,MINI FUSE |
1 | ||
| 90982-09025 |
LFA10 30A,MINI FUSE,GRN,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 90982-09024 |
LFA10 25A,MINI FUSE,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09021 |
LFA10 10A,MINI FUSE,RED,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 90982-09024 |
LFA10 25A,MINI FUSE,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
LFA10 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
LFA10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
LFA10 5A,MINI FUSE,TAN,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 90982-09019 |
LFA10 5A,MINI FUSE,TAN,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09019 |
LFA10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
LFA10 10A,MINI FUSE,RED,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09025 |
LFA10 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
LFA10 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
LFA10 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09023 |
LFA10 20A,MINI FUSE,YELLOW,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 90982-09025 |
LFA10 30A,MINI FUSE,GRN,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09023 |
LFA10 20A,MINI FUSE,YELLOW,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09024 |
LFA10 25A,MINI FUSE |
1 | ||
| 90982-09025 |
LFA10 30A,MINI FUSE,GRN,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 90982-09024 |
LFA10 25A,MINI FUSE,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09021 |
LFA10 10A,MINI FUSE,RED,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 90982-09024 |
LFA10 25A,MINI FUSE,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-77040 |
LFA10 CANADA SPEC |
1 | ||
| 82730-77050 |
LFA10 |
1 | ||
| 82730D - BLOCK ASSY, PASSENGER SIDE JUNCTION | ||||
| 82730-77020 |
LFA10 |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-77010 |
LFA10 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-50020 |
LFA10 |
2 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-50020 |
LFA10 |
2 | ||
| 895A1 - RELAY, STOP LAMP CONTROL | ||||
| 895A1-12010 |
LFA10 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-77020 |
LFA10 |
1 | ||
| 89658 - BRACKET, POWER STEERING COMPUTER | ||||
| 89658-77010 |
LFA10 |
1 | ||
| Common parts | ||||
| 82711-1E320 | ||||
| 82715-77250 | ||||
| 82715-77270 | ||||
| 90159-60383 | ||||
| 91671-80616 | ||||
| 91673-80620 | ||||
| 94151-80600 | ||||

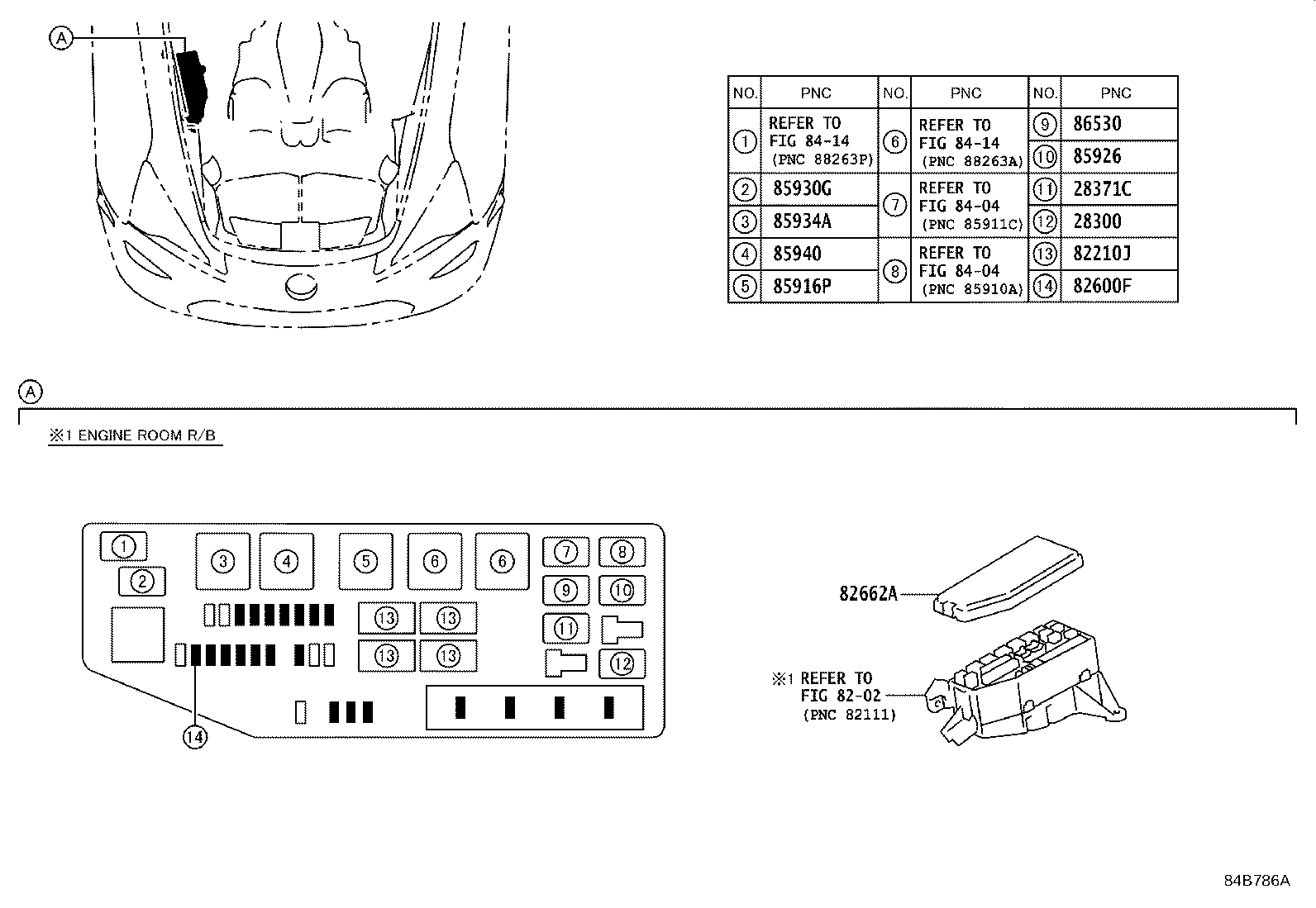

ILLUST NO. 2 OF 7(1012- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1LRGUE..LFA10 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
1LRGUE..LFA10 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08302 |
LFA10 50A-30A-50A,FEMALE |
1 | ||
| 90982-08300 |
LFA10 50A-30A-30A,FEMALE |
1 | ||
| 90982-08299 |
LFA10 40A-40A-40A,FEMALE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
LFA10 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
LFA10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
LFA10 5A,MINI FUSE,TAN,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 90982-09019 |
LFA10 5A,MINI FUSE,TAN,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09019 |
LFA10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
LFA10 10A,MINI FUSE,RED,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09025 |
LFA10 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
LFA10 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
LFA10 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09023 |
LFA10 20A,MINI FUSE,YELLOW,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 90982-09025 |
LFA10 30A,MINI FUSE,GRN,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09023 |
LFA10 20A,MINI FUSE,YELLOW,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09024 |
LFA10 25A,MINI FUSE |
1 | ||
| 90982-09025 |
LFA10 30A,MINI FUSE,GRN,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 90982-09024 |
LFA10 25A,MINI FUSE,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09021 |
LFA10 10A,MINI FUSE,RED,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 90982-09024 |
LFA10 25A,MINI FUSE,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-77010 |
LFA10 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
LFA10 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02027 |
LFA10 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-04004 |
LFA10 |
1 | ||
| 85934A - RELAY CONDENSER FAN | ||||
| 90987-02025 |
LFA10 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 90987-02025 |
LFA10 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
LFA10 |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||

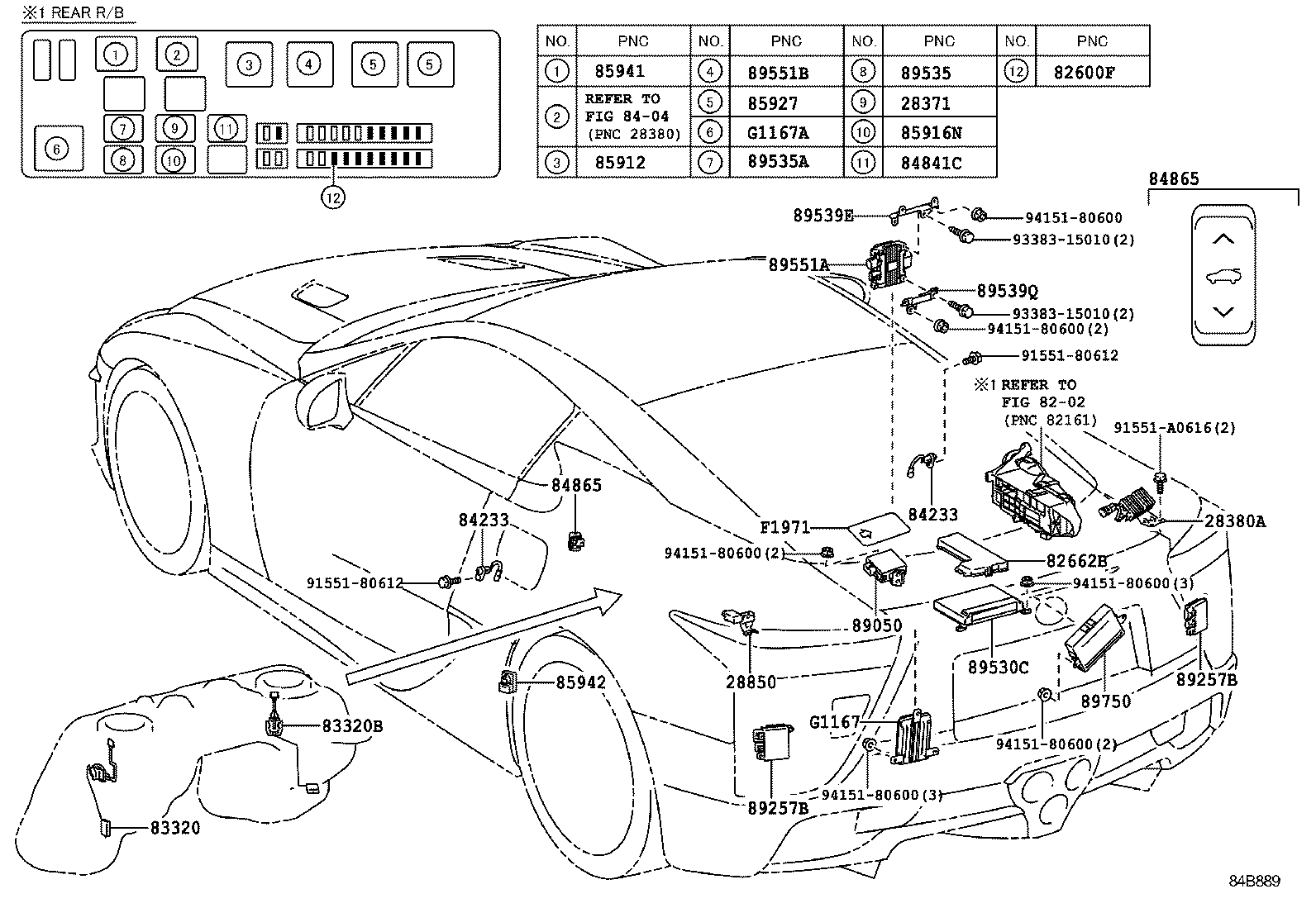

ILLUST NO. 7 OF 7(1012- )
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02027 |
1LRGUE..LFA10 |
1 | ||
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-45010 |
1LRGUE..LFA10 |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-38010 |
1LRGUE..LFA10 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
LFA10 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
LFA10 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
LFA10 5A,MINI FUSE,TAN,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 90982-09019 |
LFA10 5A,MINI FUSE,TAN,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09019 |
LFA10 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
LFA10 10A,MINI FUSE,RED,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09025 |
LFA10 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
LFA10 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
LFA10 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09023 |
LFA10 20A,MINI FUSE,YELLOW,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 90982-09025 |
LFA10 30A,MINI FUSE,GRN,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09023 |
LFA10 20A,MINI FUSE,YELLOW,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09024 |
LFA10 25A,MINI FUSE |
1 | ||
| 90982-09025 |
LFA10 30A,MINI FUSE,GRN,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 90982-09024 |
LFA10 25A,MINI FUSE,REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 90982-09021 |
LFA10 10A,MINI FUSE,RED,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 90982-09024 |
LFA10 25A,MINI FUSE,REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-77020 |
LFA10 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-77010 |
LFA10 |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-77020 |
LFA10 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-77010 |
LFA10 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-77010 |
LFA10 |
2 | ||
| 84841C - RELAY, FUEL LID OPENER | ||||
| 90987-02027 |
LFA10 |
1 | ||
| 84865 - SWITCH, SPOILER CONTROL | ||||
| 84865-77010 |
LFA10 REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 84865-77010 |
LFA10 |
1 | ||
| 84865-77010 |
LFA10 REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 84865 - SWITCH, SPOILER CONTROL | ||||
| 84865-77010 |
LFA10 REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 84865-77010 |
LFA10 |
1 | ||
| 84865-77010 |
LFA10 REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
LFA10 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02027 |
LFA10 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
LFA10 |
2 | ||
| 85941 - RELAY, WINDSHIELD WASHER | ||||
| 90987-02027 |
LFA10 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-20031 |
LFA10 HEAD LAMP CLEANER-WITH |
1 | ||
| 89050 - COMPUTER ASSY, PARKING BRAKE | ||||
| 89050-77010 |
LFA10 |
1 | ||
| 89257B - COMPUTER, COOLING FAN, NO.2 | ||||
| 89257-26020 |
LFA10 |
2 | ||
| 89257B - COMPUTER, COOLING FAN, NO.2 | ||||
| 89257-26020 |
LFA10 |
2 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89535-77020 |
LFA10 |
1 | ||
| 89535 - RELAY, AUTOMATIC SEQUENTIAL GEARBOX SOLENOID | ||||
| 90987-02027 |
LFA10 |
1 | ||
| 89535A - RELAY, AUTOMATIC SEQUENTIAL GEARBOX IGNITION, NO.2 | ||||
| 90987-02027 |
LFA10 |
1 | ||
| 89539E - BRACKET, COMPUTER | ||||
| 89539-77010 |
LFA10 |
1 | ||
| 89539Q - BRACKET, COMPUTER | ||||
| 89539-77040 |
LFA10 |
1 | ||
| 89551A - DRIVER, SEQUENTIAL TRANS PUMP MOTOR | ||||
| 89551-77010 |
LFA10 |
1 | ||
| 89551B - RELAY, HYDRAULIC POWER UNIT | ||||
| 90987-02025 |
LFA10 |
1 | ||
| 89750 - COMPUTER ASSY, SPOILER CONTROL | ||||
| 89750-77010 |
LFA10 |
1 | ||
| 89750-77010 |
LFA10 REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 89750-77010 |
LFA10 REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| F1971 - COVER, ECU WATER PROOF | ||||
| F1971-77010 |
LFA10 |
1 | ||
| G1167 - CONTROLLER, OIL PUMP MOTOR | ||||
| G1167-77010 |
LFA10 |
1 | ||
| G1167A - RELAY (FOR OIL PUMP MOTOR) | ||||
| 90987-02025 |
LFA10 |
1 | ||
| Common parts | ||||
| 91551-80612 | ||||
| 91551-A0616 | ||||
| 93383-15010 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||

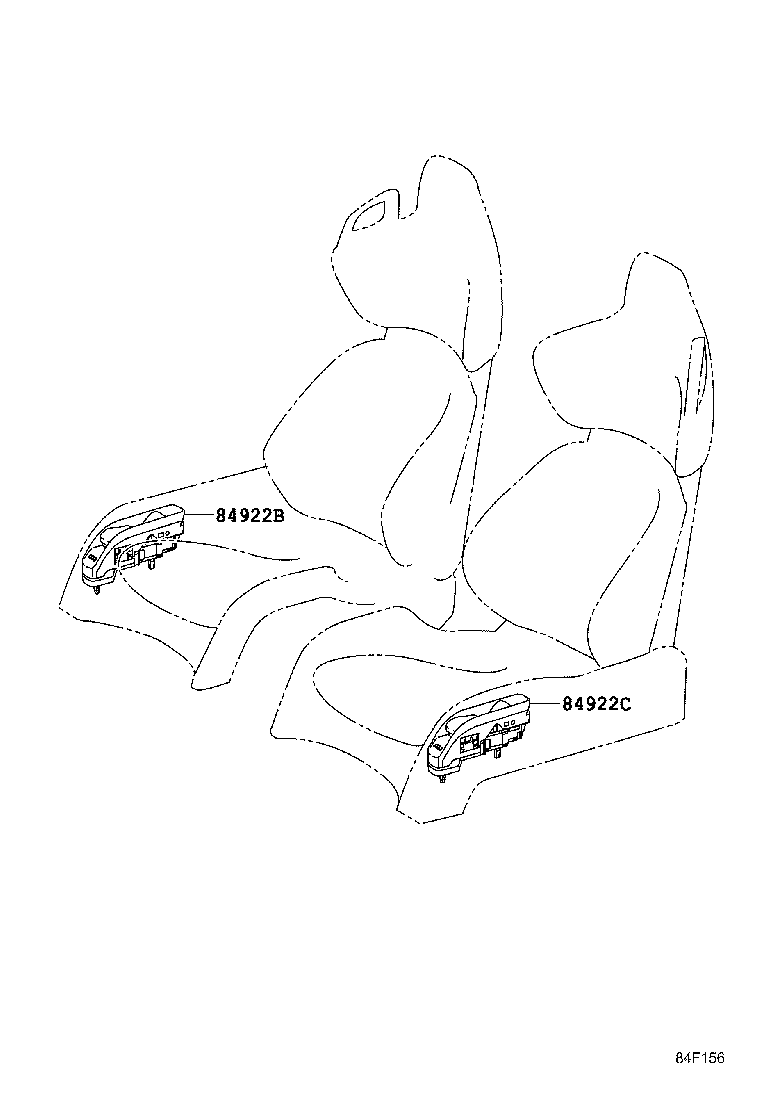

ILLUST NO. 6 OF 7(1012- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-77010C0 |
LFA10 BROWNISH BLACK,TRIM20 |
1 | ||
| 84922-77010B0 |
LFA10 SATIN SILVER,TRIM20 |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-77010C0 |
LFA10 BROWNISH BLACK,TRIM20 |
1 | ||
| 84922-77010B0 |
LFA10 SATIN SILVER,TRIM20 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
