LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

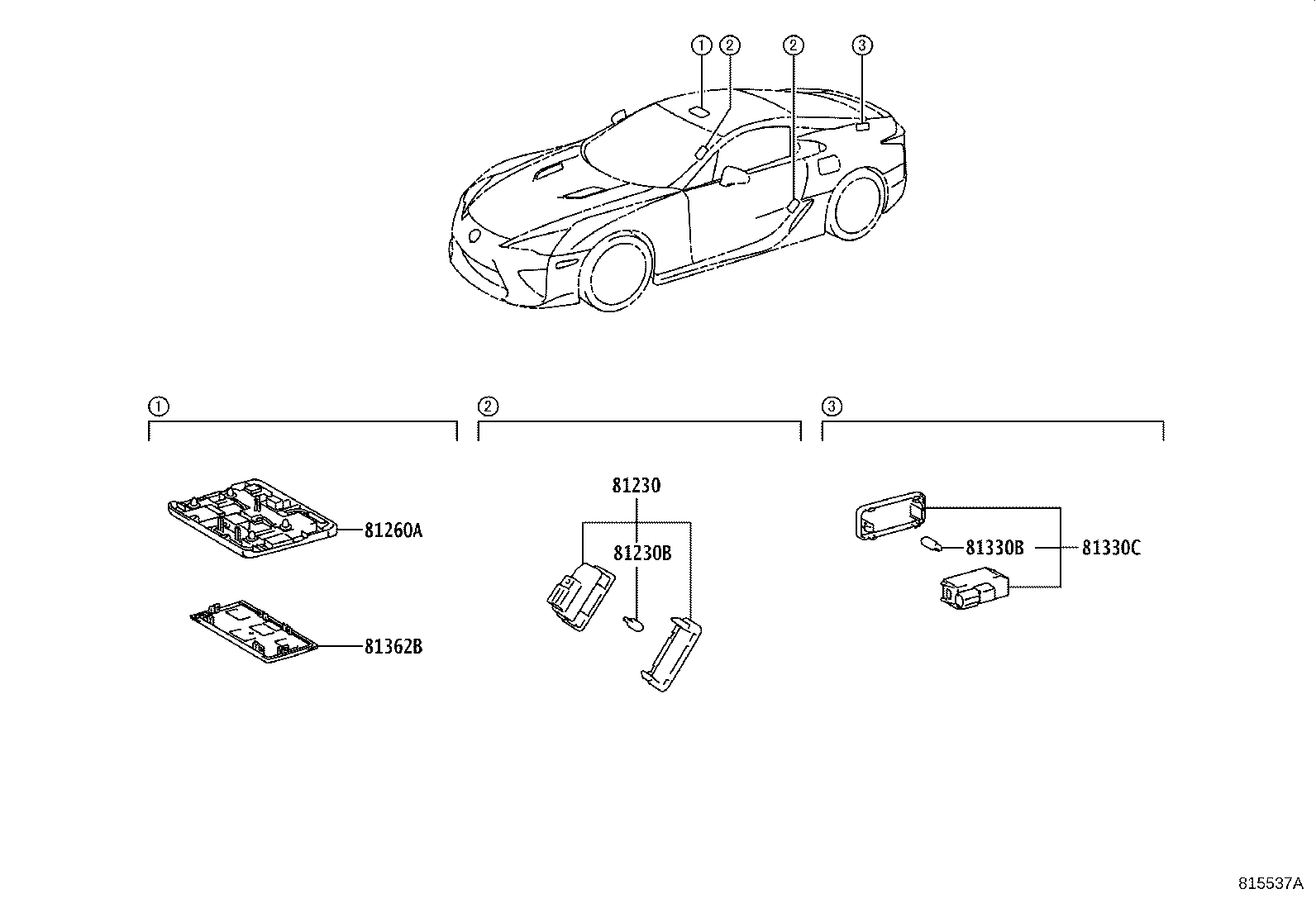

Click highlighted areas on diagram

diagram 81230 81230B 81260A 81330B 81330C 81362B
Part # Description Qty Price
81230 - LAMP ASSY, COURTESY
81230-77010

LFA10

 2
81230B - BULB(FOR COURTESY LAMP)
90981-11020

LFA10

12V 3.8W

 2
81260A - LAMP ASSY, MAP
81260-77010

LFA10

AUDIO-MARK LEVINSON 12SPEAKER&MAYDAY SYSTEM-W(LEXUS ENFORM)

 1
81260-77030

LFA10

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

LFA10

12V 3.8W

 1
81330C - LAMP ASSY, LUGGAGE COMPARTMENT
81230-30140

LFA10

 1
81362B - LENS, INTERIOR ILLUMINATION LAMP
81362-77020

LFA10

 1
81362-77010

LFA10

AUDIO-MARK LEVINSON 12SPEAKER&MAYDAY SYSTEM-W(LEXUS ENFORM)

 1
