LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

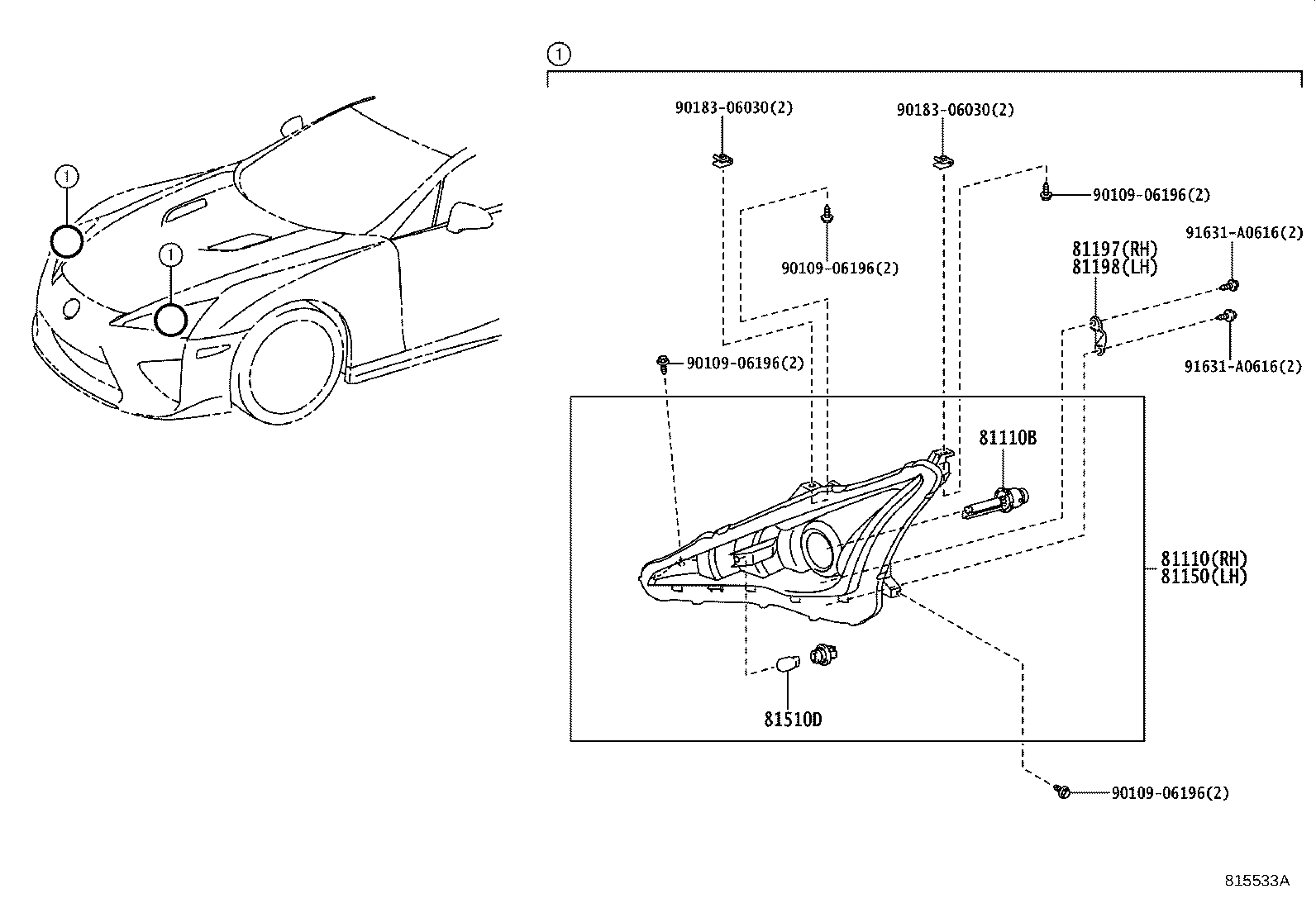

Click highlighted areas on diagram

diagram 81110 81110B 81150 81197 81198 81510D 9010906196 9010906196 9010906196 9010906196 9018306030 9018306030 91631A0616 91631A0616
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-77010

LFA10

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-20024

LFA10

42V 35W

 2
81150 - HEADLAMP ASSY, LH
81150-77010

LFA10

 1
81197 - BRACKET, HEADLAMP, LOWER RH
81197-77010

LFA10

 1
81198 - BRACKET, HEADLAMP, LWR LH
81198-77010

LFA10

 1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021

LFA10

12V 21W,AMBER

 2
Common parts
90109-06196
90183-06030
91631-A0616
