LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

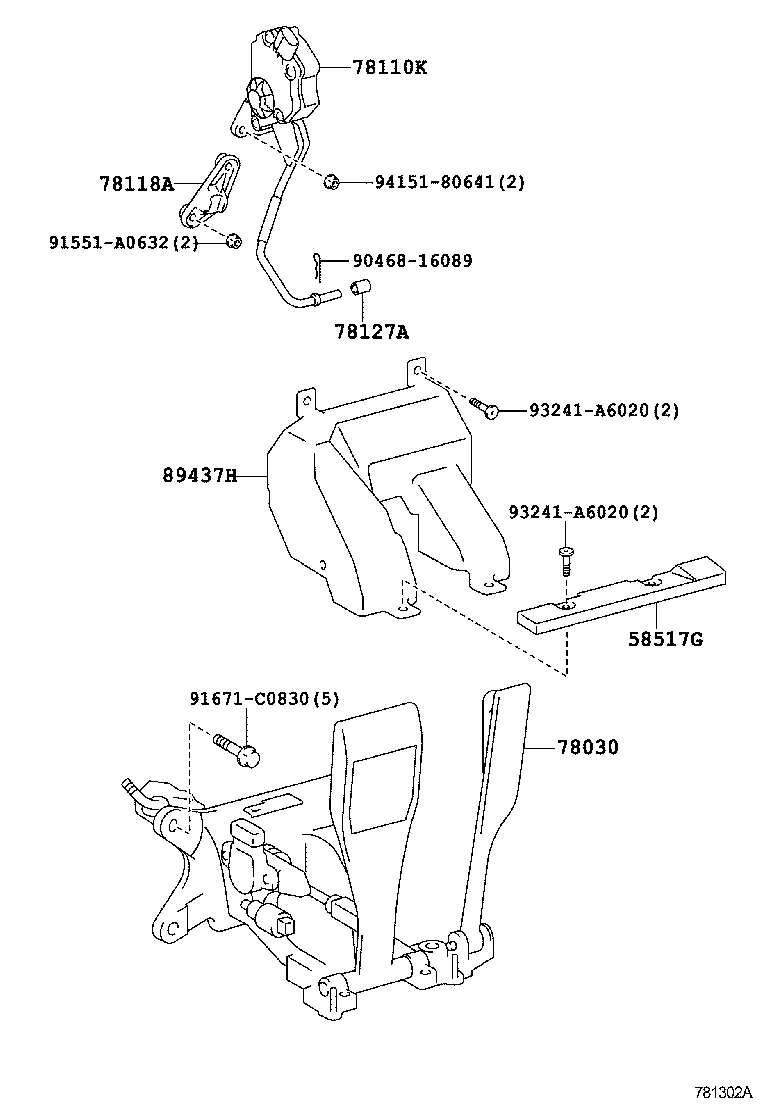

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58517G - PAD, HEEL | ||||
| 58517-77010 |
LFA10 |
1 | ||
| 78030 - PEDAL ASSY, ACCELERATOR & BRAKE | ||||
| 47110-77010 |
LFA10 |
1 | ||
| 78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR) | ||||
| 78110-77010 |
LFA10 |
1 | ||
| 78118A - STOPPER, ACCELERATOR PEDAL | ||||
| 78118-77010 |
LFA10 |
1 | ||
| 78127A - BUSH, ACCELERATOR PEDAL TO ROD | ||||
| 78127-77010 |
LFA10 |
1 | ||
| 89437H - COVER, SENSOR | ||||
| 89437-77020 |
LFA10 |
1 | ||
| Common parts | ||||
| 90468-16089 | ||||
| 91551-A0632 | ||||
| 91671-C0830 | ||||
| 93241-A6020 | ||||
| 94151-80641 | ||||
