LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 3(1012- )
Click highlighted areas on diagram
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75259A - HOSE, FUEL | ||||
| 77259-77010 |
LFA10 |
1 | ||
| 77228 - TUBE, FUEL TANK EVAPORATION VENT, NO.2 | ||||
| 77228-77010 |
LFA10 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-12110 |
LFA10 |
1 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-77010 |
LFA10 |
4 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-77010 |
LFA10 |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-77010 |
LFA10 |
1 | ||
| 77262 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77262-77010 |
LFA10 |
1 | ||
| 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 | ||||
| 77263-77010 |
LFA10 |
1 | ||
| 77264 - TUBE, CANISTER TO FRONT SIDE MEMBER | ||||
| 77264-77010 |
LFA10 |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-77010 |
LFA10 |
1 | ||
| 77279G - HOSE, FUEL, NO.2 | ||||
| 77279-77010 |
LFA10 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77229-50080 |
LFA10 |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-77010 |
LFA10 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-77010 |
LFA10 |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-77010 |
LFA10 |
1 | ||
| 77288A - SUPPORT, TANK TO CANISTER TUBE, NO.2 | ||||
| 77288-77010 |
LFA10 |
3 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-77010 |
LFA10 |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-77010 |
LFA10 |
2 | ||
| 77409 - HOSE SUB-ASSY, FUEL, NO.3 | ||||
| 77409-77010 |
LFA10 |
1 | ||
| 77701W - HOSE SUB-ASSY, CANISTER OUTLET, NO.1 | ||||
| 77701-77010 |
LFA10 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-77010 |
LFA10 |
1 | ||
| Common parts | ||||
| 91671-A0622 | ||||
| 93241-A6020 | ||||
| 94151-80640 | ||||
| 94151-80840 | ||||
| 96133-41500 | ||||
| 96136-41801 | ||||

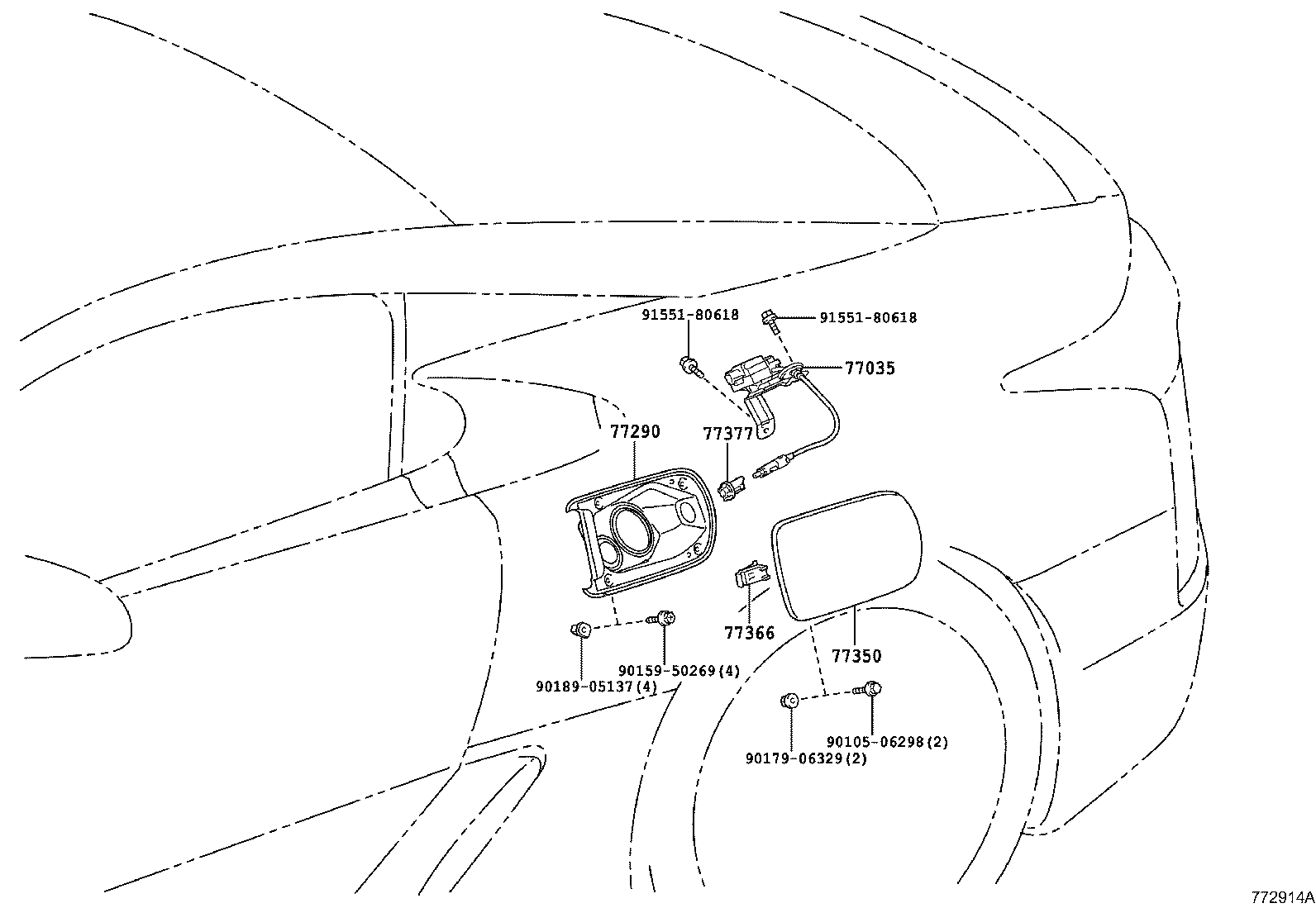

ILLUST NO. 3 OF 3(1012- )
Click highlighted areas on diagram
FUEL LID
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77030-77010 |
LFA10 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-77010 |
LFA10 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-77020B1 |
LFA10 GRAY |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30070 |
LFA10 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-77010 |
LFA10 |
1 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 90159-50269 | ||||
| 90179-06329 | ||||
| 90189-05137 | ||||
| 91551-80618 | ||||
ILLUST NO. 1 OF 3(1012- )
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23220C - PUMP ASSY, FUEL W/FILTER NO.1 | ||||
| 23220-45010 |
1LRGUE..LFA10 |
1 | ||
| 23220D - PUMP ASSY, FUEL W/FILTER NO.2 | ||||
| 23220-45020 |
1LRGUE..LFA10 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-23010 |
LFA10 |
2 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-23010 |
LFA10 |
2 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
1LRGUE..LFA10 NO.2 |
1 | ||
| 90301-11025 |
1LRGUE..LFA10 NO.4 |
1 | ||
| 90301-04013 |
1LRGUE..LFA10 NO.1 |
1 | ||
| 90301-08020 |
1LRGUE..LFA10 NO.3 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
1LRGUE..LFA10 NO.2 |
1 | ||
| 90301-11025 |
1LRGUE..LFA10 NO.4 |
1 | ||
| 90301-04013 |
1LRGUE..LFA10 NO.1 |
1 | ||
| 90301-08020 |
1LRGUE..LFA10 NO.3 |
1 | ||
| 77001A - TANK SUB-ASSY, FUEL | ||||
| 77001-77010 |
LFA10 |
1 | ||
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-77010 |
LFA10 |
1 | ||
| 77016H - TUBE SUB-ASSY, FUEL RETURN VENT | ||||
| 77016-77011 |
LFA10 |
1 | ||
| 77016-77010 |
LFA10 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-77010 |
LFA10 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-52040 |
LFA10 |
2 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-52040 |
LFA10 |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-77010 |
LFA10 |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-77010 |
LFA10 |
2 | ||
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-77010 |
LFA10 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-77010 |
LFA10 |
1 | ||
| 77214 - PIPE, FUEL TANK FILLER | ||||
| 77210-77010 |
LFA10 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-12110 |
LFA10 |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-35450 |
LFA10 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-77010 |
LFA10 |
1 | ||
| 77287 - SUPPORT, TANK TO CANISTER TUBE, NO.1 | ||||
| 77287-77010 |
LFA10 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52040 |
LFA10 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52040 |
LFA10 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
LFA10 |
1 | ||
| 77511B - BRACKET, FUEL TANK | ||||
| 77511-48030 |
LFA10 |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-77010 |
LFA10 |
1 | ||
| 77608C - CUSHION SET, FUEL TANK | ||||
| 77608-48010 |
LFA10 |
2 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-12070 |
LFA10 |
3 | ||
| 77655B - CUSHION, FUEL TANK | ||||
| 77655-30080 |
LFA10 |
2 | ||
| 77655C - CUSHION, FUEL TANK | ||||
| 77655-48010 |
LFA10 |
2 | ||
| Common parts | ||||
| 77512-35140 | ||||
| 82711-77010 | ||||
| 90119-10969 | ||||
| 90301-08019 | ||||
| 90460-40007 | ||||
| 90460-55003 | ||||
| 90467-21006 | ||||
| 91671-A0622 | ||||
| 94151-80640 | ||||
| Linked diagrams | ||||
| 8401 | ||||
