Toyota Lexus lfa LFA10 MUDGUARD & SPOILER

LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012

Engine 1LRGUE

Transmission 6F ASG

Displacement 2500cc

Power 168 HP (125 kW)

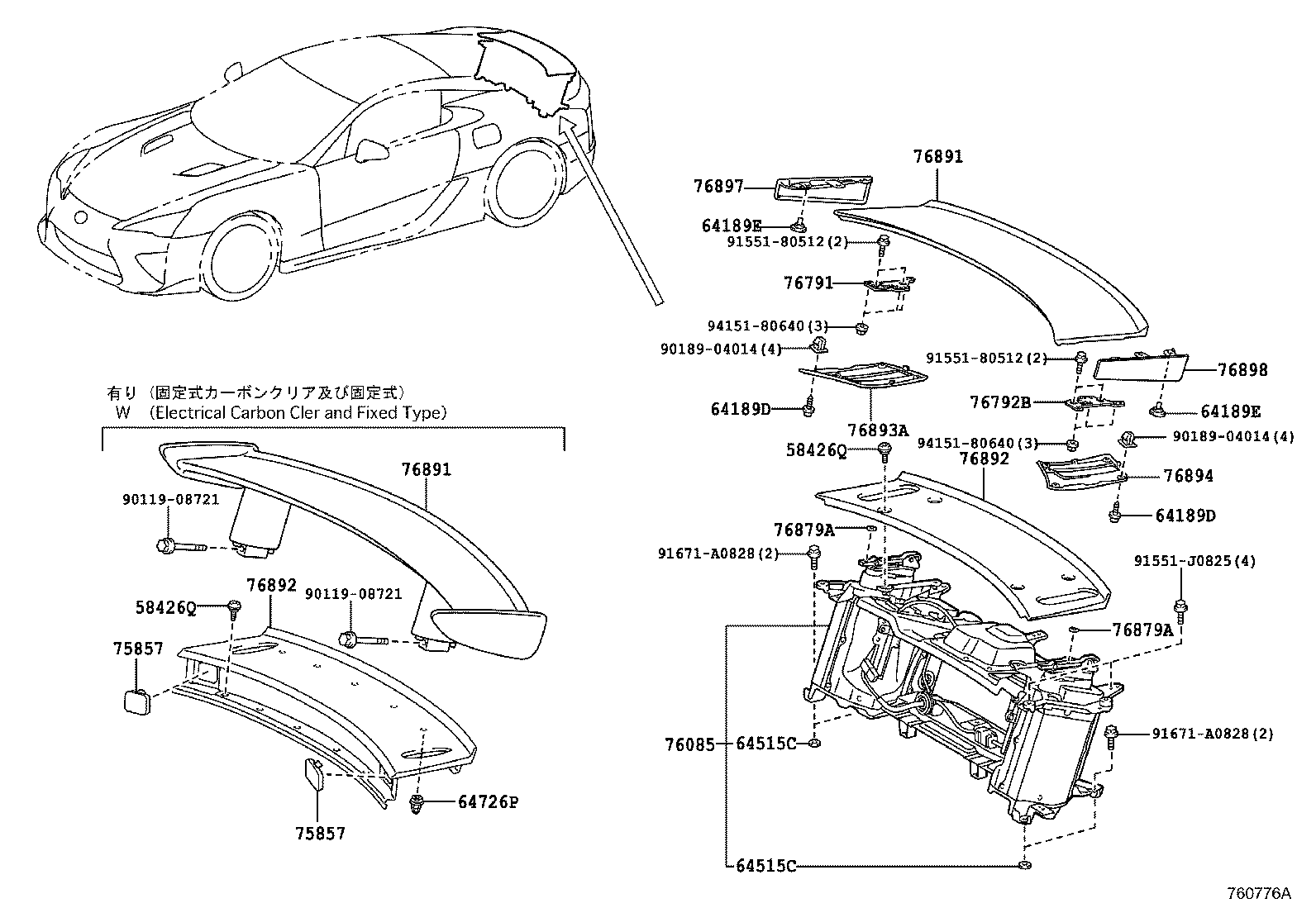

ILLUST NO. 3 OF 3(1012- )

Click highlighted areas on diagram

REAR SPOILER

Part #	Description	Period	Qty
58426Q - PROTECTOR, ENGINE SUB COVER
58426-77020	LFA10	12/2010 - 12/2012	4
58426-77010	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN)	01/2012 - 12/2012	5
58426-77010	LFA10 REAR SPOILER-FIXED CARBON CLEAR	01/2012 - 12/2012	5
58426Q - PROTECTOR, ENGINE SUB COVER
58426-77020	LFA10	12/2010 - 12/2012	4
58426-77010	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN)	01/2012 - 12/2012	5
58426-77010	LFA10 REAR SPOILER-FIXED CARBON CLEAR	01/2012 - 12/2012	5
64189D - BOLT, REAR BODY MOUNTING
64189-77020	LFA10	12/2010 - 12/2012	8
64189D - BOLT, REAR BODY MOUNTING
64189-77020	LFA10	12/2010 - 12/2012	8
64189E - BOLT, REAR BODY MOUNTING NO.2
64189-77040	LFA10	12/2010 - 12/2012	6
64189E - BOLT, REAR BODY MOUNTING NO.2
64189-77040	LFA10	12/2010 - 12/2012	6
64515C - PAD, LUGGAGE DOOR HINGE
64515-50020	LFA10	12/2010 - 12/2999	4
64515-50020	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN)	12/2010 - 12/2999	4
64515-50020	LFA10 REAR SPOILER-FIXED CARBON CLEAR	12/2010 - 12/2999	4
64515C - PAD, LUGGAGE DOOR HINGE
64515-50020	LFA10	12/2010 - 12/2999	4
64515-50020	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN)	12/2010 - 12/2999	4
64515-50020	LFA10 REAR SPOILER-FIXED CARBON CLEAR	12/2010 - 12/2999	4
64726P - CLIP, LUGGAGE TRIM, REAR
64726-77010	LFA10 REAR SPOILER-FIXED CARBON CLEAR	01/2012 - 12/2999	5
64726-77010	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN)	01/2012 - 12/2999	5
75857 - COVER, ROCKER PANEL MOULDING, RH
75857-77010	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN)	01/2012 - 12/2999	2
75857-77010	LFA10 REAR SPOILER-FIXED CARBON CLEAR	01/2012 - 12/2999	2
75857 - COVER, ROCKER PANEL MOULDING, RH
75857-77010	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN)	01/2012 - 12/2999	2
75857-77010	LFA10 REAR SPOILER-FIXED CARBON CLEAR	01/2012 - 12/2999	2
76085 - SPOILER SUB-ASSY, REAR
76085-77010	LFA10 REAR SPOILER-FIXED CARBON CLEAR	12/2010 - 12/2012	1
76085-77010	LFA10 PLATED	12/2010 - 12/2012	1
76085-77010	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN)	12/2010 - 12/2012	1
76791 - BRACKET, REAR SPOILER, NO.1 RH
76791-77010	LFA10	12/2010 - 12/2999	1
76791-77010	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN)	12/2010 - 12/2999	1
76791-77010	LFA10 REAR SPOILER-FIXED CARBON CLEAR	12/2010 - 12/2999	1
76792B - BRACKET, REAR SPOILER, NO.1 LH
76792-77010	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN)	12/2010 - 12/2999	1
76792-77010	LFA10	12/2010 - 12/2999	1
76792-77010	LFA10 REAR SPOILER-FIXED CARBON CLEAR	12/2010 - 12/2999	1
76879A - SPACER, REAR SPOILER
76879-77030	LFA10 T=0.5	12/2010 - 12/2999	1
76879-77030	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN),T=0.5	12/2010 - 12/2999	1
76879-77030	LFA10 REAR SPOILER-FIXED CARBON CLEAR,T=0.5	12/2010 - 12/2999	1
76879-77040	LFA10 T=1.0	12/2010 - 12/2999	1
76879A - SPACER, REAR SPOILER
76879-77030	LFA10 T=0.5	12/2010 - 12/2999	1
76879-77030	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN),T=0.5	12/2010 - 12/2999	1
76879-77030	LFA10 REAR SPOILER-FIXED CARBON CLEAR,T=0.5	12/2010 - 12/2999	1
76879-77040	LFA10 T=1.0	12/2010 - 12/2999	1
76891 - SPOILER, REAR NO.1
76891-77020	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN)	01/2012 - 12/2012	1
76891-77020	LFA10 REAR SPOILER-FIXED CARBON CLEAR	01/2012 - 12/2012	1
76891-77040B1	LFA10 GRAY	12/2010 - 12/2012	1
76891 - SPOILER, REAR NO.1
76891-77020	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN)	01/2012 - 12/2012	1
76891-77020	LFA10 REAR SPOILER-FIXED CARBON CLEAR	01/2012 - 12/2012	1
76891-77040B1	LFA10 GRAY	12/2010 - 12/2012	1
76892 - SPOILER, REAR NO.2
76892-77020	LFA10 REAR SPOILER-FIXED CARBON CLEAR	01/2012 - 12/2012	1
76892-77010	LFA10	12/2010 - 12/2012	1
76892-77020	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN)	01/2012 - 12/2012	1
76892 - SPOILER, REAR NO.2
76892-77020	LFA10 REAR SPOILER-FIXED CARBON CLEAR	01/2012 - 12/2012	1
76892-77010	LFA10	12/2010 - 12/2012	1
76892-77020	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN)	01/2012 - 12/2012	1
76893A - COVER, REAR SPOILER, RH
76893-77020	LFA10	12/2010 - 12/2012	1
76894 - COVER, REAR SPOILER, LH
76894-77020	LFA10	12/2010 - 12/2012	1
76897 - PROTECTOR, REAR SPOILER, SIDE RH
76897-77030B1	LFA10 GRAY	12/2010 - 12/2012	1
76898 - PROTECTOR, REAR SPOILER, SIDE LH
76898-77030B1	LFA10 GRAY	12/2010 - 12/2012	1
Common parts
90119-08721
90189-04014
91551-80512
91551-J0825
91671-A0828
94151-80640

ILLUST NO. 2 OF 3(1012- )

Click highlighted areas on diagram

SIDE SPOILER

Part #	Description	Period	Qty
51477D - PLATE, ENGINE UNDER COVER SIDE
51477-77010	LFA10 NURBURGRING PACKAGE	01/2012 - 12/2012	2
51477D - PLATE, ENGINE UNDER COVER SIDE
51477-77010	LFA10 NURBURGRING PACKAGE	01/2012 - 12/2012	2
53851L - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-77010	LFA10	12/2010 - 12/2012	1
53852L - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-77010	LFA10	12/2010 - 12/2012	1
65631D - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-77010	LFA10	12/2010 - 12/2999	1
65632D - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-77010	LFA10	12/2010 - 12/2999	1
75545J - BOLT, WINDSHIELD OUTSIDE MOULDING
75545-77010	LFA10	12/2010 - 12/2999	6
75545J - BOLT, WINDSHIELD OUTSIDE MOULDING
75545-77010	LFA10	12/2010 - 12/2999	6
75545L - BOLT, WINDSHIELD OUTSIDE MOULDING
75545-77010	LFA10	12/2010 - 12/2012	6
75545L - BOLT, WINDSHIELD OUTSIDE MOULDING
75545-77010	LFA10	12/2010 - 12/2012	6
76087B - SPOILER SUB-ASSY, REAR SIDE, RH
76087-77020B1	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN),GRAY	01/2012 - 12/2012	1
76087-77020B1	LFA10 REAR SPOILER-ELECTRICAL CON,W(QUARTER FIN),GRAY	12/2010 - 12/2012	1
76088B - SPOILER SUB-ASSY, REAR SIDE, LH
76088-77020B1	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN),GRAY	01/2012 - 12/2012	1
76088-77020B1	LFA10 REAR SPOILER-ELECTRICAL CON,W(QUARTER FIN),GRAY	12/2010 - 12/2012	1
76781 - TAPE, REAR SPOILER, UPPER RH
76781-77010	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN)	01/2012 - 12/2999	1
76781-77010	LFA10 REAR SPOILER-ELECTRICAL CON,W(QUARTER FIN)	12/2010 - 12/2999	1
76782 - TAPE, REAR SPOILER, UPPER LH
76782-77010	LFA10 REAR SPOILER-ELECTRICAL CON,W(QUARTER FIN)	12/2010 - 12/2999	1
76782-77010	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN)	01/2012 - 12/2999	1
76783 - TAPE, REAR SPOILER, LOWER RH
76783-77010	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN)	01/2012 - 12/2999	1
76783-77010	LFA10 REAR SPOILER-ELECTRICAL CON,W(QUARTER FIN)	12/2010 - 12/2999	1
76783A - TAPE, REAR SPOILER, LOWER NO.1
76783-77020	LFA10	10/2011 - 12/2999	1
76784 - TAPE, REAR SPOILER, LOWER LH
76784-77010	LFA10 REAR SPOILER-ELECTRICAL CON,W(QUARTER FIN)	12/2010 - 12/2999	1
76784-77010	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN)	01/2012 - 12/2999	1
76784A - TAPE, REAR SPOILER, LOWER NO.2
76784-77020	LFA10	10/2011 - 12/2999	1
76851B - SPOILER, FRONT, RH
76851-77010	LFA10	12/2010 - 12/2999	1
76852B - SPOILER, FRONT, LH
76852-77010	LFA10	12/2010 - 12/2999	1
76897A - SPOILER,REAR SIDE RH
76897-77020	LFA10	12/2010 - 12/2999	1
76898A - SPOILER,REAR SIDE LH
76898-77020	LFA10	12/2010 - 12/2999	1
76899A - NUT, REAR SPOILER
76899-77010	LFA10 REAR SPOILER-ELECTRICAL CON,W(QUARTER FIN)	12/2010 - 12/2999	3
76899-77010	LFA10	12/2010 - 12/2999	1
76899-77010	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN)	01/2012 - 12/2999	3
76899A - NUT, REAR SPOILER
76899-77010	LFA10 REAR SPOILER-ELECTRICAL CON,W(QUARTER FIN)	12/2010 - 12/2999	3
76899-77010	LFA10	12/2010 - 12/2999	1
76899-77010	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN)	01/2012 - 12/2999	3
76899D - NUT, REAR SPOILER, NO.1
76899-77010	LFA10	12/2010 - 12/2999	1
76899-77010	LFA10 REAR SPOILER-ELECTRICAL CON,W(QUARTER FIN)	12/2010 - 12/2999	3
76899-77010	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN)	01/2012 - 12/2999	3
76899D - NUT, REAR SPOILER, NO.1
76899-77010	LFA10	12/2010 - 12/2999	1
76899-77010	LFA10 REAR SPOILER-ELECTRICAL CON,W(QUARTER FIN)	12/2010 - 12/2999	3
76899-77010	LFA10 REAR SPOILER-FIXED,W(QUARTER FIN)	01/2012 - 12/2999	3
Common parts
90166-50004
90167-45005
90189-06211

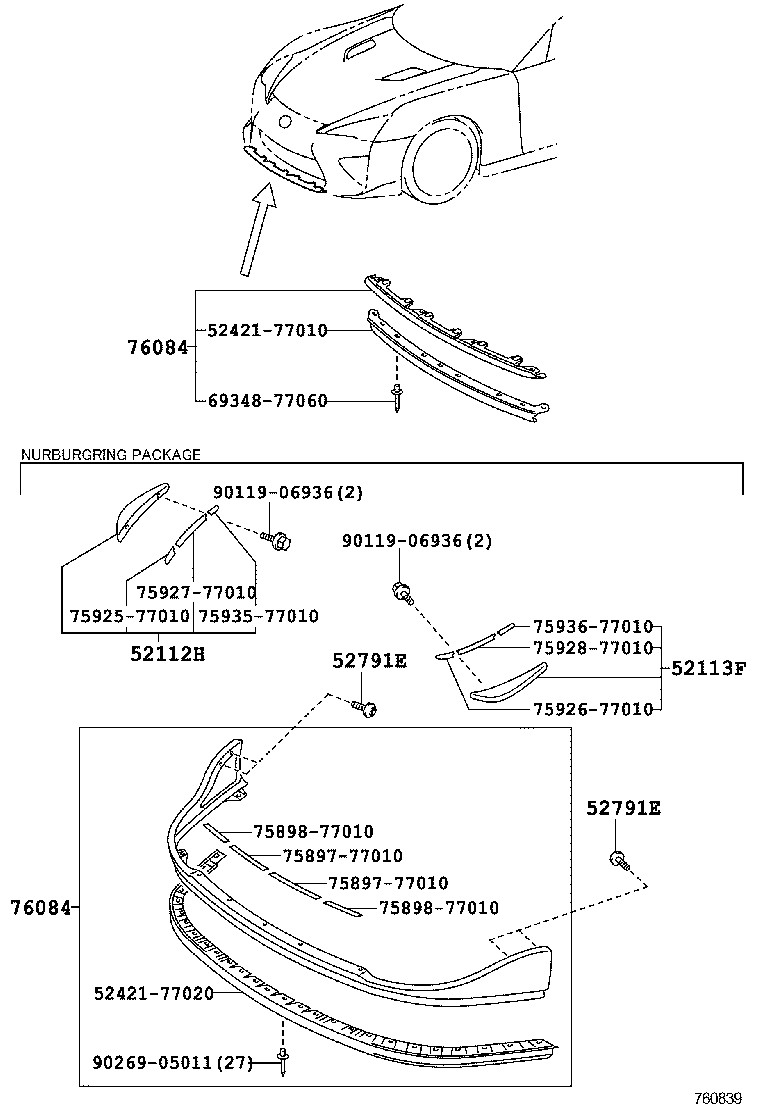

ILLUST NO. 1 OF 3(1012- )

Click highlighted areas on diagram

FRONT SPOILER

Part #	Description	Period	Qty
52112H - EXTENSION, FRONT BUMPER, RH
52112-77010	LFA10 NURBURGRING PACKAGE	01/2012 - 12/2999	1
52113F - EXTENSION, FRONT BUMPER, LH
52113-77010	LFA10 NURBURGRING PACKAGE	01/2012 - 12/2999	1
52791E - BOLT, BUMPER MOULDING SET, NO.1
52791-77010	LFA10 NURBURGRING PACKAGE	01/2012 - 12/2999	4
52791E - BOLT, BUMPER MOULDING SET, NO.1
52791-77010	LFA10 NURBURGRING PACKAGE	01/2012 - 12/2999	4
76084 - SPOILER SET, FRONT
76084-77020	LFA10 NURBURGRING PACKAGE	01/2012 - 12/2999	1
76084-77010	LFA10	12/2010 - 12/2999	1
76084 - SPOILER SET, FRONT
76084-77020	LFA10 NURBURGRING PACKAGE	01/2012 - 12/2999	1
76084-77010	LFA10	12/2010 - 12/2999	1
Common parts
52421-77010
52421-77020
69348-77060
75897-77010
75898-77010
75925-77010
75926-77010
75927-77010
75928-77010
75935-77010
75936-77010
90119-06936
90269-05011
