LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

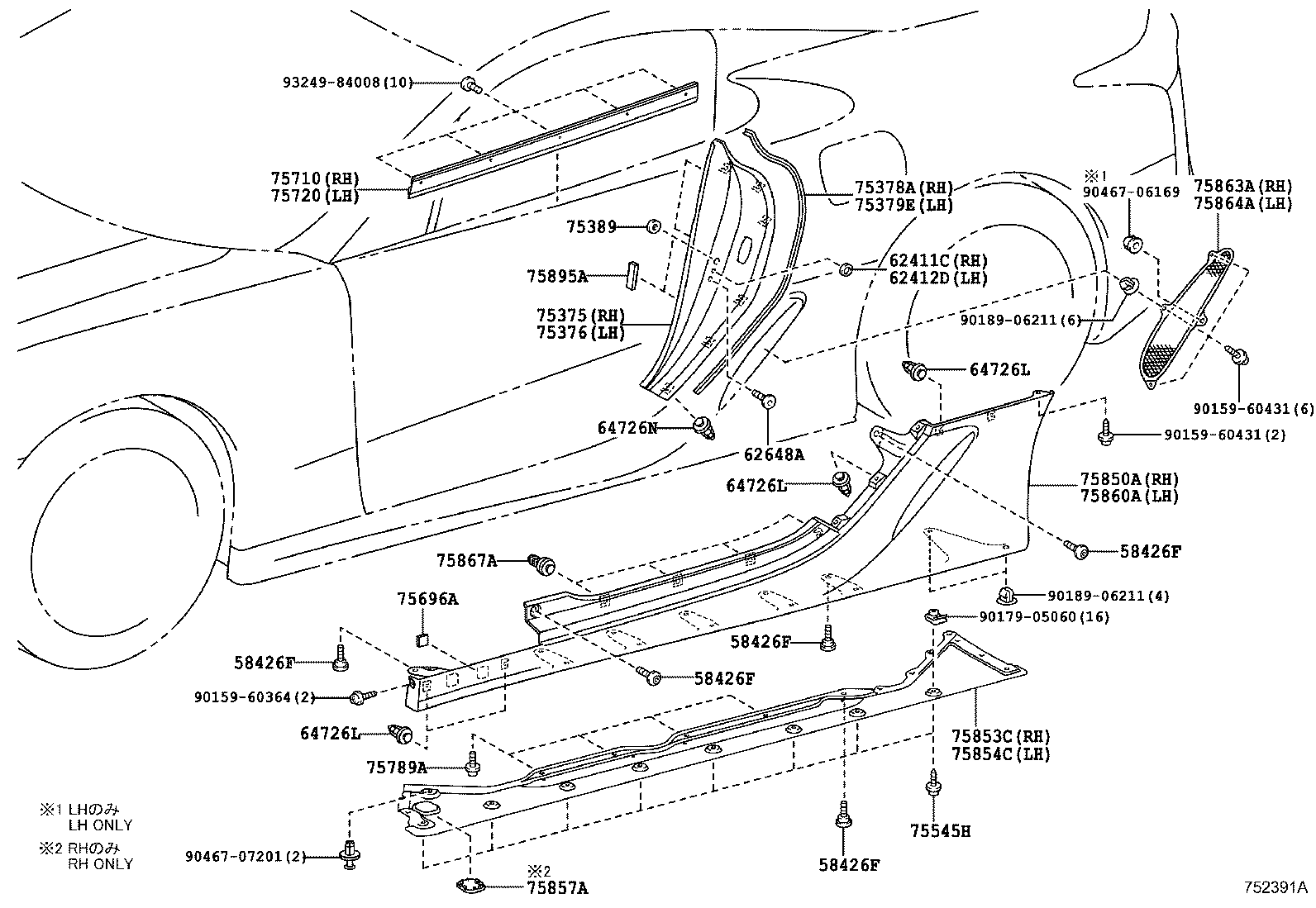

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58426F - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77020 |
LFA10 |
5 | ||
| 58426F - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77020 |
LFA10 |
5 | ||
| 58426F - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77020 |
LFA10 |
5 | ||
| 58426F - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77020 |
LFA10 |
5 | ||
| 58426F - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77020 |
LFA10 |
5 | ||
| 62411C - SPACER, CENTER PILLAR, NO.1 | ||||
| 62411-77010 |
LFA10 |
1 | ||
| 62412D - SPACER, CENTER PILLAR, NO.2 | ||||
| 62411-77010 |
LFA10 |
1 | ||
| 62648A - BOLT, QUARTER TRIM COVER | ||||
| 62648-77010 |
LFA10 |
1 | ||
| 64726L - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-77010 |
LFA10 |
4 | ||
| 64726L - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-77010 |
LFA10 |
4 | ||
| 64726L - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-77010 |
LFA10 |
4 | ||
| 64726N - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-77010 |
LFA10 |
6 | ||
| 75375 - ORNAMENT, QUARTER PANEL, RH | ||||
| 75375-77020 |
LFA10 |
1 | ||
| 75376 - ORNAMENT, QUARTER PANEL, LH | ||||
| 75376-77020 |
LFA10 |
1 | ||
| 75378A - PAD, QUARTER PANEL ORNAMENT, NO.1 RH | ||||
| 75378-77010 |
LFA10 |
1 | ||
| 75379E - PAD, QUARTER PANEL ORNAMENT, NO.1 LH | ||||
| 75379-77010 |
LFA10 |
1 | ||
| 75389 - PAD, QUARTER PANEL ORNAMENT, NO.2 | ||||
| 75389-77010 |
LFA10 |
1 | ||
| 75545H - BOLT, WINDSHIELD OUTSIDE MOULDING | ||||
| 75545-77010 |
LFA10 |
8 | ||
| 75696A - PAD, BODY OUTSIDE MOULDING | ||||
| 75696-77010 |
LFA10 |
2 | ||
| 75710 - MOULDING ASSY, FRONT DOOR BELT, RH | ||||
| 75710-77010 |
LFA10 |
1 | ||
| 75720 - MOULDING ASSY, FRONT DOOR BELT, LH | ||||
| 75720-77010 |
LFA10 |
1 | ||
| 75789A - BOLT, DOOR BELT MOULDING | ||||
| 75789-77010 |
LFA10 |
4 | ||
| 75850A - MOULDING ASSY, BODY ROCKER PANEL, RH | ||||
| 75850-77020B1 |
LFA10 GRAY |
1 | ||
| 75853C - MOULDING, ROCKER PANEL, LOWER RH | ||||
| 75853-77010 |
LFA10 |
1 | ||
| 75854C - MOULDING, ROCKER PANEL, LOWER LH | ||||
| 75854-77010 |
LFA10 |
1 | ||
| 75857A - COVER, ROCKER PANEL MOULDING, RH | ||||
| 75857-77010 |
LFA10 |
1 | ||
| 75860A - MOULDING ASSY, BODY ROCKER PANEL, LH | ||||
| 75860-77020B1 |
LFA10 GRAY |
1 | ||
| 75863A - COVER, ROCKER PANEL MOULDING END, REAR RH | ||||
| 75863-77010 |
LFA10 |
1 | ||
| 75864A - COVER, ROCKER PANEL MOULDING END, REAR LH | ||||
| 75864-77010 |
LFA10 |
1 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-77010 |
LFA10 |
4 | ||
| 75895A - TAPE, MOULDING, NO.1 | ||||
| 75895-77010 |
LFA10 |
6 | ||
| Common parts | ||||
| 90159-60364 | ||||
| 90159-60431 | ||||
| 90179-05060 | ||||
| 90189-06211 | ||||
| 90467-06169 | ||||
| 90467-07201 | ||||
| 93249-84008 | ||||
