LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

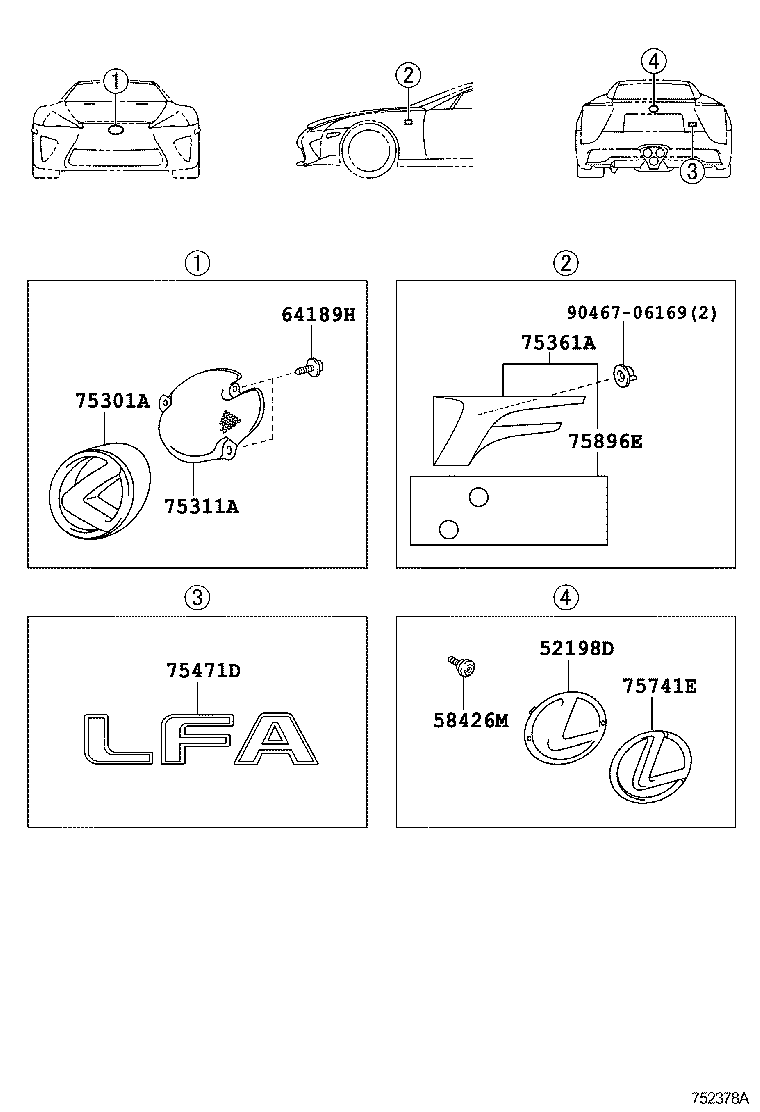

Click highlighted areas on diagram

diagram 52198D 58426M 64189H 75301A 75311A 75361A 75471D 75741E 75896E 9046706169
Part # Description Qty Price
52198D - PLATE, BUMPER MOULDING MOUNTING, REAR
52198-77020

LFA10

 1
58426M - PROTECTOR, ENGINE SUB COVER
58426-77020

LFA10

 1
64189H - BOLT, REAR BODY MOUNTING
64189-77020

LFA10

 3
75301A - EMBLEM SUB-ASSY, FRONT BUMPER
75301-77010

LFA10

 1
75311A - PLATE, FRONT NAME, NO.1
75311-77010

LFA10

 1
75361A - PLATE, FRONT FENDER NAME, NO.1
75361-77010

LFA10

F

 2
75471D - PLATE, REAR NAME
75471-77010

LFA10

MODEL NAME MARK-WITH

 1
75741E - EMBLEM, SYMBOL
90975-02084

LFA10

 1
75896E - TAPE, MOULDING, NO.2
75896-77010

LFA10

 1
Common parts
90467-06169
