LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

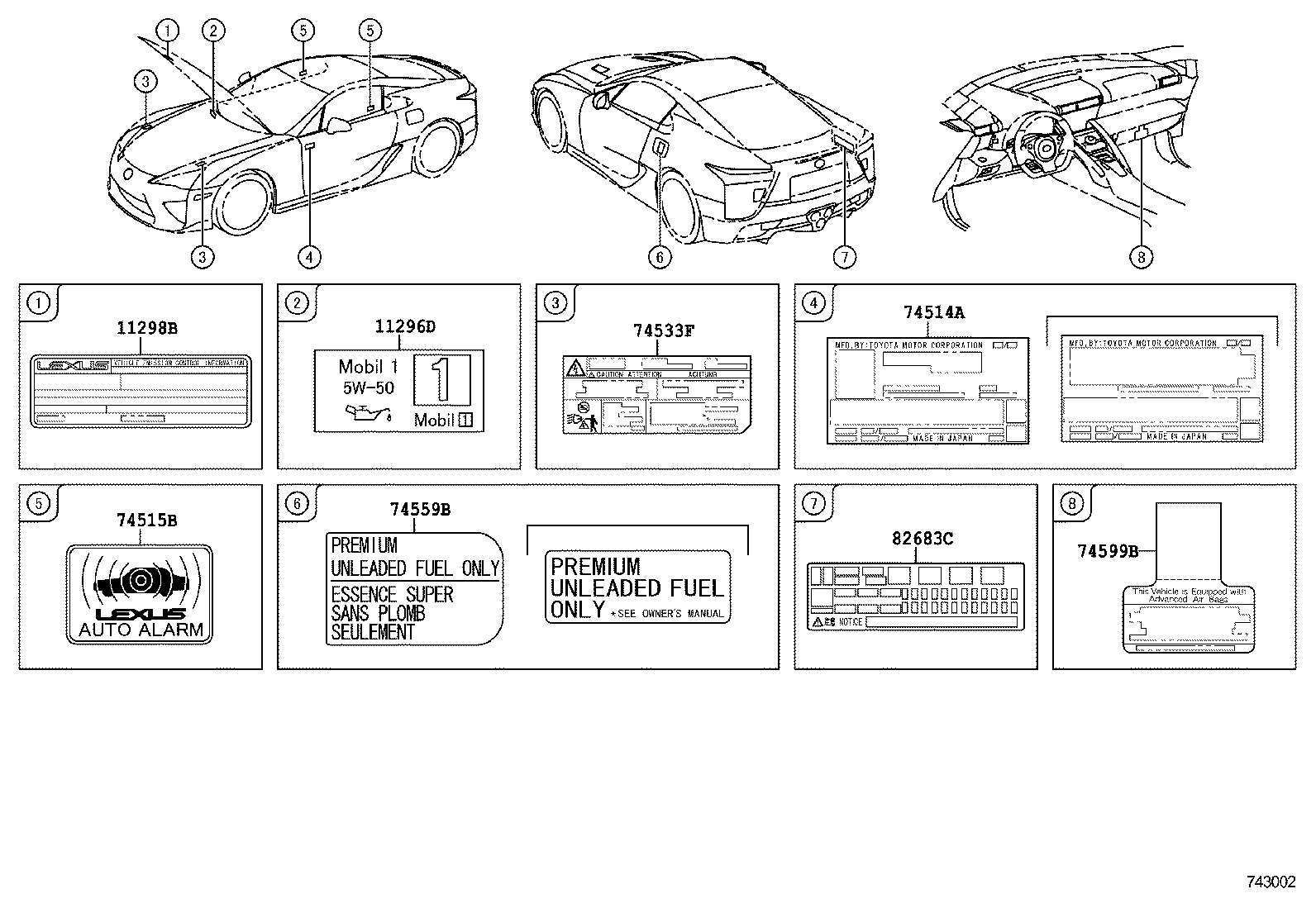

Click highlighted areas on diagram

diagram 11296D 11298B 74514A 74515B 74533F 74559B 74599B 82683C
Part # Description Qty Price
11296D - LABEL, ENGINE SERVICE INFORMATION
11296-45020

1LRGUE..LFA10

 1
11298B - LABEL, EMISSION CONTROL INFORMATION
11298-45100

1LRGUE..LFA10

 1
74514A - LABEL, CERTIFICATION REGULATION INFORMATION
74514-33010

LFA10

 1
74514-33020

LFA10

CANADA SPEC

 1
74515B - PLATE, THEFT WARNING
74515-30040

LFA10

 2
74533F - LABEL, HEADLAMP VOLTAGE CAUTION
74533-47010

LFA10

 2
74559B - LABEL, FUEL INFORMATION
74559-50010

LFA10

 1
74559-20110

LFA10

CANADA SPEC

 1
74599B - LABEL, DRIVER & PASSENGER AIR BAG INFORMATION
74599-48020

LFA10

 1
82683C - LABEL, FUSE BLOCK NOTICE
82683-77010

LFA10

 1
