LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

Click highlighted areas on diagram

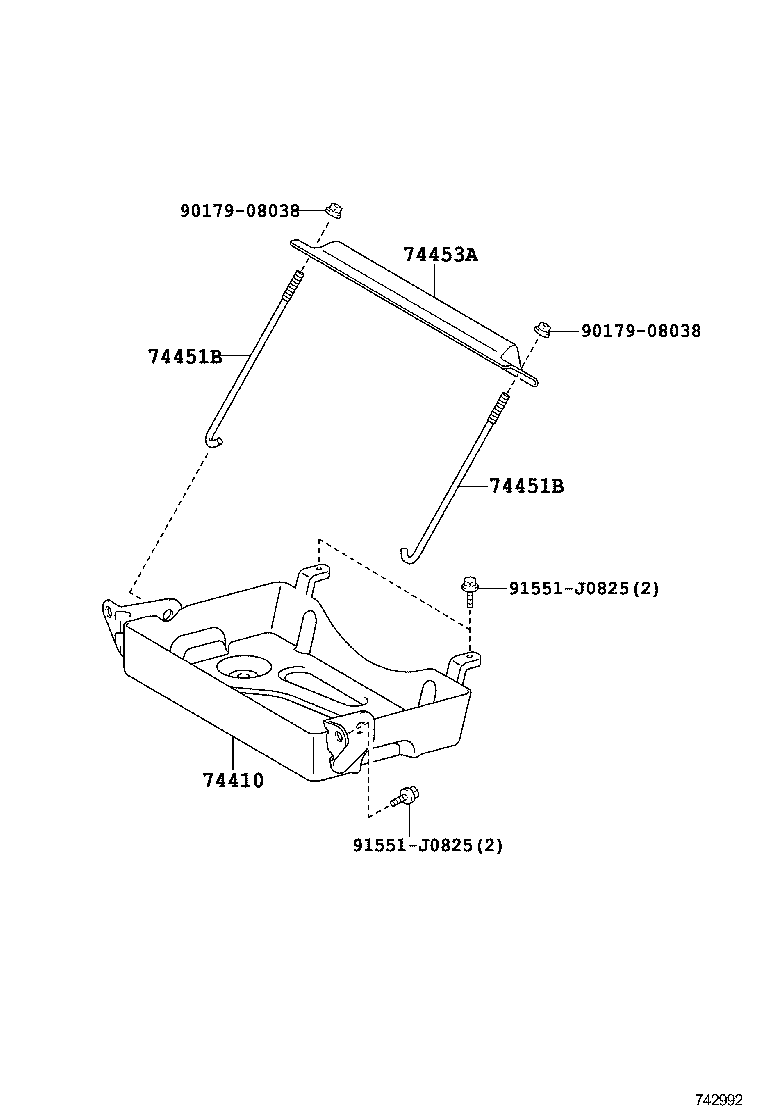

diagram 74410 74451B 74451B 74453A 9017908038 9017908038 91551J0825 91551J0825
Part # Description Qty Price
74410 - CARRIER ASSY, BATTERY
74410-77010

LFA10

 1
74451B - BOLT, BATTERY CLAMP
74451-35060

LFA10

 2
74451B - BOLT, BATTERY CLAMP
74451-35060

LFA10

 2
74453A - BAR, BATTERY SET PLATE
74453-77010

LFA10

 1
Common parts
90179-08038
91551-J0825
