Toyota Lexus lfa LFA10 FRONT SEAT & SEAT TRACK

Manufacturers Home
Toyota
US
LEXUS LFA
LFA10L-FCRAFA (2010)
7101 - FRONT SEAT & SEAT TRACK

LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012

Engine 1LRGUE

Transmission 6F ASG

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1012- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

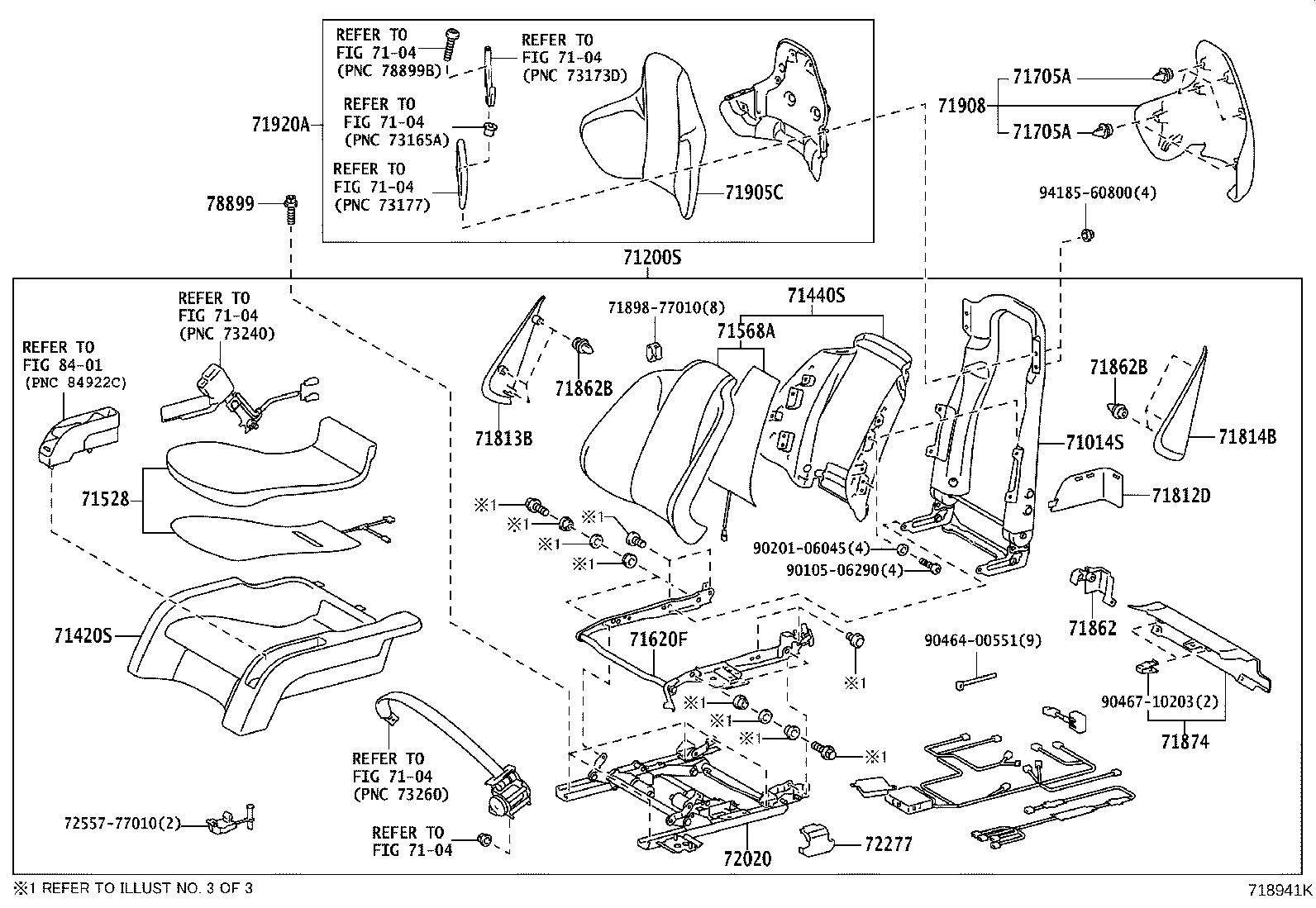

ILLUST NO. 2 OF 3(1012- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71104-77010	LFA10	12/2010 - 12/2012	1
71200S - SEAT ASSY, FRONT LH

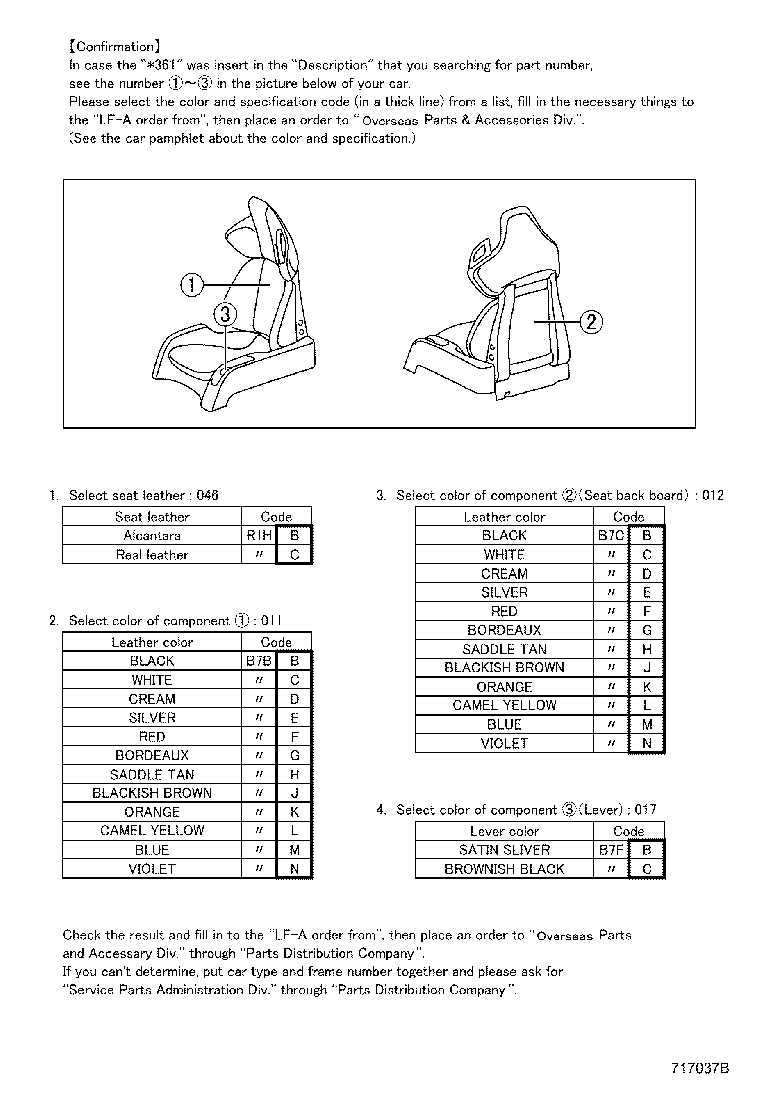

71200-77010	LFA10 *361	12/2010 - 12/2012	1
71200-77030	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,*361	12/2010 - 12/2012	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
79130-77020	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,*361	12/2010 - 12/2012	1
79130-77010	LFA10 *361	12/2010 - 12/2012	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71430-77040	LFA10 *361	12/2010 - 12/2012	1
71430-77030	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,*361	12/2010 - 12/2012	1
71528 - PAD, FRONT SEAT CUSHION W/COVER, LH
71410-77010	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,*361	12/2010 - 12/2012	1
71410-77020	LFA10 *361	12/2010 - 12/2012	1
71568A - PAD, FRONT SEAT BACK W/COVER, LH
71401-77010	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,*361	12/2010 - 12/2012	1
71401-77020	LFA10 *361	12/2010 - 12/2012	1
71620F - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71112-77010	LFA10	12/2010 - 12/2012	1
71705A - CLIP(FOR FRONT SEAT BACK BOARD)
62217-13010	LFA10	12/2010 - 12/2012	12
71705A - CLIP(FOR FRONT SEAT BACK BOARD)
62217-13010	LFA10	12/2010 - 12/2012	12
71812D - SHIELD, FRONT SEAT CUSHION, LH
71806-77020	LFA10 *361	12/2010 - 12/2012	1
71806-77010	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,*361	12/2010 - 12/2012	1
71813B - SHIELD, FRONT SEAT BACK, RH
71081-77010	LFA10 *361	12/2010 - 12/2012	1
71814B - SHIELD, FRONT SEAT BACK, LH
71082-77010	LFA10 *361	12/2010 - 12/2012	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-77010	LFA10	12/2010 - 12/2012	1
71862B - CLIP(FOR FRONT SEAT SHIELD, LH)
62217-13010	LFA10	12/2010 - 12/2012	6
71862B - CLIP(FOR FRONT SEAT SHIELD, LH)
62217-13010	LFA10	12/2010 - 12/2012	6
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-77010	LFA10	12/2010 - 12/2012	1
71905C - PAD, FRONT SEAT HEADREST W/COVER, LH
71905-77040	LFA10 *361	12/2010 - 12/2012	1
71905-77030	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,*361	12/2010 - 12/2012	1
71908 - COVER SUB-ASSY, FRONT SEAT HEADREST
71908-77010B0	LFA10 SILVER,TRIM20	12/2010 - 12/2012	2
71908-77010A0	LFA10 WHITE,TRIM20	12/2010 - 12/2012	2
71908-77010A1	LFA10 CREAM,TRIM20	12/2010 - 12/2012	2
71908-77010D1	LFA10 RED,TRIM20	12/2010 - 12/2012	2
71908-77010E2	LFA10 ORANGE,TRIM20	12/2010 - 12/2012	2
71908-77010J1	LFA10 BLUE,TRIM20	12/2010 - 12/2012	2
71908-77010D2	LFA10 BORDEAUX,TRIM20	12/2010 - 12/2012	2
71908-77010E0	LFA10 SADDLE TAN,TRIM20	12/2010 - 12/2012	2
71908-77010K0	LFA10 PURPLE,TRIM20	12/2010 - 12/2012	2
71908-77010F0	LFA10 CAMEL YELLOW,TRIM20	12/2010 - 12/2012	2
71908-77010E1	LFA10 BLACKISH .BROWN,TRIM20	12/2010 - 12/2012	2
71908-77010C0	LFA10 BLACK,TRIM20	12/2010 - 12/2012	2
71920A - HEADREST ASSY, FRONT SEAT, LH
71920-7701030	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,BORDEAUX,TRIM20,*361	12/2010 - 12/2012	1
71920-7701024	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM20,*361	12/2010 - 12/2012	1
71920-7701043	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,BLACKISH .BROWN,TRIM20,*361	12/2010 - 12/2012	1
71920-7701006	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,WHITE,TRIM20,*361	12/2010 - 12/2012	1
71920-7701007	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,CREAM,TRIM20,*361	12/2010 - 12/2012	1
71920-77020A1	LFA10 CREAM,TRIM20,*361	12/2010 - 12/2012	1
71920-77010B1	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,SILVER,TRIM20,*361	12/2010 - 12/2012	1
71920-77010U4	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,VIOLET,TRIM20,*361	12/2010 - 12/2012	1
71920-77020E4	LFA10 ORANGE,TRIM20,*361	12/2010 - 12/2012	1
71920-77010Y9	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,RED,TRIM20,*361	12/2010 - 12/2012	1
71920-77020F1	LFA10 CAMEL YELLOW,TRIM20,*361	12/2010 - 12/2012	1
71920-77010R5	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,BLUE,TRIM20,*361	12/2010 - 12/2012	1
71920-7701042	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,SADDLE TAN,TRIM20,*361	12/2010 - 12/2012	1
71920-77020E3	LFA10 SADDLE TAN,TRIM20,*361	12/2010 - 12/2012	1
71920-7701054	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,CAMEL YELLOW,TRIM20,*361	12/2010 - 12/2012	1
71920-77020E5	LFA10 BLACKISH BROWN,TRIM20,*361	12/2010 - 12/2012	1
71920-77020K1	LFA10 VIOLET,TRIM20,*361	12/2010 - 12/2012	1
71920-7701044	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,ORANGE,TRIM20,*361	12/2010 - 12/2012	1
71920-77020C1	LFA10 BLACK,TRIM20,*361	12/2010 - 12/2012	1
71920-77020D2	LFA10 RED,TRIM20,*361	12/2010 - 12/2012	1
71920-77020J1	LFA10 BLUE,TRIM20,*361	12/2010 - 12/2012	1
71920-77020D3	LFA10 BORDEAUX,TRIM20,*361	12/2010 - 12/2012	1
72020 - ADJUSTER ASSY, FRONT SEAT, LH
72020-77020	LFA10	12/2010 - 12/2012	1
72277 - PROTECTOR, SEAT SLIDE POSITION SENSOR,
72277-33010	LFA10	12/2010 - 12/2012	1
78899 - BOLT, FRONT SEAT
78899-77010	LFA10	12/2010 - 12/2012	8
Common parts
71898-77010
72557-77010
90105-06290
90201-06045
90464-00551
90467-10203
94185-60800
Linked diagrams
7104
8401

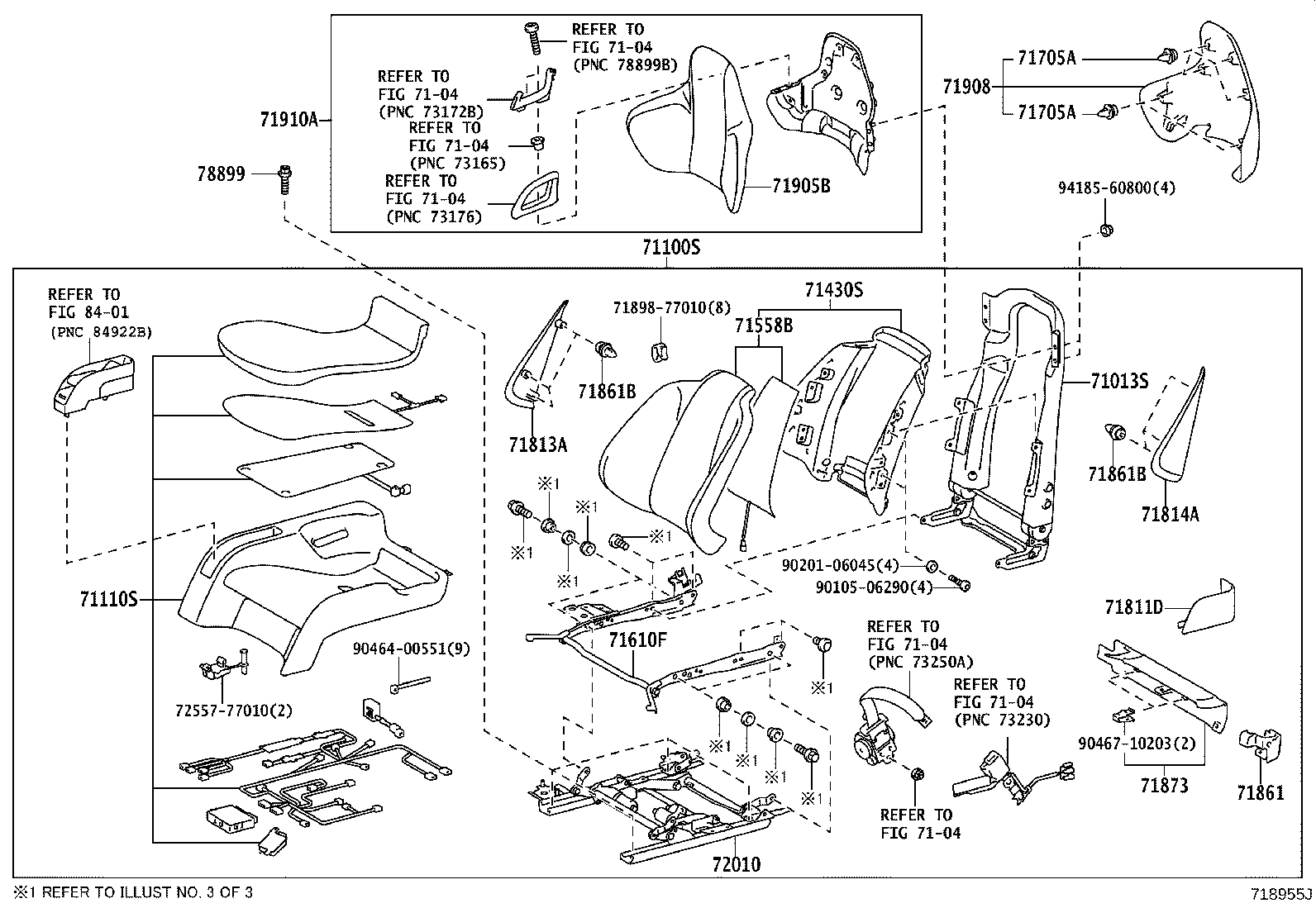

ILLUST NO. 2 OF 3(1012- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71103-77020	LFA10	12/2010 - 12/2012	1
71100S - SEAT ASSY, FRONT RH
71100-77010	LFA10 *361	12/2010 - 12/2012	1
71100-77040	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,*361	12/2010 - 12/2012	1
71110S - CUSHION ASSY, FRONT SEAT, RH
71001-77120	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,*361	12/2010 - 12/2012	1
71001-77110	LFA10 *361	12/2010 - 12/2012	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-77040	LFA10 *361	12/2010 - 12/2012	1
71430-77030	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,*361	12/2010 - 12/2012	1
71558B - PAD, FRONT SEAT BACK W/COVER, RH
71401-77010	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,*361	12/2010 - 12/2012	1
71401-77020	LFA10 *361	12/2010 - 12/2012	1
71610F - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71111-77010	LFA10	12/2010 - 12/2012	1
71705A - CLIP(FOR FRONT SEAT BACK BOARD)
62217-13010	LFA10	12/2010 - 12/2012	12
71705A - CLIP(FOR FRONT SEAT BACK BOARD)
62217-13010	LFA10	12/2010 - 12/2012	12
71811D - SHIELD, FRONT SEAT CUSHION, RH
71805-77020	LFA10 *361	12/2010 - 12/2012	1
71805-77010	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,*361	12/2010 - 12/2012	1
71813A - SHIELD, FRONT SEAT BACK, RH
71081-77010	LFA10 *361	12/2010 - 12/2012	1
71814A - SHIELD, FRONT SEAT BACK, LH
71082-77010	LFA10 *361	12/2010 - 12/2012	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-77010	LFA10	12/2010 - 12/2012	1
71861B - CLIP(FOR FRONT SEAT SHIELD, RH)
62217-13010	LFA10	12/2010 - 12/2012	6
71861B - CLIP(FOR FRONT SEAT SHIELD, RH)
62217-13010	LFA10	12/2010 - 12/2012	6
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-77010	LFA10	12/2010 - 12/2012	1
71905B - PAD, FRONT SEAT HEADREST W/COVER, RH
71905-77020	LFA10 *361	12/2010 - 12/2012	1
71905-77010	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,*361	12/2010 - 12/2012	1
71908 - COVER SUB-ASSY, FRONT SEAT HEADREST
71908-77010B0	LFA10 SILVER,TRIM20	12/2010 - 12/2012	2
71908-77010A0	LFA10 WHITE,TRIM20	12/2010 - 12/2012	2
71908-77010A1	LFA10 CREAM,TRIM20	12/2010 - 12/2012	2
71908-77010D1	LFA10 RED,TRIM20	12/2010 - 12/2012	2
71908-77010E2	LFA10 ORANGE,TRIM20	12/2010 - 12/2012	2
71908-77010J1	LFA10 BLUE,TRIM20	12/2010 - 12/2012	2
71908-77010D2	LFA10 BORDEAUX,TRIM20	12/2010 - 12/2012	2
71908-77010E0	LFA10 SADDLE TAN,TRIM20	12/2010 - 12/2012	2
71908-77010K0	LFA10 PURPLE,TRIM20	12/2010 - 12/2012	2
71908-77010F0	LFA10 CAMEL YELLOW,TRIM20	12/2010 - 12/2012	2
71908-77010E1	LFA10 BLACKISH .BROWN,TRIM20	12/2010 - 12/2012	2
71908-77010C0	LFA10 BLACK,TRIM20	12/2010 - 12/2012	2
71910A - HEADREST ASSY, FRONT SEAT
71910-7701006	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,WHITE,TRIM20,*361	12/2010 - 12/2012	1
71910-7701054	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,CAMEL YELLOW,TRIM20,*361	12/2010 - 12/2012	1
71910-7701024	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM20,*361	12/2010 - 12/2012	1
71910-7701030	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,BORDEAUX,TRIM20,*361	12/2010 - 12/2012	1
71910-7701044	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,ORANGE,TRIM20,*361	12/2010 - 12/2012	1
71910-77010R5	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,BLUE,TRIM20,*361	12/2010 - 12/2012	1
71910-7701043	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,BLACKISH .BROWN,TRIM20,*361	12/2010 - 12/2012	1
71910-77020D3	LFA10 BORDEAUX,TRIM20,*361	12/2010 - 12/2012	1
71910-77010B1	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,SILVER,TRIM20,*361	12/2010 - 12/2012	1
71910-7701042	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,SADDLE TAN,TRIM20,*361	12/2010 - 12/2012	1
71910-77020E4	LFA10 ORANGE,TRIM20,*361	12/2010 - 12/2012	1
71910-77020A1	LFA10 CREAM,TRIM20,*361	12/2010 - 12/2012	1
71910-7701007	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,CREAM,TRIM20,*361	12/2010 - 12/2012	1
71910-77020E3	LFA10 SADDLE TAN,TRIM20,*361	12/2010 - 12/2012	1
71910-77020J1	LFA10 BLUE,TRIM20,*361	12/2010 - 12/2012	1
71910-77020F1	LFA10 CAMEL YELLOW,TRIM20,*361	12/2010 - 12/2012	1
71910-77010U4	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,VIOLET,TRIM20,*361	12/2010 - 12/2012	1
71910-77010Y9	LFA10 SEAT COVER MATERIAL-NATURAL LEATHER,RED,TRIM20,*361	12/2010 - 12/2012	1
71910-77020E5	LFA10 BLACKISH BROWN,TRIM20,*361	12/2010 - 12/2012	1
71910-77020K1	LFA10 VIOLET,TRIM20,*361	12/2010 - 12/2012	1
71910-77020C1	LFA10 BLACK,TRIM20,*361	12/2010 - 12/2012	1
71910-77020D2	LFA10 RED,TRIM20,*361	12/2010 - 12/2012	1
72010 - ADJUSTER ASSY, FRONT SEAT, RH
72010-77020	LFA10	12/2010 - 12/2012	1
78899 - BOLT, FRONT SEAT
78899-77010	LFA10	12/2010 - 12/2012	8
Common parts
71898-77010
72557-77010
90105-06290
90201-06045
90464-00551
90467-10203
94185-60800
Linked diagrams
7104
8401

ILLUST NO. 3 OF 3(1012- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
72331B - FITTING PARTS KIT, FRONT SEAT ADJUSTER
72331-77010	LFA10	12/2010 - 12/2012	2
72331C - FITTING PARTS KIT, FRONT SEAT BACK FRAME
72331-77020	LFA10	12/2010 - 12/2012	2
