LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

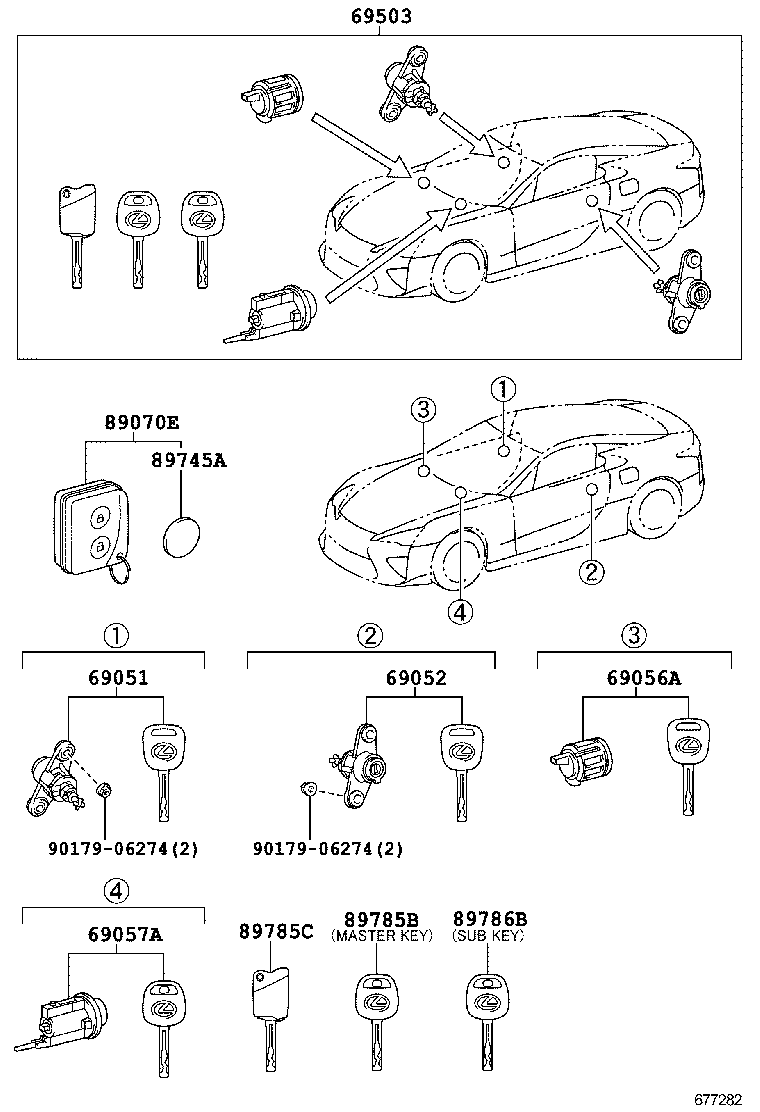

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-77010 |
LFA10 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-77010 |
LFA10 |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-77010 |
LFA10 |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-77010 |
LFA10 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-77010 |
LFA10 |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-77010 |
LFA10 |
2 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-48030 |
LFA10 |
1 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-77040 |
LFA10 CUT KEY |
1 | ||
| 89785-77030 |
LFA10 BLANK KEY |
1 | ||
| 89785C - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-77070 |
LFA10 BLANK KEY |
1 | ||
| 89785-77080 |
LFA10 CUT KEY |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-77030 |
LFA10 CUT KEY |
1 | ||
| 89786-77020 |
LFA10 BLANK KEY |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
