LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

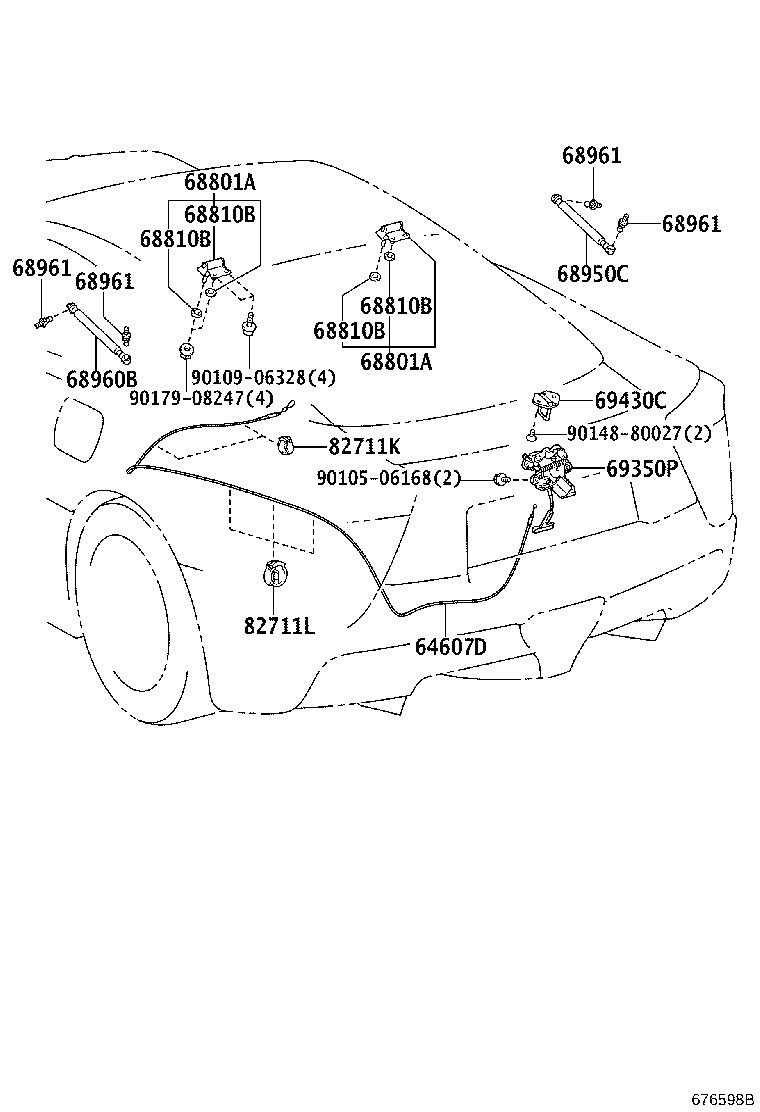

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64607D - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL | ||||
| 64607-77010 |
LFA10 |
1 | ||
| 68801A - HINGE SUB-ASSY, BACK DOOR, UPPER | ||||
| 68801-77010 |
LFA10 |
2 | ||
| 68801A - HINGE SUB-ASSY, BACK DOOR, UPPER | ||||
| 68801-77010 |
LFA10 |
2 | ||
| 68810B - PAD, BACK DOOR HINGE | ||||
| 64515-50030 |
LFA10 |
4 | ||
| 68810B - PAD, BACK DOOR HINGE | ||||
| 64515-50030 |
LFA10 |
4 | ||
| 68810B - PAD, BACK DOOR HINGE | ||||
| 64515-50030 |
LFA10 |
4 | ||
| 68810B - PAD, BACK DOOR HINGE | ||||
| 64515-50030 |
LFA10 |
4 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-77010 |
LFA10 |
1 | ||
| 68950-77011 |
LFA10 |
1 | ||
| 68960B - STAY ASSY, BACK DOOR, LH | ||||
| 68960-77011 |
LFA10 |
1 | ||
| 68960-77010 |
LFA10 |
1 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-12050 |
LFA10 |
4 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-12050 |
LFA10 |
4 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-12050 |
LFA10 |
4 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-12050 |
LFA10 |
4 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-77020 |
LFA10 |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-77010 |
LFA10 |
1 | ||
| 82711K - CLAMP, WIRING HARNESS | ||||
| 82711-2B660 |
LFA10 |
2 | ||
| 82711L - CLAMP, WIRING HARNESS | ||||
| 82711-34310 |
LFA10 |
3 | ||
| Common parts | ||||
| 90105-06168 | ||||
| 90109-06328 | ||||
| 90148-80027 | ||||
| 90179-08247 | ||||
