LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

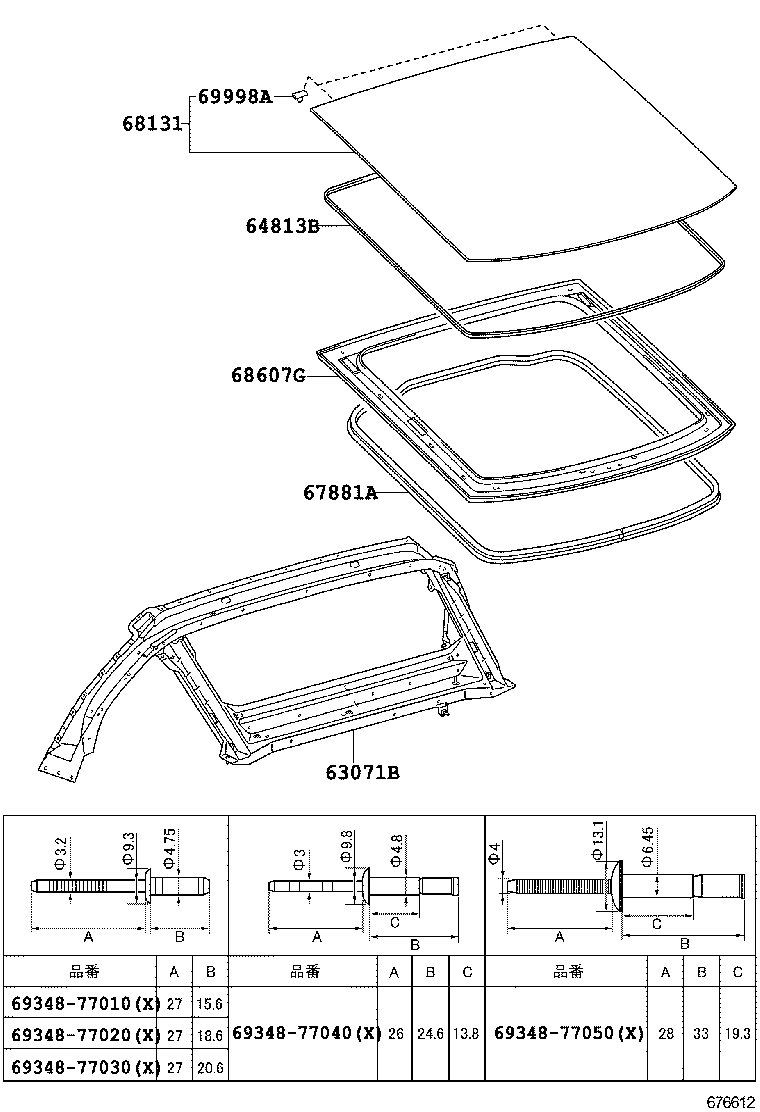

Click highlighted areas on diagram

diagram 63071B 64813B 67881A 68131 68607G 6934877010 6934877020 6934877030 6934877040 6934877050 69998A
Part # Description Qty Price
63071B - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-77010

LFA10

 1
64813B - DAM, BACK WINDOW GLASS ADHESIVE
56117-64010

LFA10

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-77010

LFA10

 1
68131 - GLASS, BACK DOOR
68105-77010

LFA10

 1
68607G - FRAME SUB-ASSY, BACK DOOR WINDOW
68607-0W010

LFA10

 1
69998A - PIN, BACK DOOR GLASS
69998-77010

LFA10

 2
Common parts
69348-77010
69348-77020
69348-77030
69348-77040
69348-77050
