LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

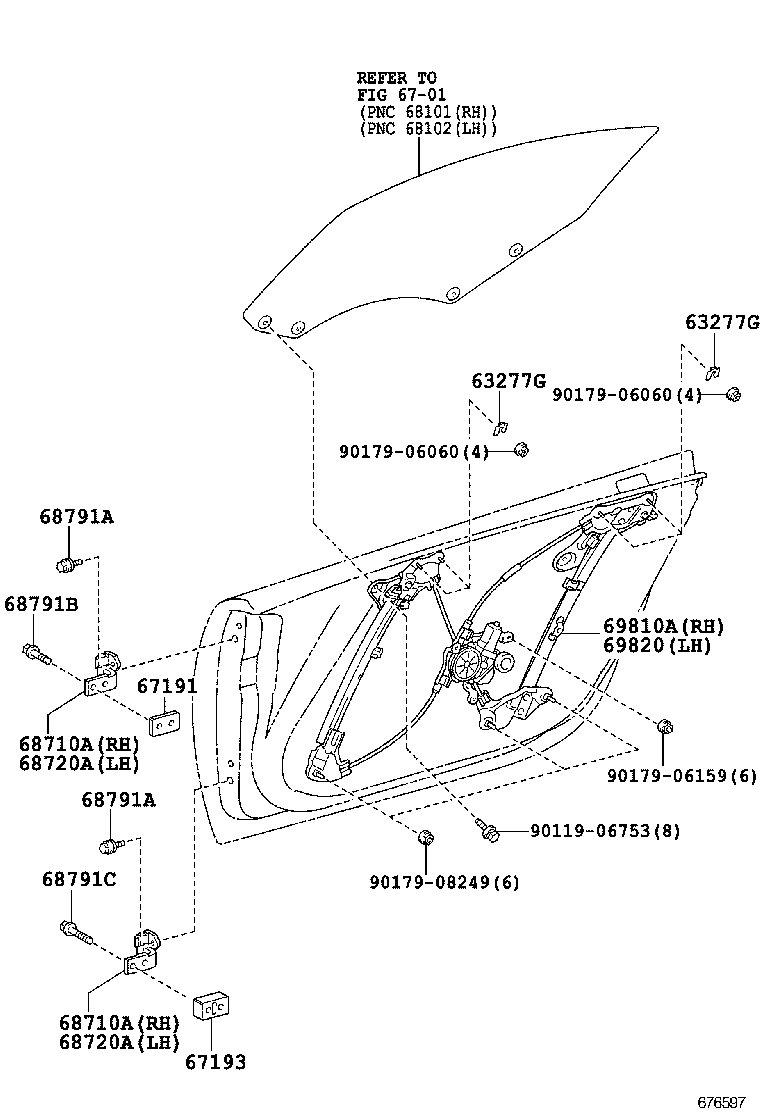

Click highlighted areas on diagram

diagram 63277G 63277G 67191 67193 68710A 68710A 68720A 68720A 68791A 68791A 68791B 68791C 69810A 69820 9011906753 9017906060 9017906060 9017906159 9017908249
Part # Description Qty Price
63277G - SHIM, WINDOW REGULATOR
63277-20030

LFA10

 8
63277G - SHIM, WINDOW REGULATOR
63277-20030

LFA10

 8
67191 - HOLDER, FRONT DOOR UPPER HINGE RETAINER
67191-77010

LFA10

 2
67193 - HOLDER, FRONT DOOR LOWER HINGE RETAINER
67193-77010

LFA10

 2
68710A - HINGE ASSY, FRONT DOOR, RH
68710-77010

LFA10

 2
68710A - HINGE ASSY, FRONT DOOR, RH
68710-77010

LFA10

 2
68720A - HINGE ASSY, FRONT DOOR, LH
68720-77010

LFA10

 2
68720A - HINGE ASSY, FRONT DOOR, LH
68720-77010

LFA10

 2
68791A - PIN, DOOR HINGE, NO.1
68791-77010

LFA10

 4
68791A - PIN, DOOR HINGE, NO.1
68791-77010

LFA10

 4
68791B - PIN, DOOR HINGE, NO.1
68791-77030

LFA10

 4
68791C - PIN, DOOR HINGE, NO.1
68791-77040

LFA10

 4
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-77010

LFA10

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-77010

LFA10

 1
Common parts
90119-06753
90179-06060
90179-06159
90179-08249
