LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

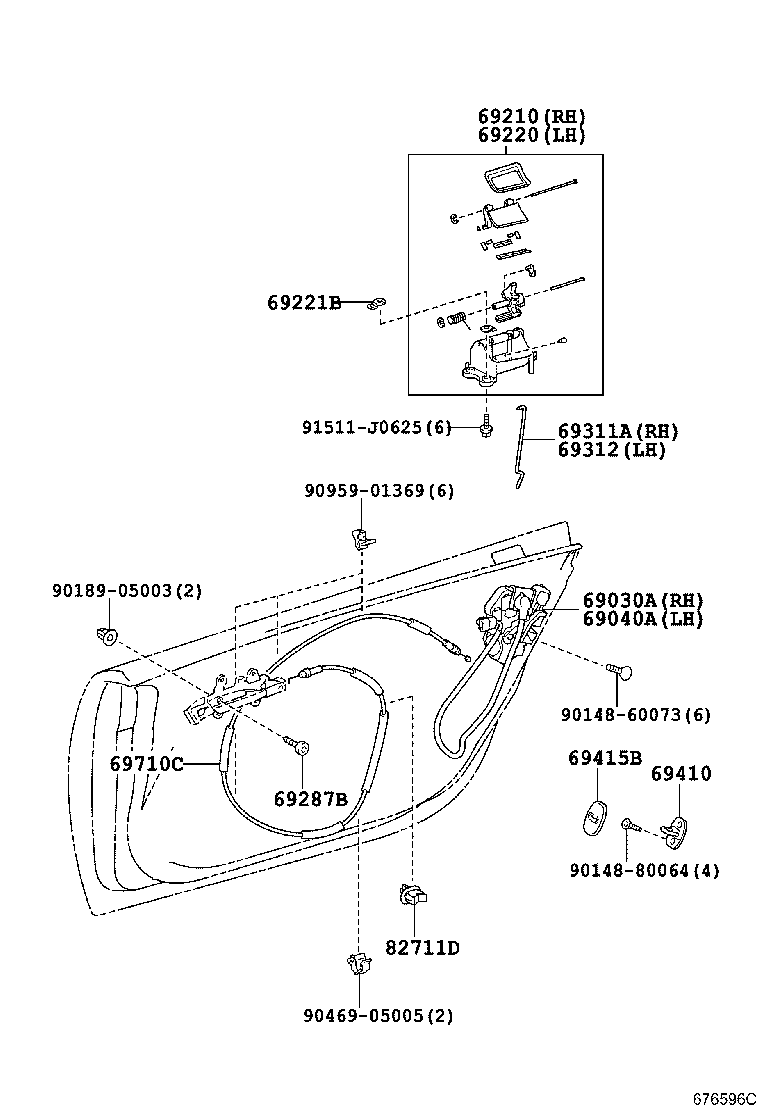

Click highlighted areas on diagram

diagram 69030A 69040A 69210 69220 69221B 69287B 69311A 69312 69410 69415B 69710C 82711D 9014860073 9014880064 9018905003 9046905005 9095901369 91511J0625
Part # Description Qty Price
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-77010

LFA10

 1
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-77010

LFA10

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-77020

LFA10

PAINT REQ.

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-77020

LFA10

PAINT REQ.

 1
69221B - PLATE, FRONT DOOR OUTSIDE HANDLE BASE
69221-77010

LFA10

 1
69287B - SHAFT, DOOR INSIDE HANDLE
69287-77010

LFA10

 2
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-77010

LFA10

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-77010

LFA10

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-77010

LFA10

 2
69415B - COVER, DOOR LOCK STRIKER, FRONT
69415-33010

LFA10

 2
69710C - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL
69710-77010

LFA10

 2
82711D - CLAMP, WIRING HARNESS
82711-1A770

LFA10

 2
Common parts
90148-60073
90148-80064
90189-05003
90469-05005
90959-01369
91511-J0625
