LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(1012- )
Click highlighted areas on diagram

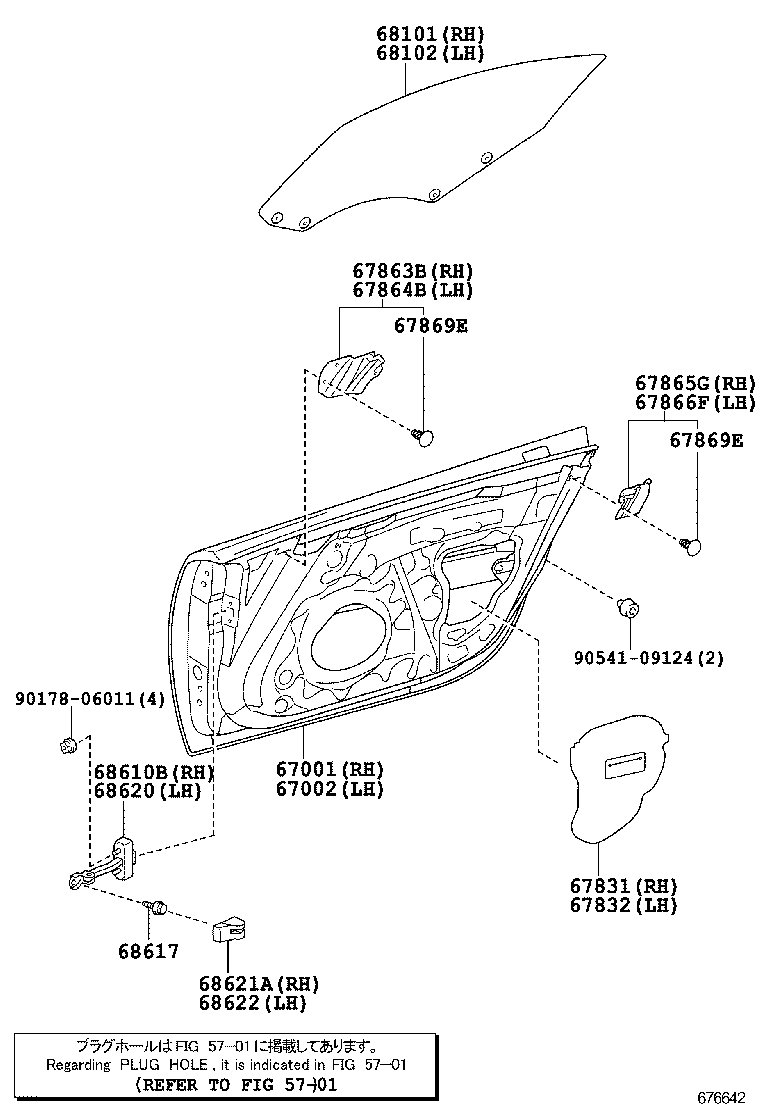

DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-77020B1 |
LFA10 GRAY |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-77020B1 |
LFA10 GRAY |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-77010 |
LFA10 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-77010 |
LFA10 |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-77010 |
LFA10 |
1 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-77010 |
LFA10 |
1 | ||
| 67865G - WEATHERSTRIP, FRONT DOOR, NO.3 RH | ||||
| 67865-77010 |
LFA10 |
1 | ||
| 67866F - WEATHERSTRIP, FRONT DOOR, NO.3 LH | ||||
| 67866-77010 |
LFA10 |
1 | ||
| 67869E - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-24010 |
LFA10 |
10 | ||
| 67869E - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-24010 |
LFA10 |
10 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-77010 |
LFA10 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-77010 |
LFA10 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-77010 |
LFA10 |
1 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-77010 |
LFA10 |
2 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-77010 |
LFA10 |
1 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-77010 |
LFA10 |
1 | ||
| 68622 - COVER, FRONT DOOR CHECK, LH | ||||
| 68622-77010 |
LFA10 |
1 | ||
| Common parts | ||||
| 90178-06011 | ||||
| 90541-09124 | ||||
| Linked diagrams | ||||
| 5701 | ||||
ILLUST NO. 2 OF 2(1012- )
Click highlighted areas on diagram

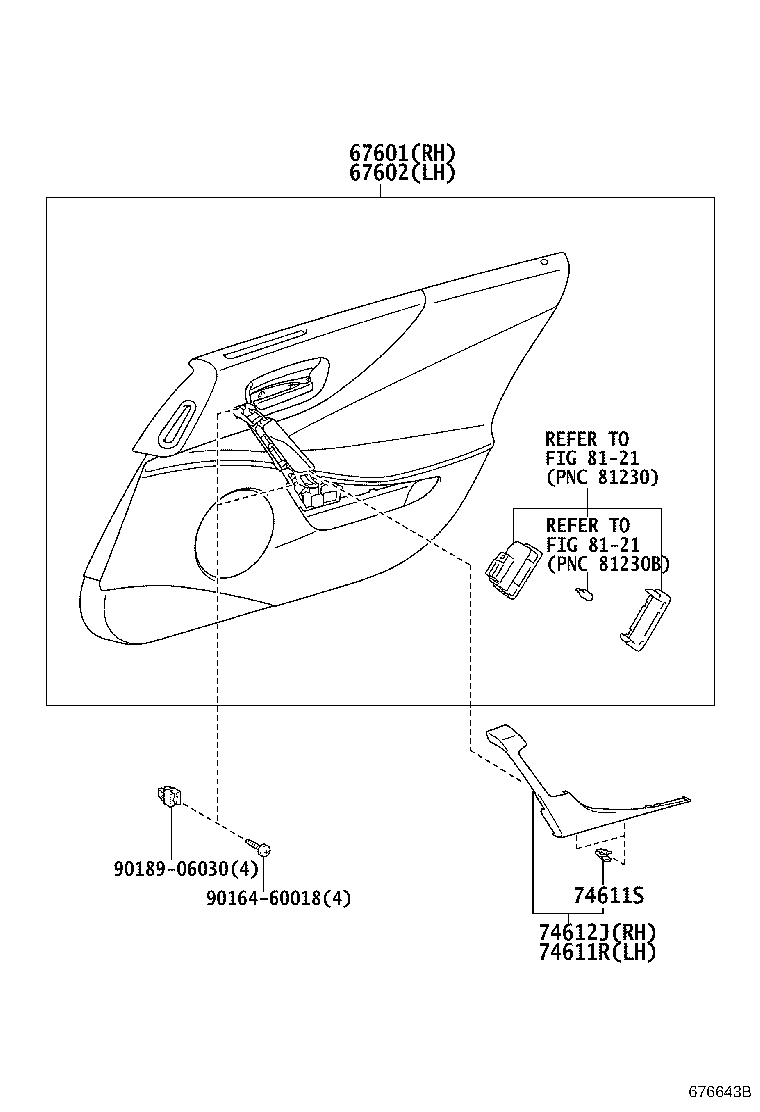

DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-77020 |

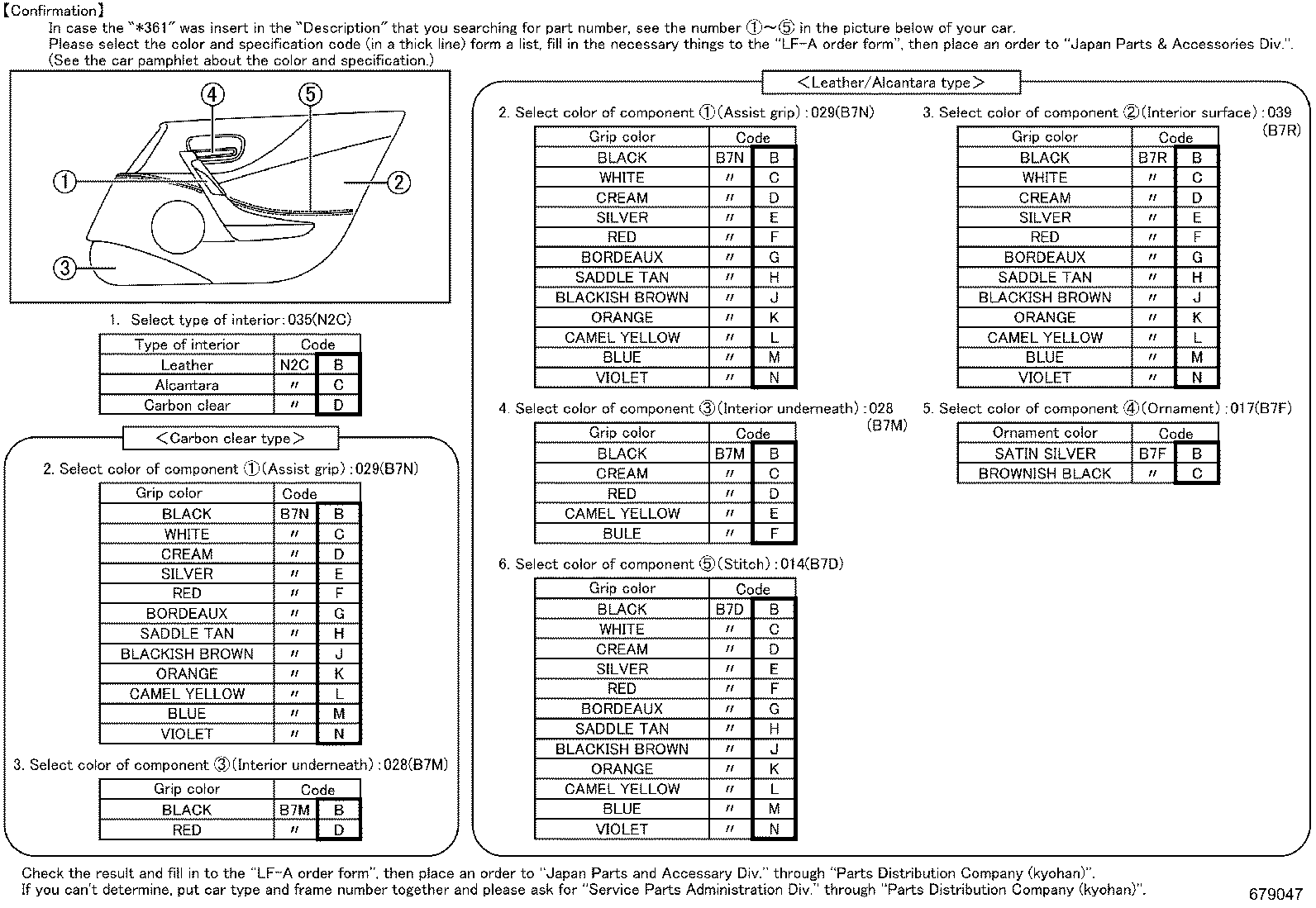

LFA10 *361 |
1 | ||
| 67610-77010 |
LFA10 INSTRUMENT PANEL-LEATHER & CARBON,*361 |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-77010 |
LFA10 INSTRUMENT PANEL-LEATHER & CARBON,*361 |
1 | ||
| 67620-77020 |
LFA10 *361 |
1 | ||
| 74611R - COVER, ASSIST GRIP, LH | ||||
| 74611-77010B0 |
LFA10 SATIN SILVER,TRIM20 |
1 | ||
| 74611-77010C0 |
LFA10 BROWNISH BLACK,TRIM20 |
1 | ||
| 74611S - CLIP | ||||
| 90467-13082A0 |
LFA10 MELLOW WHITE |
4 | ||
| 74612J - COVER, ASSIST GRIP, RH | ||||
| 74612-77010C0 |
LFA10 BROWNISH BLACK,TRIM20 |
1 | ||
| 74612-77010B0 |
LFA10 SATIN SILVER,TRIM20 |
1 | ||
| Common parts | ||||
| 90164-60018 | ||||
| 90189-06030 | ||||
| Linked diagrams | ||||
| 8121 | ||||
