LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

Click highlighted areas on diagram

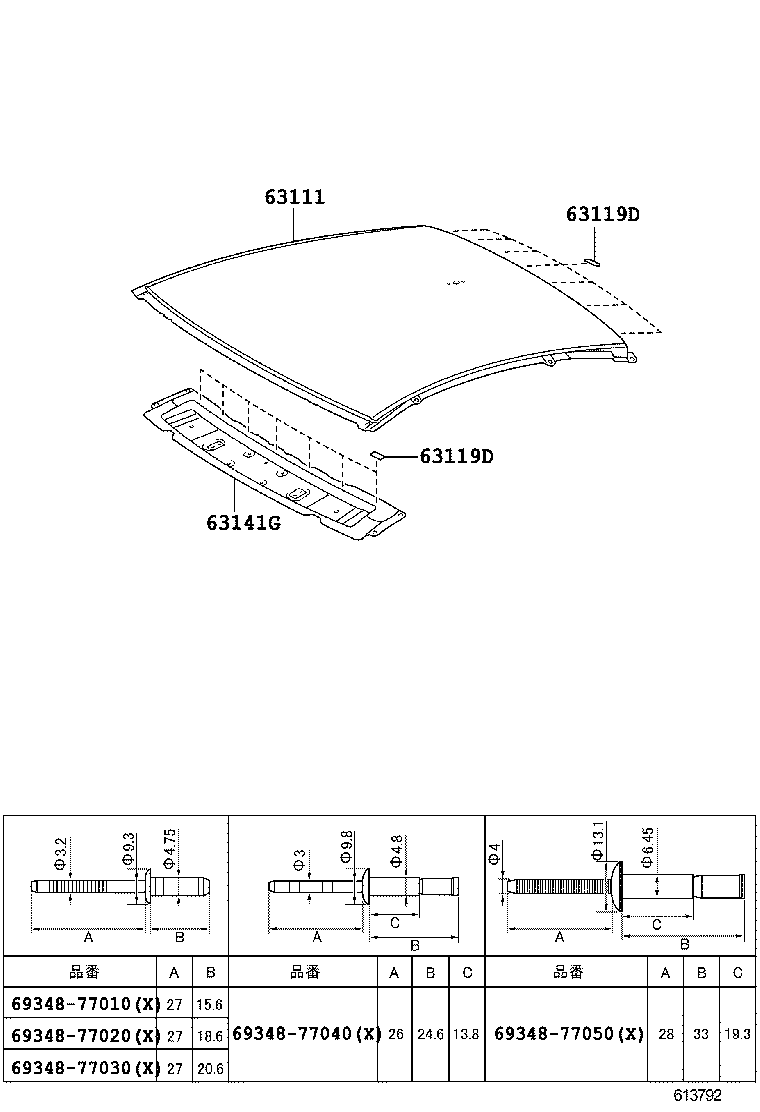

diagram 63111 63119D 63119D 63141G 6934877010 6934877020 6934877030 6934877040 6934877050
Part # Description Qty Price
63111 - PANEL, ROOF
63111-77040B1

LFA10

AUDIO-MARK LEVINSON 12SPEAKER&SATELLITE RADIO-WITH,GRAY

 1
63111-77030B1

LFA10

GRAY

 1
63119D - PAD, ROOF PANEL, NO.1
63119-77010

LFA10

 14
63119D - PAD, ROOF PANEL, NO.1
63119-77010

LFA10

 14
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-77010

LFA10

 1
Common parts
69348-77010
69348-77020
69348-77030
69348-77040
69348-77050
