LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

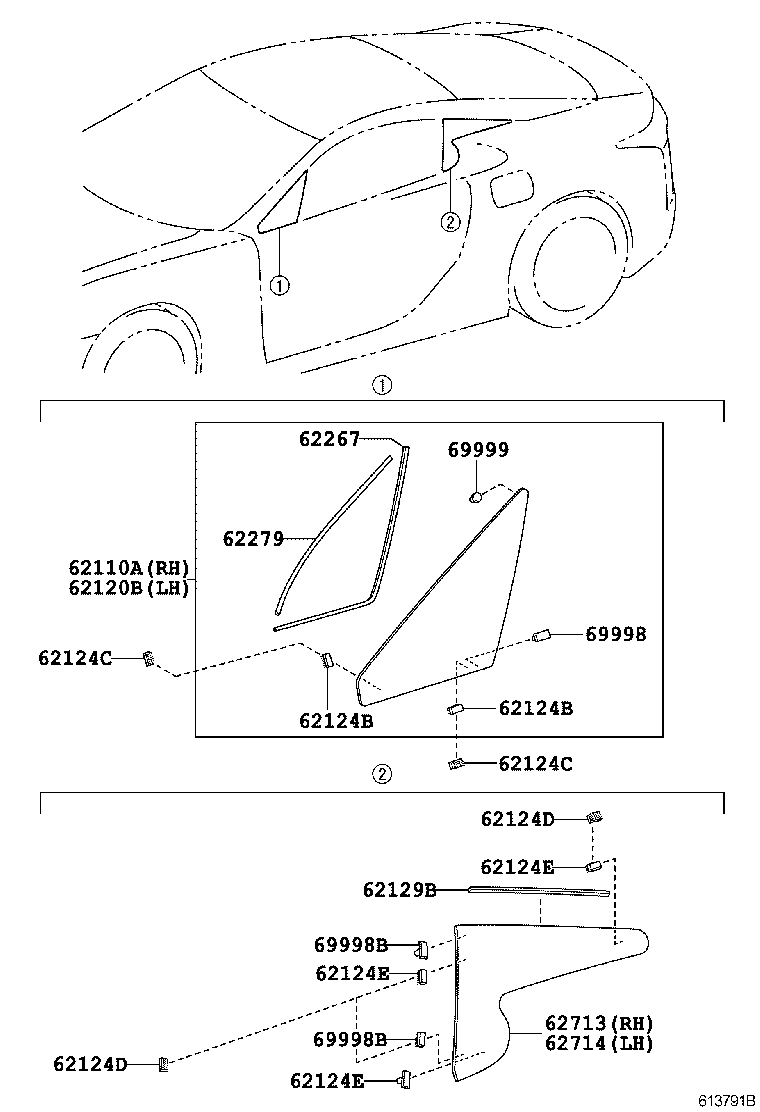

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62110A - WINDOW ASSY, FRONT SIDE FIX, RH | ||||
| 62110-77010 |
LFA10 |
1 | ||
| 62120B - WINDOW ASSY, FRONT SIDE FIX, LH | ||||
| 62120-77010 |
LFA10 |
1 | ||
| 62124B - FASTENER, FRONT SIDE WINDOW FIX | ||||
| 62124-77010 |
LFA10 |
4 | ||
| 62124B - FASTENER, FRONT SIDE WINDOW FIX | ||||
| 62124-77010 |
LFA10 |
4 | ||
| 62124C - FASTENER, FRONT SIDE WINDOW FIX NO.1 | ||||
| 62124-77010 |
LFA10 |
4 | ||
| 62124C - FASTENER, FRONT SIDE WINDOW FIX NO.1 | ||||
| 62124-77010 |
LFA10 |
4 | ||
| 62124D - FASTENER, FRONT SIDE WINDOW FIX NO.2 | ||||
| 62124-77010 |
LFA10 |
6 | ||
| 62124D - FASTENER, FRONT SIDE WINDOW FIX NO.2 | ||||
| 62124-77010 |
LFA10 |
6 | ||
| 62124E - FASTENER, FRONT SIDE WINDOW FIX NO.3 | ||||
| 62124-77010 |
LFA10 |
6 | ||
| 62124E - FASTENER, FRONT SIDE WINDOW FIX NO.3 | ||||
| 62124-77010 |
LFA10 |
6 | ||
| 62124E - FASTENER, FRONT SIDE WINDOW FIX NO.3 | ||||
| 62124-77010 |
LFA10 |
6 | ||
| 62129B - DAM, REAR SIDE WINDOW | ||||
| 56117-50140 |
LFA10 |
2 | ||
| 62267 - DAM, SIDE WINDOW ADHESIVE | ||||
| 56117-50140 |
LFA10 |
2 | ||
| 62279 - SPACER, SIDE WINDOW FRAME, UPPER | ||||
| 62279-77010 |
LFA10 |
2 | ||
| 62713 - GLASS, QUARTER WINDOW, REAR RH | ||||
| 62713-77010 |
LFA10 |
1 | ||
| 62714 - GLASS, QUARTER WINDOW, REAR LH | ||||
| 62714-77010 |
LFA10 |
1 | ||
| 69998 - PIN, QUARTER WINDOW GUIDE PIECE, NO.1 | ||||
| 69998-20020 |
LFA10 |
2 | ||
| 69998B - PIN, QUARTER WINDOW GUIDE PIECE, NO.2 | ||||
| 69998-20020 |
LFA10 |
4 | ||
| 69998B - PIN, QUARTER WINDOW GUIDE PIECE, NO.2 | ||||
| 69998-20020 |
LFA10 |
4 | ||
| 69999 - PIN, QUARTER WINDOW GUIDE PIECE, NO.2 | ||||
| 69999-77010 |
LFA10 |
2 | ||
