LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)

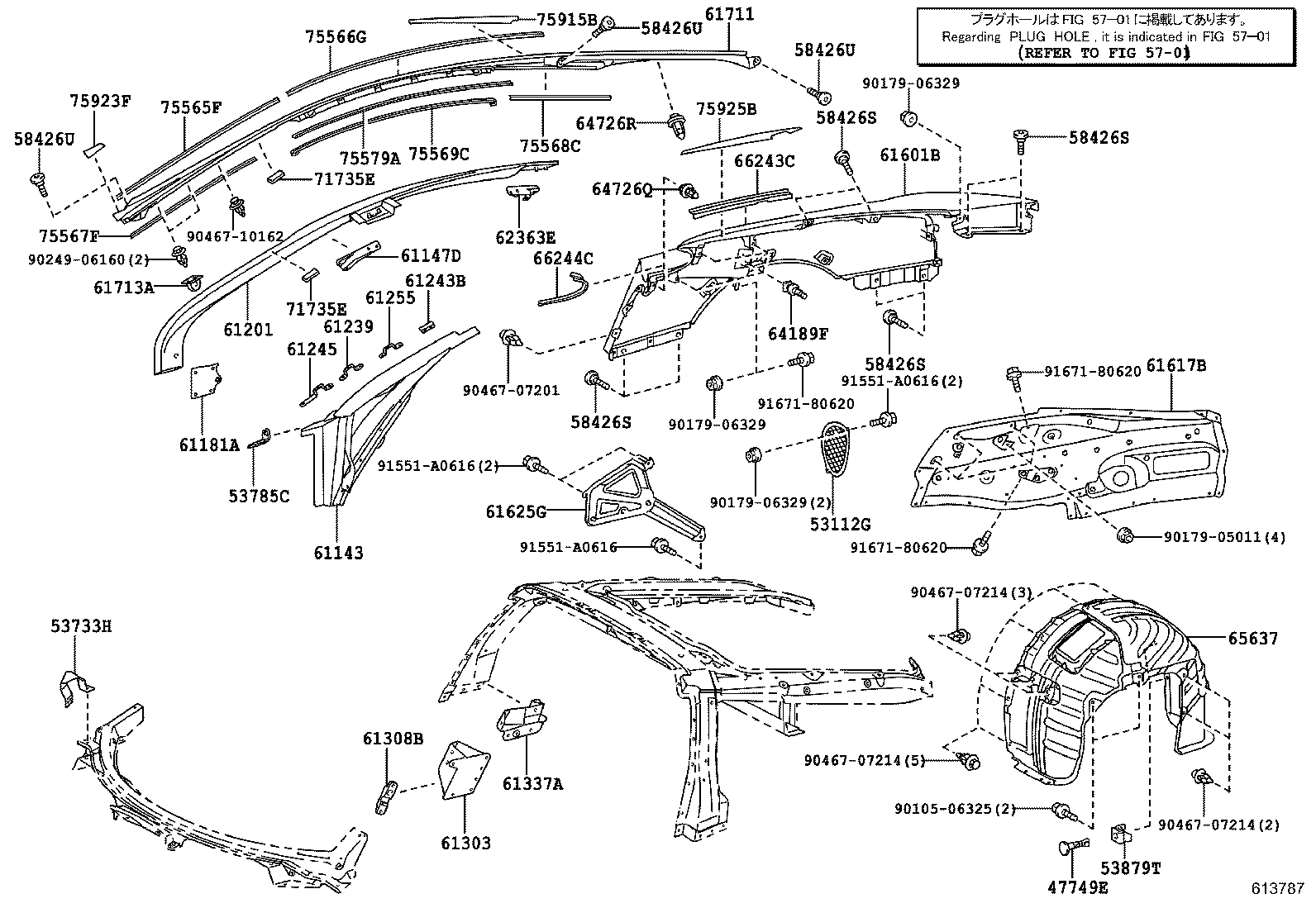

ILLUST NO. 1 OF 3(1012- )
Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749E - CLIP, PIN HOLD | ||||
| 47749-50090 |
LFA10 |
4 | ||
| 53112G - GRILLE, RADIATOR SIDE, RH | ||||
| 53112-77010 |
LFA10 |
1 | ||
| 53733H - PATCH, FRONT FENDER APRON TO DASH, RH | ||||
| 53733-77010 |
LFA10 |
1 | ||
| 53785C - GUSSET, FRONT FENDER APRON, UPPER RH | ||||
| 53785-77010 |
LFA10 |
1 | ||
| 53879T - RETAINER, REAR WHEEL HOUSE LINER | ||||
| 53879-50020 |
LFA10 |
4 | ||
| 58426S - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77020 |
LFA10 |
8 | ||
| 58426S - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77020 |
LFA10 |
8 | ||
| 58426S - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77020 |
LFA10 |
8 | ||
| 58426S - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77020 |
LFA10 |
8 | ||
| 58426U - PROTECTOR, ENGINE SUB COVER NO.1 | ||||
| 58426-77020 |
LFA10 |
3 | ||
| 58426U - PROTECTOR, ENGINE SUB COVER NO.1 | ||||
| 58426-77020 |
LFA10 |
3 | ||
| 58426U - PROTECTOR, ENGINE SUB COVER NO.1 | ||||
| 58426-77020 |
LFA10 |
3 | ||
| 61143 - GUSSET, FRONT PILLAR DOOR OPENING, UPPER RH | ||||
| 61143-77010 |
LFA10 |
1 | ||
| 61147D - EXTENSION, FRONT BODY PILLAR, UPPER OUTER RH | ||||
| 61147-77010 |
LFA10 |
1 | ||
| 61181A - BRACKET, INSTRUMENT SIDE, RH | ||||
| 61181-77010 |
LFA10 |
1 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-77010 |
LFA10 |
1 | ||
| 61239 - RETAINER, ROOF SIDE RAIL OUTER, RH | ||||
| 61239-77010 |
LFA10 |
1 | ||
| 61243B - PLATE, FRONT BODY PILLAR END, RH | ||||
| 61243-77010 |
LFA10 |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-77010 |
LFA10 |
1 | ||
| 61255 - PLATE, ROOF SIDE RAIL, OUTER RH | ||||
| 61255-77010 |
LFA10 |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-77020 |
LFA10 |
1 | ||
| 61308B - RETAINER SUB-ASSY, DOOR LOCK STRIKER, RH | ||||
| 61308-77020 |
LFA10 |
1 | ||
| 61337A - REINFORCEMENT, CENTER BODY PILLAR, INNER RH | ||||
| 61337-77010 |
LFA10 |
1 | ||
| 61601B - PANEL SUB-ASSY, QUARTER, RH | ||||
| 61601-77040B1 |
LFA10 REAR SPOILER-ELECTRICAL CON,W(QUARTER FIN),GRAY |
1 | ||
| 61601-77030B1 |
LFA10 GRAY |
1 | ||
| 61601-77040B1 |
LFA10 REAR SPOILER-FIXED,W(QUARTER FIN),GRAY |
1 | ||
| 61617B - PANEL, QUARTER INNER, LOWER RH | ||||
| 61617-77010 |
LFA10 |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-77010 |
LFA10 |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-77020B1 |
LFA10 GRAY |
1 | ||
| 61713A - EXTENSION, ROOF SIDE, OUTER RH | ||||
| 61713-77010 |
LFA10 |
2 | ||
| 62363E - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, CENTER RH | ||||
| 62363-77010 |
LFA10 |
1 | ||
| 64189F - BOLT, REAR BODY MOUNTING | ||||
| 64189-30010 |
LFA10 |
4 | ||
| 64726Q - CLIP, QUARTER PANEL | ||||
| 64726-77010 |
LFA10 |
1 | ||
| 64726R - CLIP, ROOF SIDE PANEL | ||||
| 64726-77010 |
LFA10 |
6 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-77010 |
LFA10 |
1 | ||
| 66243C - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-77010 |
LFA10 |
1 | ||
| 66244C - PROTECTOR, REAR BODY, NO.2 | ||||
| 66245-77010 |
LFA10 |
1 | ||
| 71735E - FASTENER, ROOF SIDE PANEL | ||||
| 71735-77010 |
LFA10 |
2 | ||
| 71735E - FASTENER, ROOF SIDE PANEL | ||||
| 71735-77010 |
LFA10 |
2 | ||
| 75565F - PROTECTOR, ROOF SIDE GARNISH, NO.1 | ||||
| 75565-77010 |
LFA10 |
1 | ||
| 75566G - PROTECTOR, ROOF SIDE GARNISH, NO.2 | ||||
| 75566-77010 |
LFA10 |
1 | ||
| 75567F - PROTECTOR, ROOF SIDE GARNISH, NO.3 | ||||
| 75567-77010 |
LFA10 |
1 | ||
| 75568C - PROTECTOR, ROOF SIDE GARNISH, NO.4 | ||||
| 75568-77010 |
LFA10 |
1 | ||
| 75569C - SEAL, ROOF SIDE GARNISH NO.1 | ||||
| 75569-77010 |
LFA10 |
1 | ||
| 75579A - SEAL, ROOF SIDE GARNISH NO.2 | ||||
| 75579-77010 |
LFA10 |
1 | ||
| 75915B - TAPE, BLACK OUT NO.1 | ||||
| 75915-77010 |
LFA10 |
1 | ||
| 75923F - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-77010 |
LFA10 |
1 | ||
| 75925B - TAPE, BLACK OUT, NO.3 RH | ||||
| 75921-77010 |
LFA10 |
1 | ||
| Common parts | ||||
| 90105-06325 | ||||
| 90179-05011 | ||||
| 90179-06329 | ||||
| 90249-06160 | ||||
| 90467-07201 | ||||
| 90467-07214 | ||||
| 90467-10162 | ||||
| 91551-A0616 | ||||
| 91671-80620 | ||||
| Linked diagrams | ||||
| 5701 | ||||

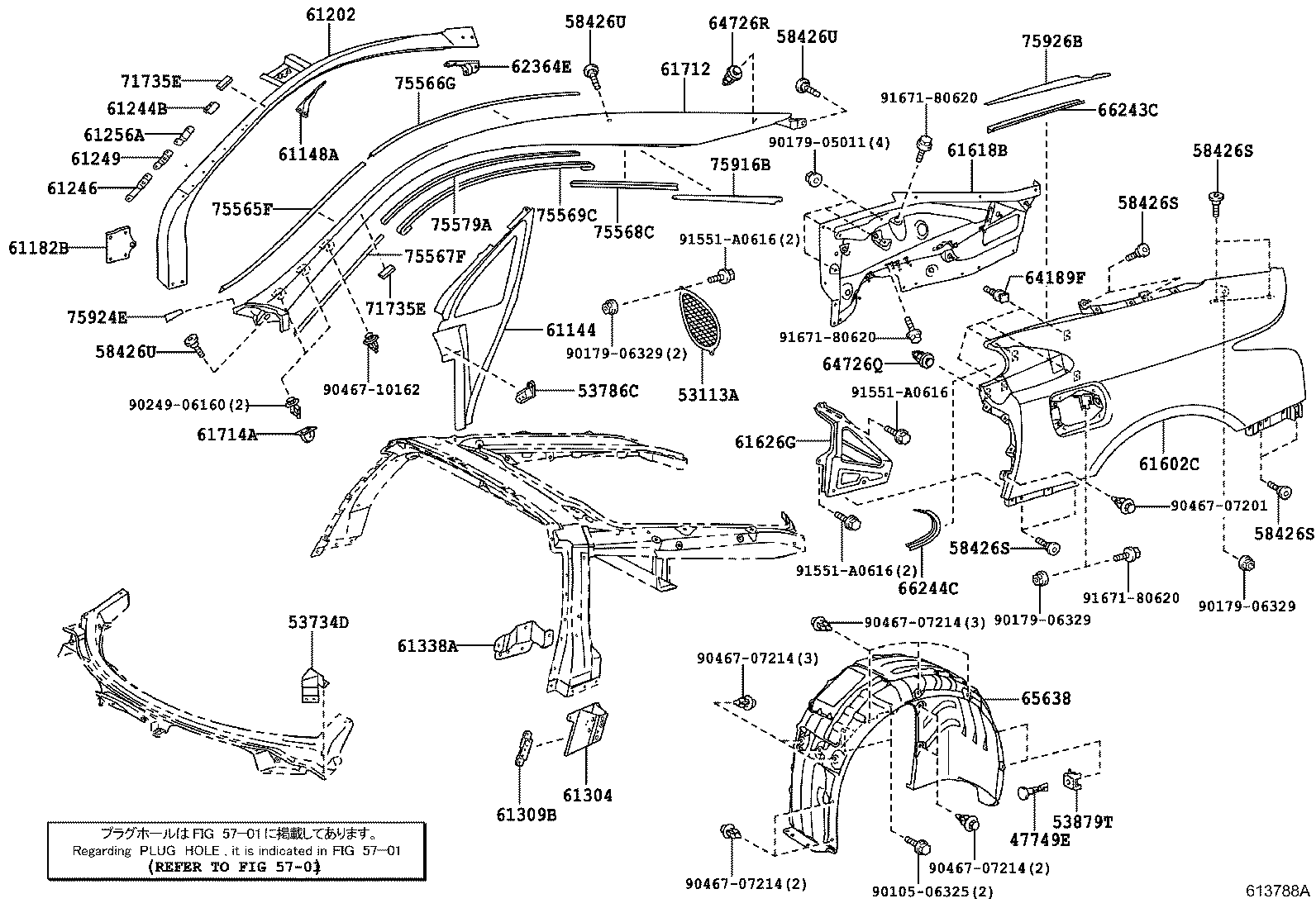

ILLUST NO. 2 OF 3(1012- )
Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749E - CLIP, PIN HOLD | ||||
| 47749-50090 |
LFA10 |
4 | ||
| 53113A - GRILLE, RADIATOR SIDE, LH | ||||
| 53113-77010 |
LFA10 |
1 | ||
| 53734D - PATCH, FRONT FENDER APRON TO DASH, LH | ||||
| 53734-77010 |
LFA10 |
1 | ||
| 53786C - GUSSET, FRONT FENDER APRON, UPPER LH | ||||
| 53786-77010 |
LFA10 |
1 | ||
| 53879T - RETAINER, REAR WHEEL HOUSE LINER | ||||
| 53879-50020 |
LFA10 |
4 | ||
| 58426S - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77020 |
LFA10 |
8 | ||
| 58426S - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77020 |
LFA10 |
8 | ||
| 58426S - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77020 |
LFA10 |
8 | ||
| 58426S - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77020 |
LFA10 |
8 | ||
| 58426U - PROTECTOR, ENGINE SUB COVER NO.1 | ||||
| 58426-77020 |
LFA10 |
3 | ||
| 58426U - PROTECTOR, ENGINE SUB COVER NO.1 | ||||
| 58426-77020 |
LFA10 |
3 | ||
| 58426U - PROTECTOR, ENGINE SUB COVER NO.1 | ||||
| 58426-77020 |
LFA10 |
3 | ||
| 61144 - GUSSET, FRONT PILLAR DOOR OPENING, UPPER LH | ||||
| 61144-77010 |
LFA10 |
1 | ||
| 61148A - EXTENSION, FRONT BODY PILLAR, UPPER OUTER LH | ||||
| 61148-77010 |
LFA10 |
1 | ||
| 61182B - BRACKET, INSTRUMENT PANEL SIDE, NO.1 LH | ||||
| 61182-77010 |
LFA10 |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-77010 |
LFA10 |
1 | ||
| 61244B - PLATE, FRONT BODY PILLAR END, LH | ||||
| 61244-77010 |
LFA10 |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-77010 |
LFA10 |
1 | ||
| 61249 - RETAINER, ROOF SIDE RAIL, OUTER LH | ||||
| 61249-77010 |
LFA10 |
1 | ||
| 61256A - PLATE, ROOF SIDE RAIL, OUTER LH | ||||
| 61256-77010 |
LFA10 |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-77020 |
LFA10 |
1 | ||
| 61309B - RETAINER SUB-ASSY, DOOR LOCK STRIKER, LH | ||||
| 61309-77020 |
LFA10 |
1 | ||
| 61338A - REINFORCEMENT, CENTER BODY PILLAR, INNER LH | ||||
| 61338-77010 |
LFA10 |
1 | ||
| 61602C - PANEL SUB-ASSY, QUARTER, LH | ||||
| 61602-77040B1 |
LFA10 REAR SPOILER-FIXED,W(QUARTER FIN),GRAY |
1 | ||
| 61602-77040B1 |
LFA10 REAR SPOILER-ELECTRICAL CON,W(QUARTER FIN),GRAY |
1 | ||
| 61602-77030B1 |
LFA10 GRAY |
1 | ||
| 61618B - PANEL, QUARTER, INNER LOWER LH | ||||
| 61618-77010 |
LFA10 |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-77010 |
LFA10 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-77020B1 |
LFA10 GRAY |
1 | ||
| 61714A - EXTENSION, ROOF SIDE, OUTER LH | ||||
| 61713-77010 |
LFA10 |
2 | ||
| 62364E - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, CENTER LH | ||||
| 62364-77010 |
LFA10 |
1 | ||
| 64189F - BOLT, REAR BODY MOUNTING | ||||
| 64189-30010 |
LFA10 |
4 | ||
| 64726Q - CLIP, QUARTER PANEL | ||||
| 64726-77010 |
LFA10 |
1 | ||
| 64726R - CLIP, ROOF SIDE PANEL | ||||
| 64726-77010 |
LFA10 |
6 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-77010 |
LFA10 |
1 | ||
| 66243C - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-77010 |
LFA10 |
1 | ||
| 66244C - PROTECTOR, REAR BODY, NO.2 | ||||
| 66245-77010 |
LFA10 |
1 | ||
| 71735E - FASTENER, ROOF SIDE PANEL | ||||
| 71735-77010 |
LFA10 |
2 | ||
| 71735E - FASTENER, ROOF SIDE PANEL | ||||
| 71735-77010 |
LFA10 |
2 | ||
| 75565F - PROTECTOR, ROOF SIDE GARNISH, NO.1 | ||||
| 75565-77010 |
LFA10 |
1 | ||
| 75566G - PROTECTOR, ROOF SIDE GARNISH, NO.2 | ||||
| 75566-77010 |
LFA10 |
1 | ||
| 75567F - PROTECTOR, ROOF SIDE GARNISH, NO.3 | ||||
| 75567-77010 |
LFA10 |
1 | ||
| 75568C - PROTECTOR, ROOF SIDE GARNISH, NO.4 | ||||
| 75568-77010 |
LFA10 |
1 | ||
| 75569C - SEAL, ROOF SIDE GARNISH NO.1 | ||||
| 75569-77010 |
LFA10 |
1 | ||
| 75579A - SEAL, ROOF SIDE GARNISH NO.2 | ||||
| 75579-77010 |
LFA10 |
1 | ||
| 75916B - TAPE, BLACK OUT, LH | ||||
| 75916-77010 |
LFA10 |
1 | ||
| 75924E - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-77010 |
LFA10 |
1 | ||
| 75926B - TAPE, BLACK OUT, NO.3 LH | ||||
| 75922-77010 |
LFA10 |
1 | ||
| Common parts | ||||
| 90105-06325 | ||||
| 90179-05011 | ||||
| 90179-06329 | ||||
| 90249-06160 | ||||
| 90467-07201 | ||||
| 90467-07214 | ||||
| 90467-10162 | ||||
| 91551-A0616 | ||||
| 91671-80620 | ||||
| Linked diagrams | ||||
| 5701 | ||||

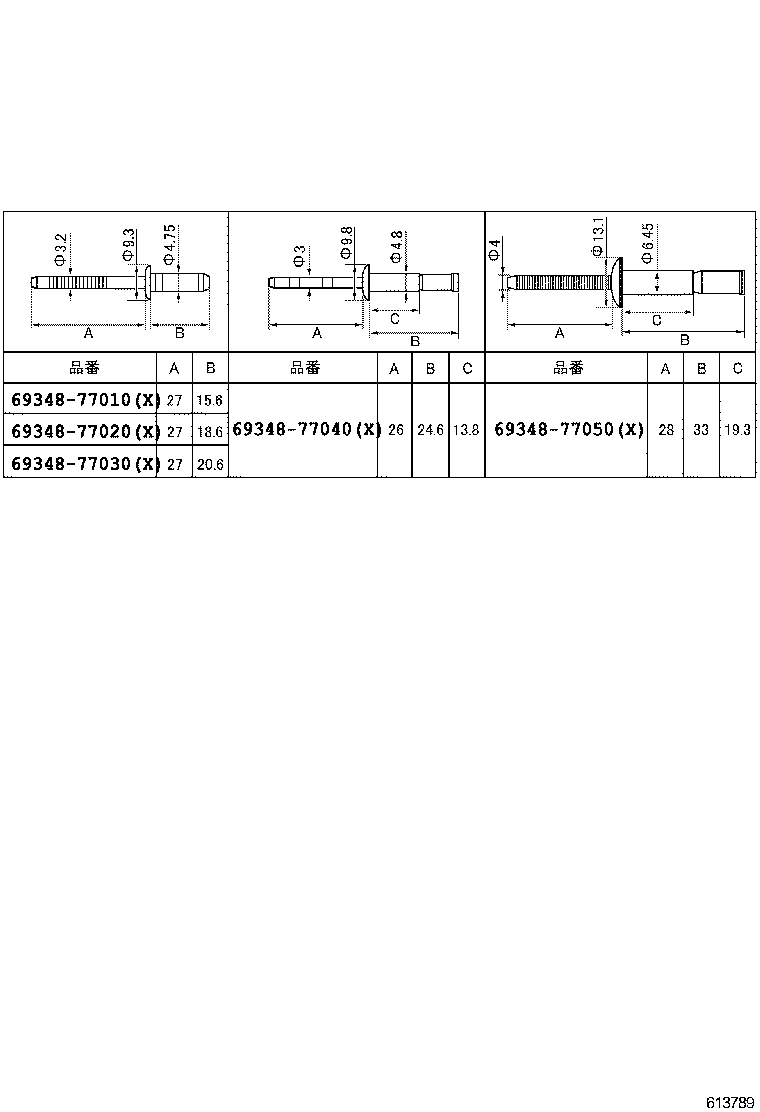

ILLUST NO. 3 OF 3(1012- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 69348-77010 | ||||
| 69348-77020 | ||||
| 69348-77030 | ||||
| 69348-77040 | ||||
| 69348-77050 | ||||
