LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

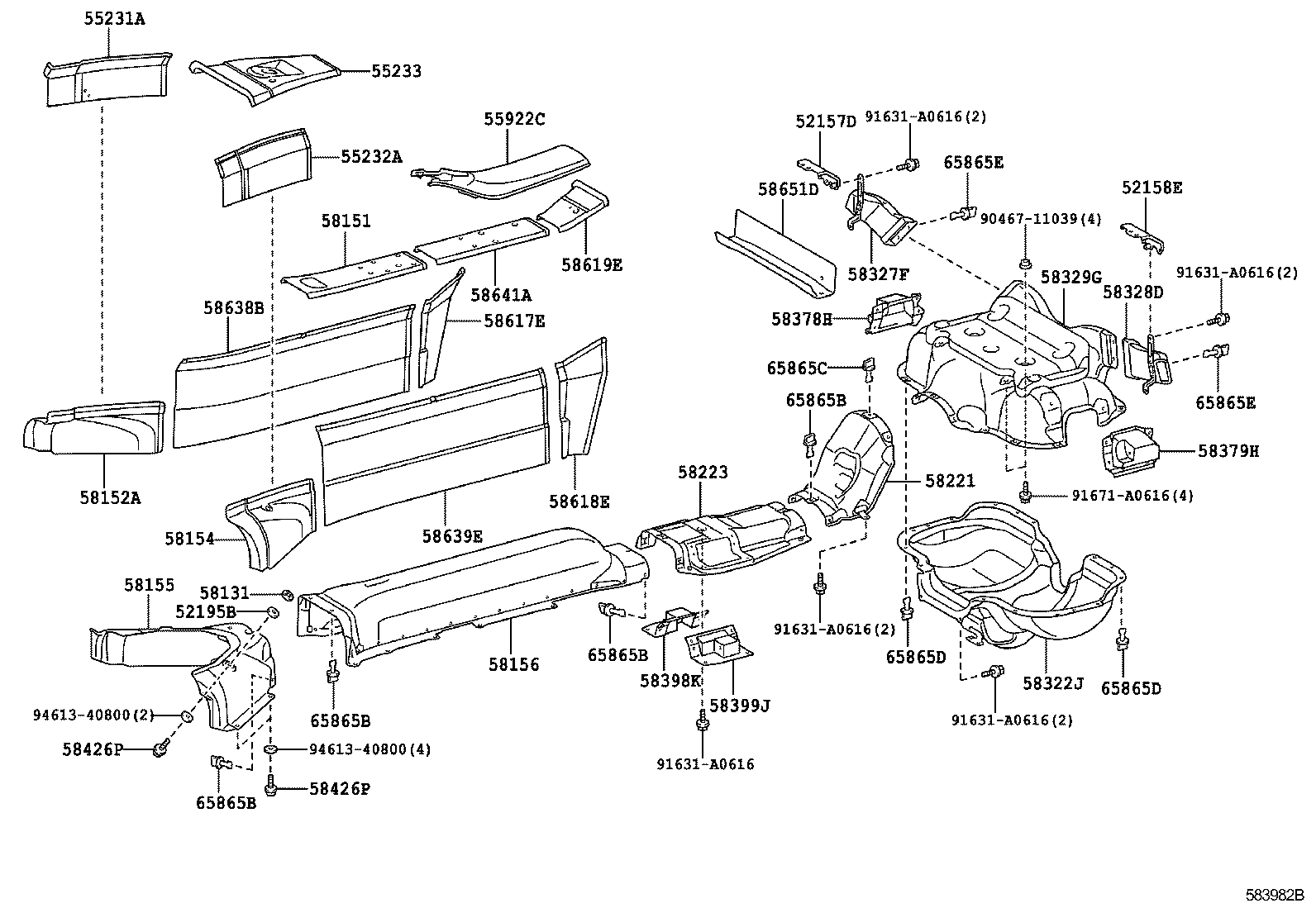

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52157D - STAY, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-77010 |
LFA10 |
1 | ||
| 52158E - STAY, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-77010 |
LFA10 |
1 | ||
| 52195B - SPACER, REAR BUMPER EXTENSION, RH | ||||
| 52195-53010 |
LFA10 |
2 | ||
| 55231A - SHEET, DASH PANEL INSULATOR, RH | ||||
| 55231-77010 |
LFA10 |
1 | ||
| 55232A - SHEET, DASH PANEL INSULATOR, LH | ||||
| 55232-77010 |
LFA10 |
1 | ||
| 55233 - SHEET, DASH PANEL INSULATOR | ||||
| 55233-77010 |
LFA10 |
1 | ||
| 55922C - SPRING, WASHER | ||||
| 55922-77010 |
LFA10 |
4 | ||
| 58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-77010 |
LFA10 |
2 | ||
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-77010 |
LFA10 |
1 | ||
| 58152A - INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER | ||||
| 58152-77010 |
LFA10 |
1 | ||
| 58154 - INSULATOR, FRONT FLOOR HEAT, NO.2 LOWER | ||||
| 58154-77010 |
LFA10 |
1 | ||
| 58155 - INSULATOR, FRONT FLOOR HEAT, NO.3 | ||||
| 58155-77010 |
LFA10 |
1 | ||
| 58156 - INSULATOR, FRONT FLOOR HEAT, NO.4 | ||||
| 58156-77010 |
LFA10 |
1 | ||
| 58221 - INSULATOR, CENTER FLOOR HEAT, NO.1 | ||||
| 58221-77010 |
LFA10 |
1 | ||
| 58223 - INSULATOR, CENTER FLOOR HEAT, NO.2 | ||||
| 58223-77010 |
LFA10 |
1 | ||
| 58322J - INSULATOR, REAR FLOOR HEAT, LOWER | ||||
| 58322-77010 |
LFA10 |
1 | ||
| 58327F - INSULATOR, MAIN MUFFLER HEAT, RH | ||||
| 58327-77010 |
LFA10 |
1 | ||
| 58328D - INSULATOR, MAIN MUFFLER HEAT, LH | ||||
| 58328-77010 |
LFA10 |
1 | ||
| 58329G - INSULATOR, MAIN MUFFLER HEAT, REAR UPPER | ||||
| 58329-77010 |
LFA10 |
1 | ||
| 58378H - COVER, LOWER BACK TRIM RETAINER, RH | ||||
| 58378-77010 |
LFA10 |
1 | ||
| 58379H - COVER, LOWER BACK TRIM RETAINER, LH | ||||
| 58379-77010 |
LFA10 |
1 | ||
| 58398K - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-77010 |
LFA10 |
1 | ||
| 58399J - COVER, FLOOR UNDER, NO.2 | ||||
| 58399-77010 |
LFA10 |
1 | ||
| 58426P - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77030 |
LFA10 |
6 | ||
| 58426P - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77030 |
LFA10 |
6 | ||
| 58617E - SHEET, CENTER FLOOR SILENCER, REAR RH | ||||
| 58617-77010 |
LFA10 |
1 | ||
| 58618E - SHEET, CENTER FLOOR SILENCER, REAR LH | ||||
| 58618-77010 |
LFA10 |
1 | ||
| 58619E - SHEET, CENTER FLOOR SILENCER, REAR CENTER | ||||
| 58619-77010 |
LFA10 |
1 | ||
| 58638B - SHEET, FRONT SEAT FLOOR SILENCER, RH | ||||
| 58638-77010 |
LFA10 |
1 | ||
| 58639E - SHEET, FRONT SEAT FLOOR SILENCER, LH | ||||
| 58639-77010 |
LFA10 |
1 | ||
| 58641A - SHEET, FRONT FLOOR SILENCER, REAR | ||||
| 58641-77010 |
LFA10 |
1 | ||
| 58651D - SHEET, REAR FLOOR SILENCER, NO.1 | ||||
| 58651-77010 |
LFA10 |
1 | ||
| 65865B - PIN, COVER TOP GUIDE | ||||
| 65865-77010 |
LFA10 |
7 | ||
| 65865B - PIN, COVER TOP GUIDE | ||||
| 65865-77010 |
LFA10 |
7 | ||
| 65865B - PIN, COVER TOP GUIDE | ||||
| 65865-77010 |
LFA10 |
7 | ||
| 65865B - PIN, COVER TOP GUIDE | ||||
| 65865-77010 |
LFA10 |
7 | ||
| 65865C - PIN, COVER TOP GUIDE | ||||
| 65865-77010 |
LFA10 |
3 | ||
| 65865D - PIN, COVER TOP GUIDE | ||||
| 65865-77010 |
LFA10 |
12 | ||
| 65865D - PIN, COVER TOP GUIDE | ||||
| 65865-77010 |
LFA10 |
12 | ||
| 65865E - PIN, COVER TOP GUIDE | ||||
| 65865-77010 |
LFA10 |
4 | ||
| 65865E - PIN, COVER TOP GUIDE | ||||
| 65865-77010 |
LFA10 |
4 | ||
| Common parts | ||||
| 90467-11039 | ||||
| 91631-A0616 | ||||
| 91671-A0616 | ||||
| 94613-40800 | ||||
