LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

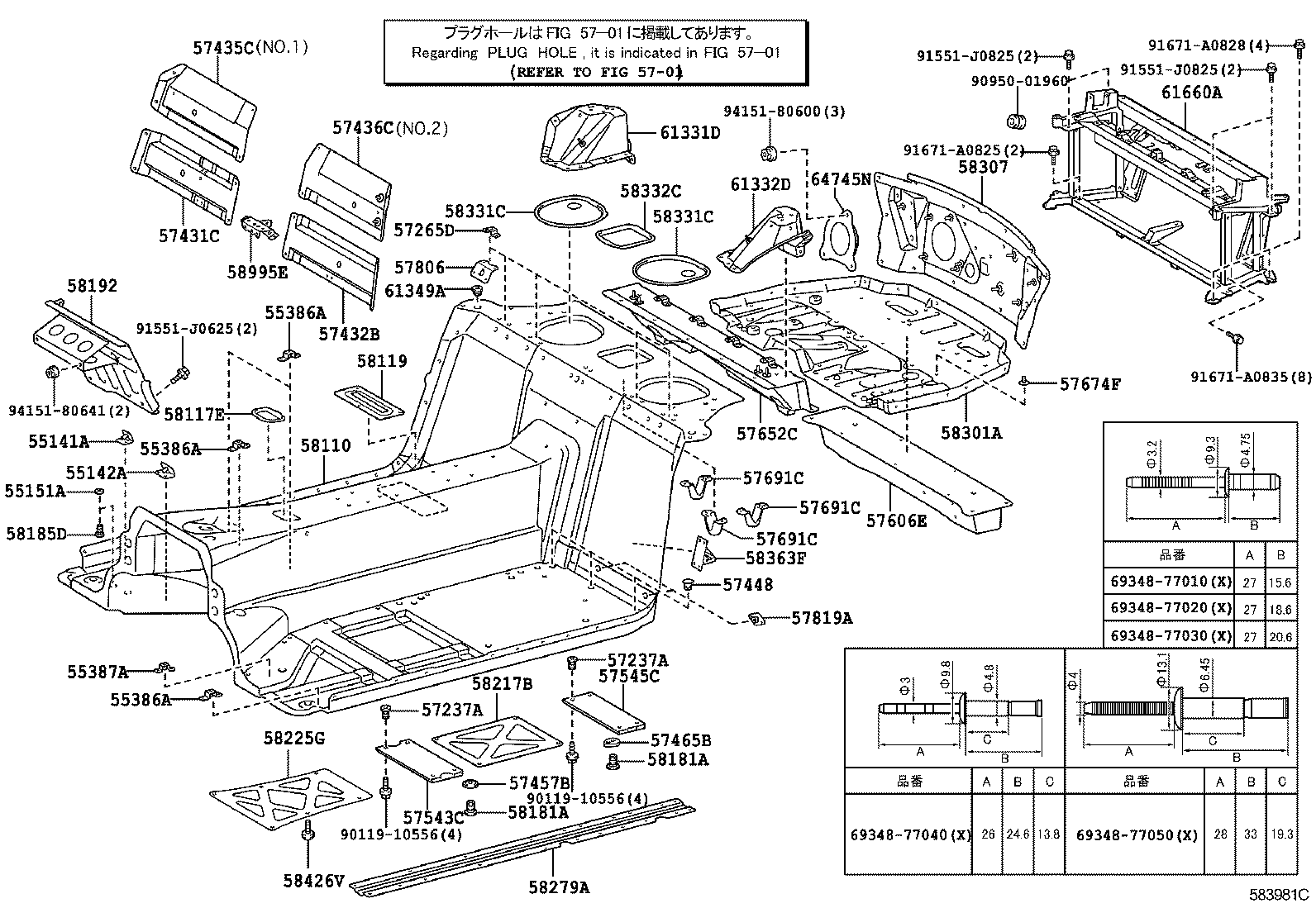

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55141A - BRACKET, FOOT REST MOUNTING | ||||
| 55141-77010 |
LFA10 |
2 | ||
| 55142A - BRACKET, FOOT REST MOUNTING, NO.2 | ||||
| 55142-77010 |
LFA10 |
1 | ||
| 55151A - BRACKET, PEDAL | ||||
| 55151-77020 |
LFA10 |
2 | ||
| 55386A - BRACKET, COMPUTER MOUNTING, NO.1 | ||||
| 55386-77010 |
LFA10 |
5 | ||
| 55386A - BRACKET, COMPUTER MOUNTING, NO.1 | ||||
| 55386-77010 |
LFA10 |
5 | ||
| 55386A - BRACKET, COMPUTER MOUNTING, NO.1 | ||||
| 55386-77010 |
LFA10 |
5 | ||
| 55387A - BRACKET, COMPUTER MOUNTING, NO.2 | ||||
| 55387-77010 |
LFA10 |
1 | ||
| 57237A - RETAINER, CENTER ARM | ||||
| 57237-77020 |
LFA10 |
8 | ||
| 57237A - RETAINER, CENTER ARM | ||||
| 57237-77020 |
LFA10 |
8 | ||
| 57265D - BRACKET, FLOOR CROSS STRENGTH, NO.1 | ||||
| 57265-77010 |
LFA10 |
4 | ||
| 57431C - REINFORCEMENT, CENTER FLOOR, NO.1 RH | ||||
| 57431-77010 |
LFA10 |
1 | ||
| 57432B - STRENGTH, FRONT FLOOR, REAR LOWER NO.2 | ||||
| 57432-77010 |
LFA10 |
1 | ||
| 57435C - STRENGTH, UPPER REAR FLOOR, NO.1 | ||||
| 57435-77010 |
LFA10 |
1 | ||
| 57436C - STRENGTH, UPPER REAR FLOOR, NO.2 | ||||
| 57436-77010 |
LFA10 |
1 | ||
| 57448 - RETAINER, CENTER FLOOR CROSSMEMBER | ||||
| 57448-77020 |
LFA10 |
6 | ||
| 57457B - BRACKET, FRONT SEAT, FRONT | ||||
| 57457-77020 |
LFA10 |
4 | ||
| 57465B - BRACKET, FRONT SEAT, INNER | ||||
| 57465-77010 |
LFA10 |
4 | ||
| 57543C - BRACE, CENTER FLOOR, NO.1 | ||||
| 57543-77010 |
LFA10 |
1 | ||
| 57545C - BRACE, CENTER FLOOR, NO.2 | ||||
| 57545-77010 |
LFA10 |
1 | ||
| 57606E - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-77010 |
LFA10 |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-77010 |
LFA10 |
1 | ||
| 57674F - GUIDE, WIRE HARNESS | ||||
| 57674-77010 |
LFA10 |
1 | ||
| 57691C - BRACKET, FUEL TANK STOPPER, RH | ||||
| 57691-77010 |
LFA10 |
3 | ||
| 57691C - BRACKET, FUEL TANK STOPPER, RH | ||||
| 57691-77010 |
LFA10 |
3 | ||
| 57691C - BRACKET, FUEL TANK STOPPER, RH | ||||
| 57691-77010 |
LFA10 |
3 | ||
| 57806 - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH | ||||
| 57806-77010 |
LFA10 |
4 | ||
| 57819A - REINFORCEMENT, BELT ANCHOR, NO.2 | ||||
| 57819-77020 |
LFA10 |
4 | ||
| 58110 - PANEL ASSY, FRONT FLOOR | ||||
| 58110-77010 |
LFA10 |
1 | ||
| 58117E - PANEL, FRONT FLOOR SUB COVER | ||||
| 58117-77010 |
LFA10 |
1 | ||
| 58119 - PLATE, FRONT FLOOR SIDE, FRONT | ||||
| 58119-77010 |
LFA10 |
1 | ||
| 58181A - RETAINER, SEAT RAIL, FRONT | ||||
| 58181-77020 |
LFA10 |
8 | ||
| 58181A - RETAINER, SEAT RAIL, FRONT | ||||
| 58181-77020 |
LFA10 |
8 | ||
| 58185D - PLATE, ACCELERATOR PEDAL MOUNTING | ||||
| 58185-77020 |
LFA10 |
2 | ||
| 58192 - PANEL, FOOTREST | ||||
| 58192-77010 |
LFA10 |
1 | ||
| 58217B - PLATE, FRONT FLOOR | ||||
| 58217-77010 |
LFA10 |
1 | ||
| 58225G - PLATE, FLOOR PANEL FRONT END | ||||
| 58225-77010 |
LFA10 |
1 | ||
| 58279A - PROTECTOR, FUEL HOSE | ||||
| 58279-77010 |
LFA10 |
1 | ||
| 58301A - PANEL SUB-ASSY, REAR FLOOR | ||||
| 58301-77010 |
LFA10 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-77010 |
LFA10 |
1 | ||
| 58331C - COVER, REAR FLOOR SIDE SERVICE HOLE, RH | ||||
| 58331-77010 |
LFA10 |
2 | ||
| 58331C - COVER, REAR FLOOR SIDE SERVICE HOLE, RH | ||||
| 58331-77010 |
LFA10 |
2 | ||
| 58332C - COVER, REAR FLOOR SIDE SERVICE HOLE, LH | ||||
| 58332-77010 |
LFA10 |
1 | ||
| 58363F - SUPPORT, FUEL TANK, FRONT | ||||
| 58363-77010 |
LFA10 |
2 | ||
| 58426V - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77030 |
LFA10 |
10 | ||
| 58995E - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-77010 |
LFA10 |
1 | ||
| 61331D - REINFORCEMENT, CENTER BODY PILLAR, OUTER REAR RH | ||||
| 61331-77010 |
LFA10 |
1 | ||
| 61332D - REINFORCEMENT, CENTER BODY PILLAR, OUTER REAR LH | ||||
| 61332-77010 |
LFA10 |
1 | ||
| 61349A - PATCH, BELT ANCHOR TO CENTER PILLAR | ||||
| 61349-77020 |
LFA10 |
2 | ||
| 61660A - EXTENSION ASSY, QUARTER OUTER PANEL | ||||
| 61660-77010 |
LFA10 REAR SPOILER-FIXED,W(QUARTER FIN) |
1 | ||
| 61660-77010 |
LFA10 REAR SPOILER-FIXED CARBON CLEAR |
1 | ||
| 64745N - COVER, LOWER BACK SERVICE HOLE | ||||
| 64745-77010 |
LFA10 |
1 | ||
| Common parts | ||||
| 69348-77010 | ||||
| 69348-77020 | ||||
| 69348-77030 | ||||
| 69348-77040 | ||||
| 69348-77050 | ||||
| 90119-10556 | ||||
| 90950-01960 | ||||
| 91551-J0625 | ||||
| 91551-J0825 | ||||
| 91671-A0825 | ||||
| 91671-A0828 | ||||
| 91671-A0835 | ||||
| 94151-80600 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 5701 | ||||
