LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

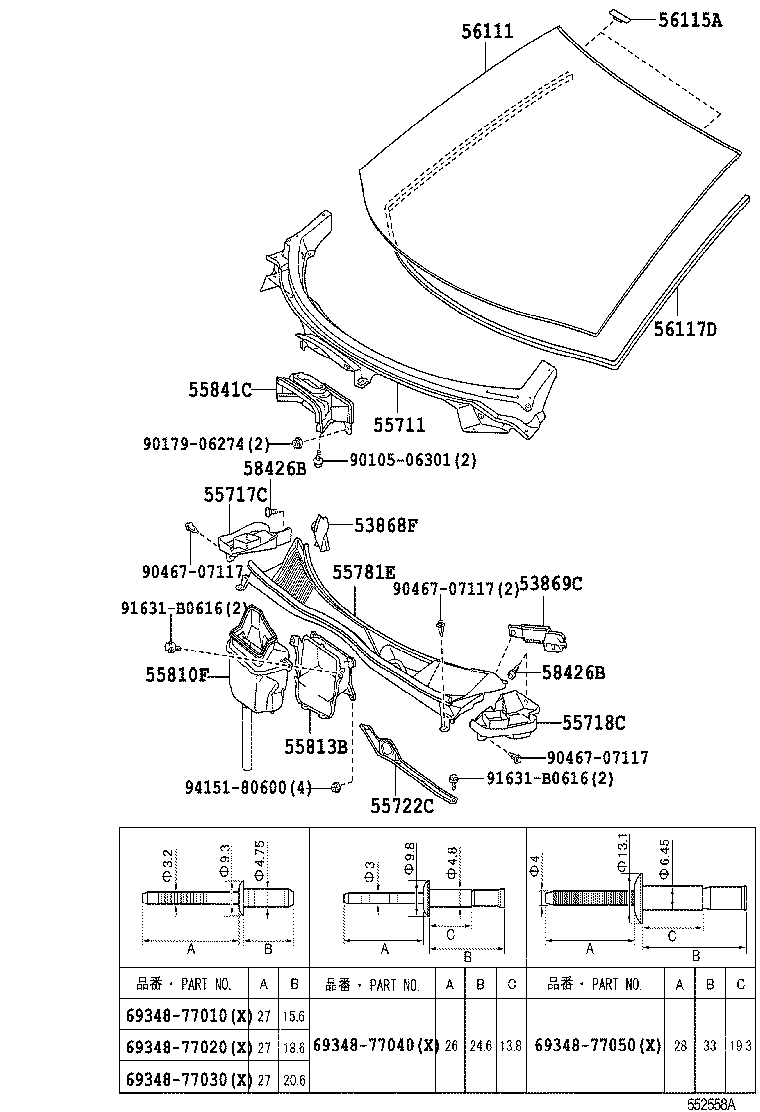

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53868F - SEAL, FRONT FENDER TO COWL SIDE, NO.2 RH | ||||
| 53868-77010 |
LFA10 |
1 | ||
| 53869C - SEAL, FRONT FENDER TO COWL SIDE, NO.2 LH | ||||
| 53869-77010 |
LFA10 |
1 | ||
| 55711 - PANEL, COWL TOP, OUTER | ||||
| 55711-77010 |
LFA10 |
1 | ||
| 55717C - PROTECTOR, FRONT, LOWER RH | ||||
| 55717-77010 |
LFA10 |
1 | ||
| 55718C - PROTECTOR, FRONT, LOWER LH | ||||
| 55718-77010 |
LFA10 |
1 | ||
| 55722C - BRACE, COWL TOP TO COWL, INNER | ||||
| 55721-77010 |
LFA10 |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-77010 |
LFA10 |
1 | ||
| 55810F - VENTILATOR ASSY, FRONT | ||||
| 55810-77010 |
LFA10 |
1 | ||
| 55813B - DUCT, SIDE VENTILATOR | ||||
| 55813-77010 |
LFA10 |
1 | ||
| 55841C - DUCT, FRONT REGISTER, UPPER | ||||
| 55841-77010 |
LFA10 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-77010 |
LFA10 *IRCL,T=4.76,GREEN |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30110 |
LFA10 |
2 | ||
| 56117D - DAM, WINDSHIELD GLASS ADHESIVE | ||||
| 56117-64010 |
LFA10 *D,L=2883 |
1 | ||
| 58426B - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77020 |
LFA10 |
2 | ||
| 58426B - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77020 |
LFA10 |
2 | ||
| Common parts | ||||
| 69348-77010 | ||||
| 69348-77020 | ||||
| 69348-77030 | ||||
| 69348-77040 | ||||
| 69348-77050 | ||||
| 90105-06301 | ||||
| 90179-06274 | ||||
| 90467-07117 | ||||
| 91631-B0616 | ||||
| 94151-80600 | ||||
