LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

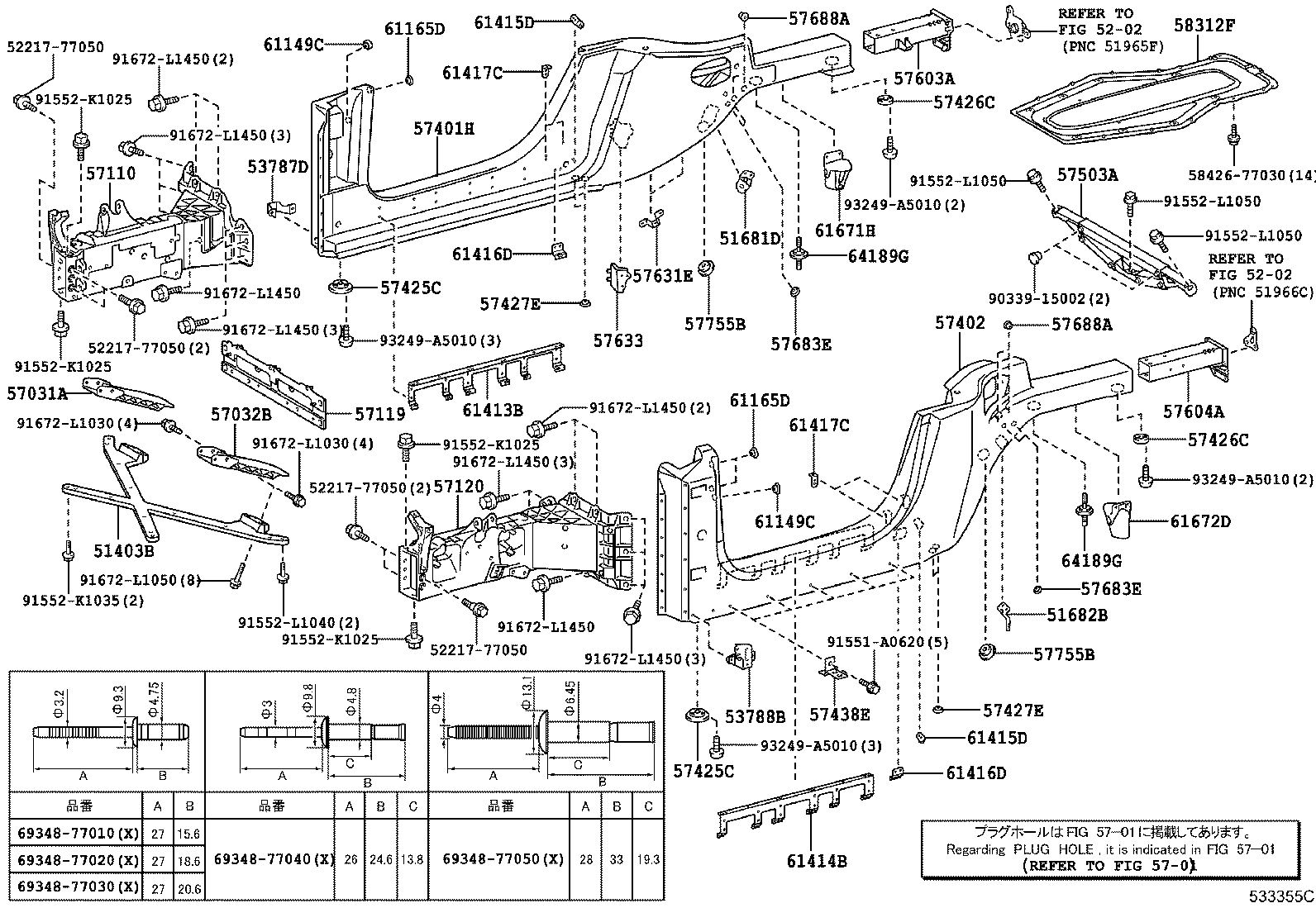

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51403B - BRACE SUB-ASSY, FRONT SUSPENSION MEMBER | ||||
| 51403-77010 |
LFA10 |
1 | ||
| 51681D - BRACKET, FLEXIBLE HOSE, RH | ||||
| 51681-77010 |
LFA10 |
1 | ||
| 51682B - BRACKET, FLEXIBLE HOSE, LH | ||||
| 51682-77010 |
LFA10 |
1 | ||
| 53787D - GUSSET, FRONT FENDER APRON, LOWER RH | ||||
| 53787-77010 |
LFA10 |
1 | ||
| 53788B - GUSSET, FRONT FENDER APRON, LOWER LH | ||||
| 53788-77010 |
LFA10 |
1 | ||
| 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57031-77010 |
LFA10 |
1 | ||
| 57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57032-77010 |
LFA10 |
1 | ||
| 57110 - MEMBER ASSY, FRONT SIDE, RH | ||||
| 57110-77010 |
LFA10 |
1 | ||
| 57119 - PLATE, FRONT SIDE MEMBER, FRONT | ||||
| 57119-77010 |
LFA10 |
1 | ||
| 57120 - MEMBER ASSY, FRONT SIDE, LH | ||||
| 57120-77010 |
LFA10 |
1 | ||
| 57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-77010 |
LFA10 |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-77010 |
LFA10 |
1 | ||
| 57425C - PLATE, REAR STEP PANEL, NO.1 | ||||
| 57425-77020 |
LFA10 |
2 | ||
| 57425C - PLATE, REAR STEP PANEL, NO.1 | ||||
| 57425-77020 |
LFA10 |
2 | ||
| 57426C - PLATE, REAR STEP PANEL, NO.2 | ||||
| 57426-77020 |
LFA10 |
2 | ||
| 57426C - PLATE, REAR STEP PANEL, NO.2 | ||||
| 57426-77020 |
LFA10 |
2 | ||
| 57427E - REINFORCEMENT, FRONT FLOOR TO BRACE | ||||
| 57427-77020 |
LFA10 |
4 | ||
| 57427E - REINFORCEMENT, FRONT FLOOR TO BRACE | ||||
| 57427-77020 |
LFA10 |
4 | ||
| 57438E - PLATE, REAR STEP SIDE, LH | ||||
| 57438-77010 |
LFA10 |
5 | ||
| 57503A - BRACE SUB-ASSY, CENTER FLOOR CROSSMEMBER | ||||
| 57503-77030 |
LFA10 NURBURGRING PACKAGE |
1 | ||
| 57503-77020 |
LFA10 |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-77010 |
LFA10 |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57604-77010 |
LFA10 |
1 | ||
| 57631E - REINFORCEMENT, REAR FLOOR SIDE MEMBER, NO.1 | ||||
| 57631-77010 |
LFA10 |
2 | ||
| 57633 - EXTENSION, REAR FLOOR SIDE MEMBER | ||||
| 57633-77010 |
LFA10 |
1 | ||
| 57683E - REINFORCEMENT, REAR ABSORBER MOUNTING, NO.3 | ||||
| 57683-77020 |
LFA10 |
4 | ||
| 57683E - REINFORCEMENT, REAR ABSORBER MOUNTING, NO.3 | ||||
| 57683-77020 |
LFA10 |
4 | ||
| 57688A - REINFORCEMENT, REAR FLOOR CROSSMEMBER | ||||
| 57688-77020 |
LFA10 |
4 | ||
| 57688A - REINFORCEMENT, REAR FLOOR CROSSMEMBER | ||||
| 57688-77020 |
LFA10 |
4 | ||
| 57755B - PLATE, REAR SUSPENSION MEMBER MOUNTING, FR | ||||
| 57755-77020 |
LFA10 |
2 | ||
| 57755B - PLATE, REAR SUSPENSION MEMBER MOUNTING, FR | ||||
| 57755-77020 |
LFA10 |
2 | ||
| 58312F - PANEL, REAR FLOOR, REAR | ||||
| 58312-77010 |
LFA10 |
1 | ||
| 61149C - REINFORCEMENT, FRONT DOOR CHECK | ||||
| 61149-77020 |
LFA10 |
2 | ||
| 61149C - REINFORCEMENT, FRONT DOOR CHECK | ||||
| 61149-77020 |
LFA10 |
2 | ||
| 61165D - BRACKET, INSTRUMENT PANEL TO COWL SIDE | ||||
| 61165-77020 |
LFA10 |
3 | ||
| 61165D - BRACKET, INSTRUMENT PANEL TO COWL SIDE | ||||
| 61165-77020 |
LFA10 |
3 | ||
| 61413B - PANEL, FRONT STEP, RH | ||||
| 61413-77010 |
LFA10 |
1 | ||
| 61414B - PANEL, FRONT STEP, LH | ||||
| 61414-77010 |
LFA10 |
1 | ||
| 61415D - PANEL, FRONT STEP UNDER, RH | ||||
| 61415-77010 |
LFA10 |
2 | ||
| 61415D - PANEL, FRONT STEP UNDER, RH | ||||
| 61415-77010 |
LFA10 |
2 | ||
| 61416D - PANEL, FRONT STEP UNDER, LH | ||||
| 61416-77010 |
LFA10 |
2 | ||
| 61416D - PANEL, FRONT STEP UNDER, LH | ||||
| 61416-77010 |
LFA10 |
2 | ||
| 61417C - PANEL, FRONT STEP, INNER RH | ||||
| 61417-77010 |
LFA10 |
4 | ||
| 61417C - PANEL, FRONT STEP, INNER RH | ||||
| 61417-77010 |
LFA10 |
4 | ||
| 61671H - SUPPORT, REAR SUSPENSION SPRING, RH | ||||
| 61671-77020 |
LFA10 |
1 | ||
| 61672D - SUPPORT, REAR SUSPENSION SPRING, LH | ||||
| 61672-77020 |
LFA10 |
1 | ||
| 64189G - BOLT, REAR BODY MOUNTING | ||||
| 64189-77010 |
LFA10 |
2 | ||
| 64189G - BOLT, REAR BODY MOUNTING | ||||
| 64189-77010 |
LFA10 |
2 | ||
| Common parts | ||||
| 52217-77050 | ||||
| 58426-77030 | ||||
| 69348-77010 | ||||
| 69348-77020 | ||||
| 69348-77030 | ||||
| 69348-77040 | ||||
| 69348-77050 | ||||
| 90339-15002 | ||||
| 91551-A0620 | ||||
| 91552-K1025 | ||||
| 91552-K1035 | ||||
| 91552-L1040 | ||||
| 91552-L1050 | ||||
| 91672-L1030 | ||||
| 91672-L1050 | ||||
| 91672-L1450 | ||||
| 93249-A5010 | ||||
| Linked diagrams | ||||
| 5202 | ||||
| 5701 | ||||
