LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

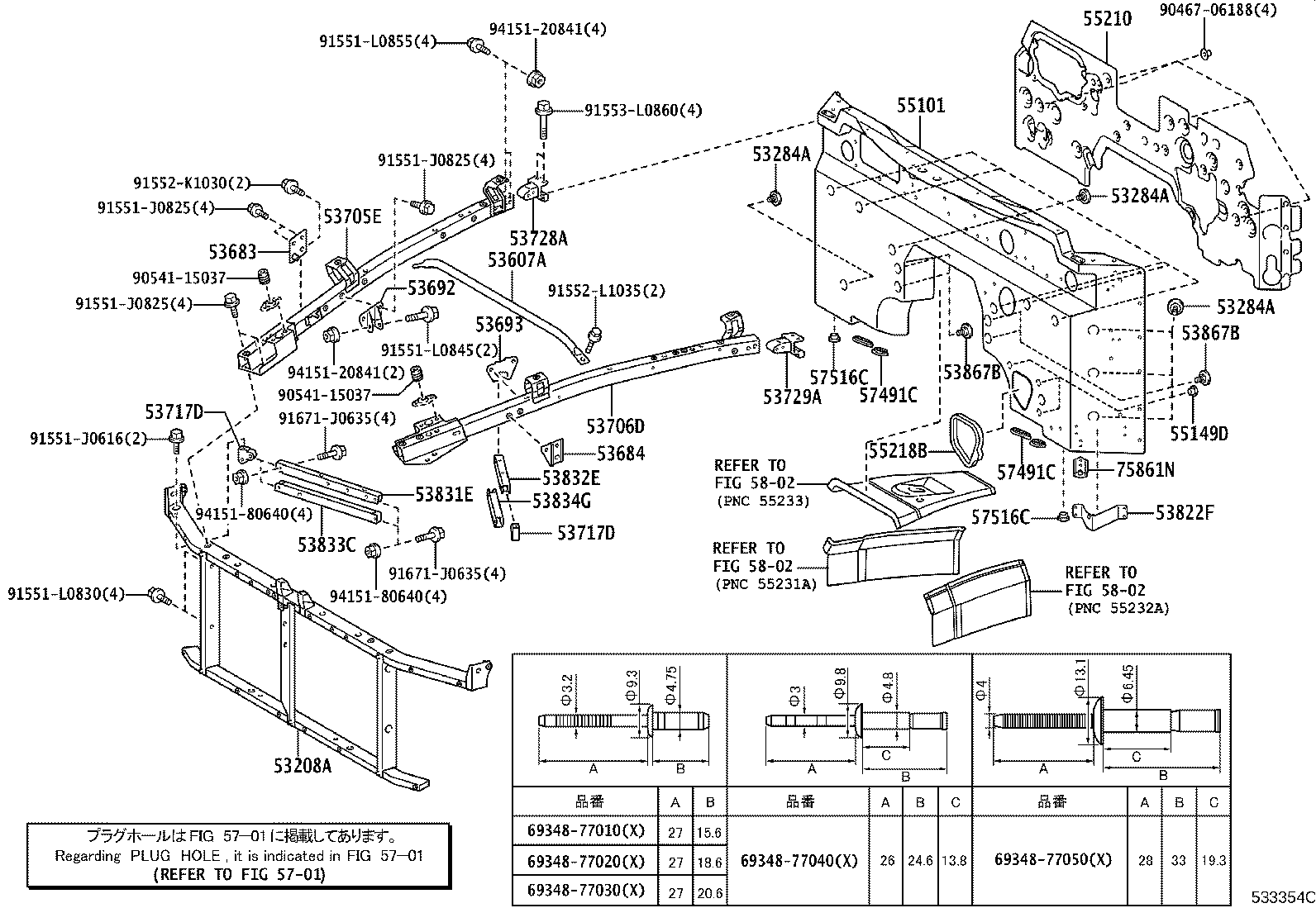

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-77010 |
LFA10 |
1 | ||
| 53284A - RETAINER, FRONT BODY MOUNTING | ||||
| 53284-77020 |
LFA10 |
14 | ||
| 53284A - RETAINER, FRONT BODY MOUNTING | ||||
| 53284-77020 |
LFA10 |
14 | ||
| 53284A - RETAINER, FRONT BODY MOUNTING | ||||
| 53284-77020 |
LFA10 |
14 | ||
| 53607A - BRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER | ||||
| 53607-0W010 |
LFA10 |
1 | ||
| 53683 - BRACKET, FRONT SUSPENSION UPPER TO COWL BRACE, RH | ||||
| 53683-77010 |
LFA10 |
1 | ||
| 53684 - BRACKET, FRONT SUSPENSION UPPER TO COWL BRACE, LH | ||||
| 53684-77010 |
LFA10 |
1 | ||
| 53692 - BRACKET, FRONT SUSPENSION UPPER BRACE | ||||
| 53692-77010 |
LFA10 |
1 | ||
| 53693 - BRACKET, FRONT SUSPENSION UPPER BRACE | ||||
| 53693-77010 |
LFA10 |
1 | ||
| 53705E - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH | ||||
| 53705-77010 |
LFA10 |
1 | ||
| 53706D - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH | ||||
| 53706-77010 |
LFA10 |
1 | ||
| 53717D - GUSSET, FENDER APRON, RH | ||||
| 53717-77010 |
LFA10 |
2 | ||
| 53717D - GUSSET, FENDER APRON, RH | ||||
| 53717-77010 |
LFA10 |
2 | ||
| 53728A - BRACKET, FENDER APRON, RH | ||||
| 53728-77010 |
LFA10 |
1 | ||
| 53729A - BRACKET, FENDER APRON, LH | ||||
| 53729-77010 |
LFA10 |
1 | ||
| 53822F - BRACKET, FRONT FENDER, REAR LH | ||||
| 53822-77010 |
LFA10 |
1 | ||
| 53831E - REINFORCEMENT, FRONT FENDER, UPPER RH | ||||
| 53831-77010 |
LFA10 |
1 | ||
| 53832E - REINFORCEMENT, FRONT FENDER, UPPER LH | ||||
| 53832-77010 |
LFA10 |
1 | ||
| 53833C - REINFORCEMENT, FRONT FENDER, LOWER RH | ||||
| 53833-77010 |
LFA10 |
1 | ||
| 53834G - REINFORCEMENT, FRONT FENDER, LOWER LH | ||||
| 53834-77010 |
LFA10 |
1 | ||
| 53867B - RETAINER, FRONT SIDE PANEL | ||||
| 53867-77020 |
LFA10 |
4 | ||
| 53867B - RETAINER, FRONT SIDE PANEL | ||||
| 53867-77020 |
LFA10 |
4 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-77010 |
LFA10 |
1 | ||
| 55149D - RETAINER, PEDAL BRACKET | ||||
| 55149-77020 |
LFA10 |
3 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-77010 |
LFA10 |
1 | ||
| 55218B - SEAL, DASH PANEL INSULATOR | ||||
| 55259-77020 |
LFA10 |
1 | ||
| 57491C - RETAINER, FLOOR MEMBER REINFORCEMENT | ||||
| 57491-77010 |
LFA10 |
4 | ||
| 57491C - RETAINER, FLOOR MEMBER REINFORCEMENT | ||||
| 57491-77010 |
LFA10 |
4 | ||
| 57516C - RETAINER, FRONT FLOOR TO FRONT CROSS | ||||
| 57516-77020 |
LFA10 |
2 | ||
| 57516C - RETAINER, FRONT FLOOR TO FRONT CROSS | ||||
| 57516-77020 |
LFA10 |
2 | ||
| 75861N - RETAINER, ROCKER PANEL MOULDING, RH | ||||
| 75861-77010 |
LFA10 |
2 | ||
| Common parts | ||||
| 69348-77010 | ||||
| 69348-77020 | ||||
| 69348-77030 | ||||
| 69348-77040 | ||||
| 69348-77050 | ||||
| 90467-06188 | ||||
| 90541-15037 | ||||
| 91551-J0616 | ||||
| 91551-J0825 | ||||
| 91551-L0830 | ||||
| 91551-L0845 | ||||
| 91551-L0855 | ||||
| 91552-K1030 | ||||
| 91552-L1035 | ||||
| 91553-L0860 | ||||
| 91671-J0635 | ||||
| 94151-20841 | ||||
| 94151-80640 | ||||
| Linked diagrams | ||||
| 5701 | ||||
