LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

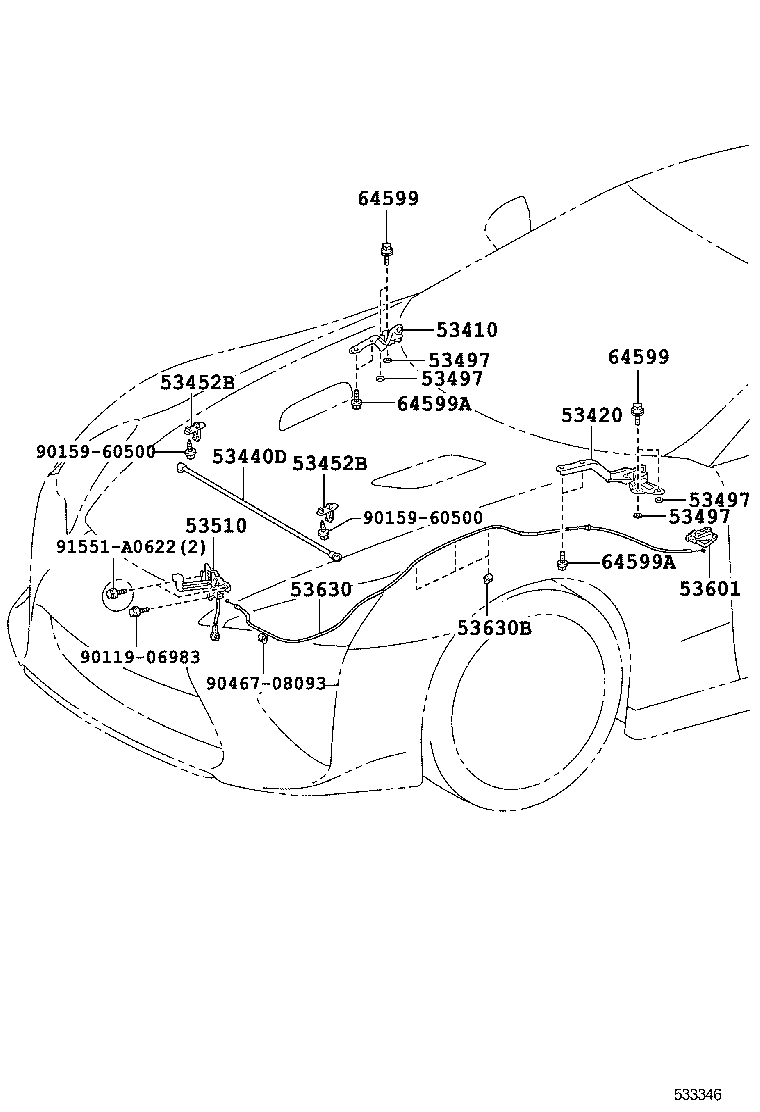

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-77030 |
LFA10 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-77030 |
LFA10 |
1 | ||
| 53440D - SUPPORT ASSY, HOOD | ||||
| 53440-77010 |
LFA10 |
1 | ||
| 53452B - BRACKET, HOOD SUPPORT ROD | ||||
| 53452-77010 |
LFA10 |
2 | ||
| 53452B - BRACKET, HOOD SUPPORT ROD | ||||
| 53452-77010 |
LFA10 |
2 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-50020 |
LFA10 T=1.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-50020 |
LFA10 T=1.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-50020 |
LFA10 T=1.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-50020 |
LFA10 T=1.0 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-77010 |
LFA10 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-52010C0 |
LFA10 BLACK |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-77010 |
LFA10 |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 64618-22020 |
LFA10 |
3 | ||
| 64599 - BOLT, LUGGAGE DOOR HINGE | ||||
| 64599-77020 |
LFA10 |
4 | ||
| 64599 - BOLT, LUGGAGE DOOR HINGE | ||||
| 64599-77020 |
LFA10 |
4 | ||
| 64599A - BOLT, LUGGAGE DOOR HINGE | ||||
| 64599-77040 |
LFA10 |
4 | ||
| 64599A - BOLT, LUGGAGE DOOR HINGE | ||||
| 64599-77040 |
LFA10 |
4 | ||
| Common parts | ||||
| 90119-06983 | ||||
| 90159-60500 | ||||
| 90467-08093 | ||||
| 91551-A0622 | ||||
