LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)

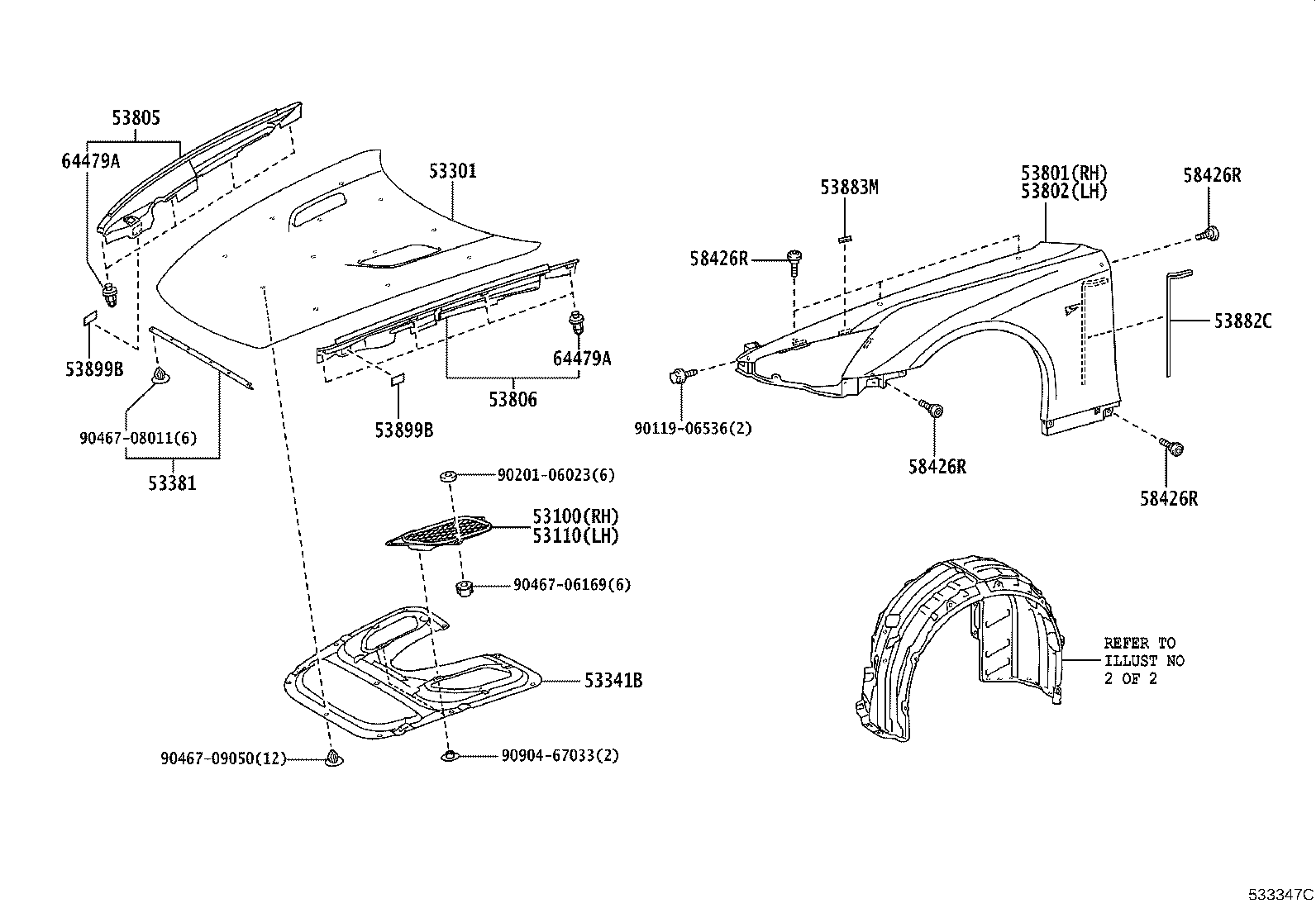

ILLUST NO. 1 OF 2(1012- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53100 - GRILLE ASSY, RADIATOR, RH | ||||
| 53100-77010 |
LFA10 |
1 | ||
| 53110 - GRILLE ASSY, RADIATOR, LH | ||||
| 53110-77010 |
LFA10 |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-77020B1 |
LFA10 GRAY |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-77010 |
LFA10 |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-77010 |
LFA10 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-77020B1 |
LFA10 GRAY |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-77020B1 |
LFA10 GRAY |
1 | ||
| 53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH | ||||
| 53805-77010 |
LFA10 |
1 | ||
| 53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH | ||||
| 53806-77010 |
LFA10 |
1 | ||
| 53882C - SEAL, FRONT FENDER MAIN | ||||
| 53882-77010 |
LFA10 |
1 | ||
| 53883M - SEAL, FRONT FENDER | ||||
| 53883-77010 |
LFA10 |
3 | ||
| 53899B - SUPPORT, FRONT FENDER PANEL | ||||
| 53899-77020 |
LFA10 |
2 | ||
| 53899B - SUPPORT, FRONT FENDER PANEL | ||||
| 53899-77020 |
LFA10 |
2 | ||
| 58426R - BOLT(FOR FRONT FENDER) | ||||
| 58426-77020 |
LFA10 |
6 | ||
| 58426R - BOLT(FOR FRONT FENDER) | ||||
| 58426-77020 |
LFA10 |
6 | ||
| 58426R - BOLT(FOR FRONT FENDER) | ||||
| 58426-77020 |
LFA10 |
6 | ||
| 58426R - BOLT(FOR FRONT FENDER) | ||||
| 58426-77020 |
LFA10 |
6 | ||
| 64479A - CLIP, ENGINE HOOD SIDE PANEL | ||||
| 64479-77010 |
LFA10 |
8 | ||
| 64479A - CLIP, ENGINE HOOD SIDE PANEL | ||||
| 64479-77010 |
LFA10 |
8 | ||
| Common parts | ||||
| 90119-06536 | ||||
| 90201-06023 | ||||
| 90467-06169 | ||||
| 90467-08011 | ||||
| 90467-09050 | ||||
| 90904-67033 | ||||

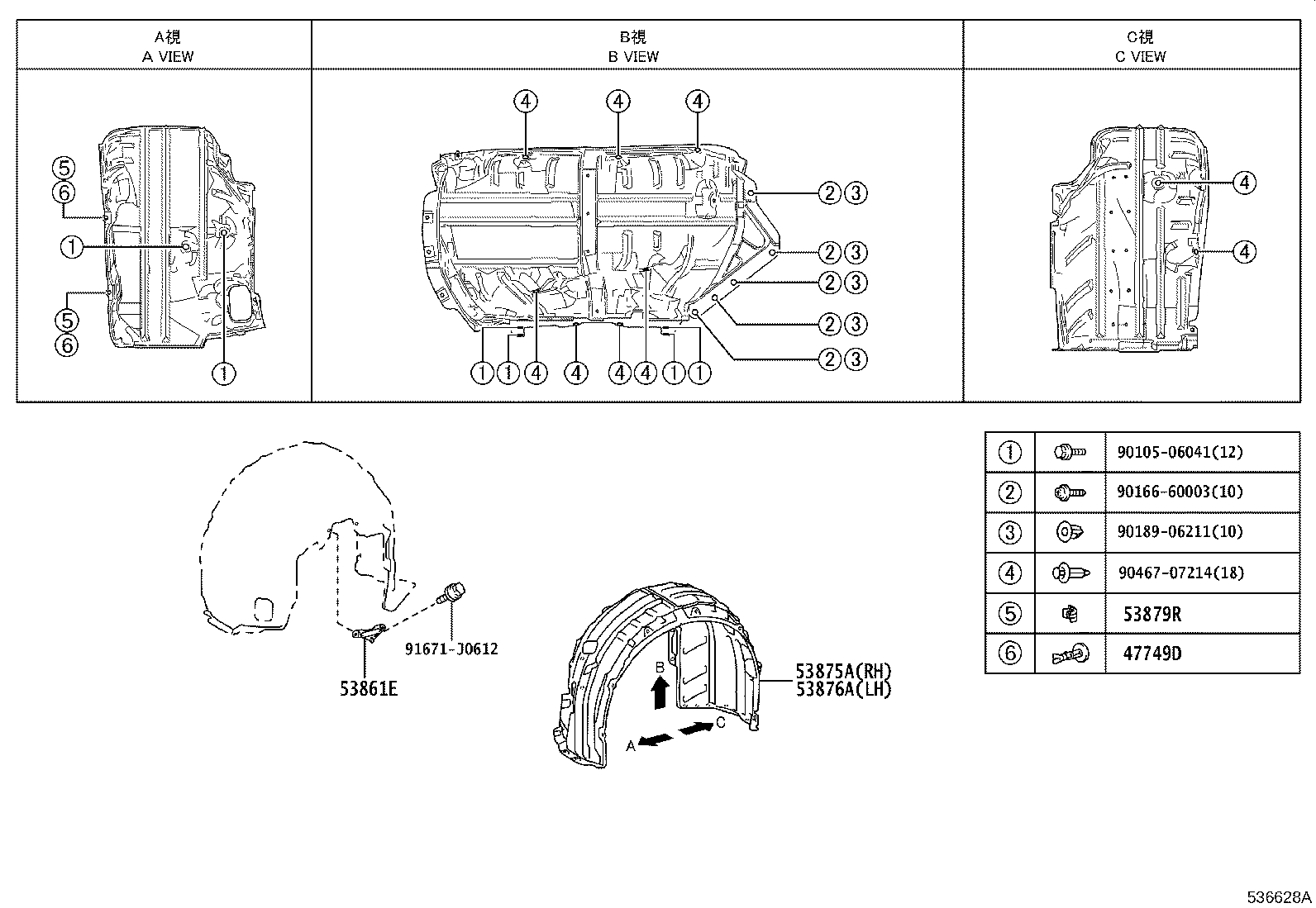

ILLUST NO. 2 OF 2(1012- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749D - CLIP, PIN HOLD | ||||
| 47749-50090 |
LFA10 |
4 | ||
| 53861E - BRACKET, FRONT FENDER LINER | ||||
| 53861-77010 |
LFA10 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-77010 |
LFA10 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-77010 |
LFA10 |
1 | ||
| 53879R - RETAINER, FRONT FENDER LINER | ||||
| 53879-50020 |
LFA10 |
4 | ||
| Common parts | ||||
| 90105-06041 | ||||
| 90166-60003 | ||||
| 90189-06211 | ||||
| 90467-07214 | ||||
| 91671-J0612 | ||||
