LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

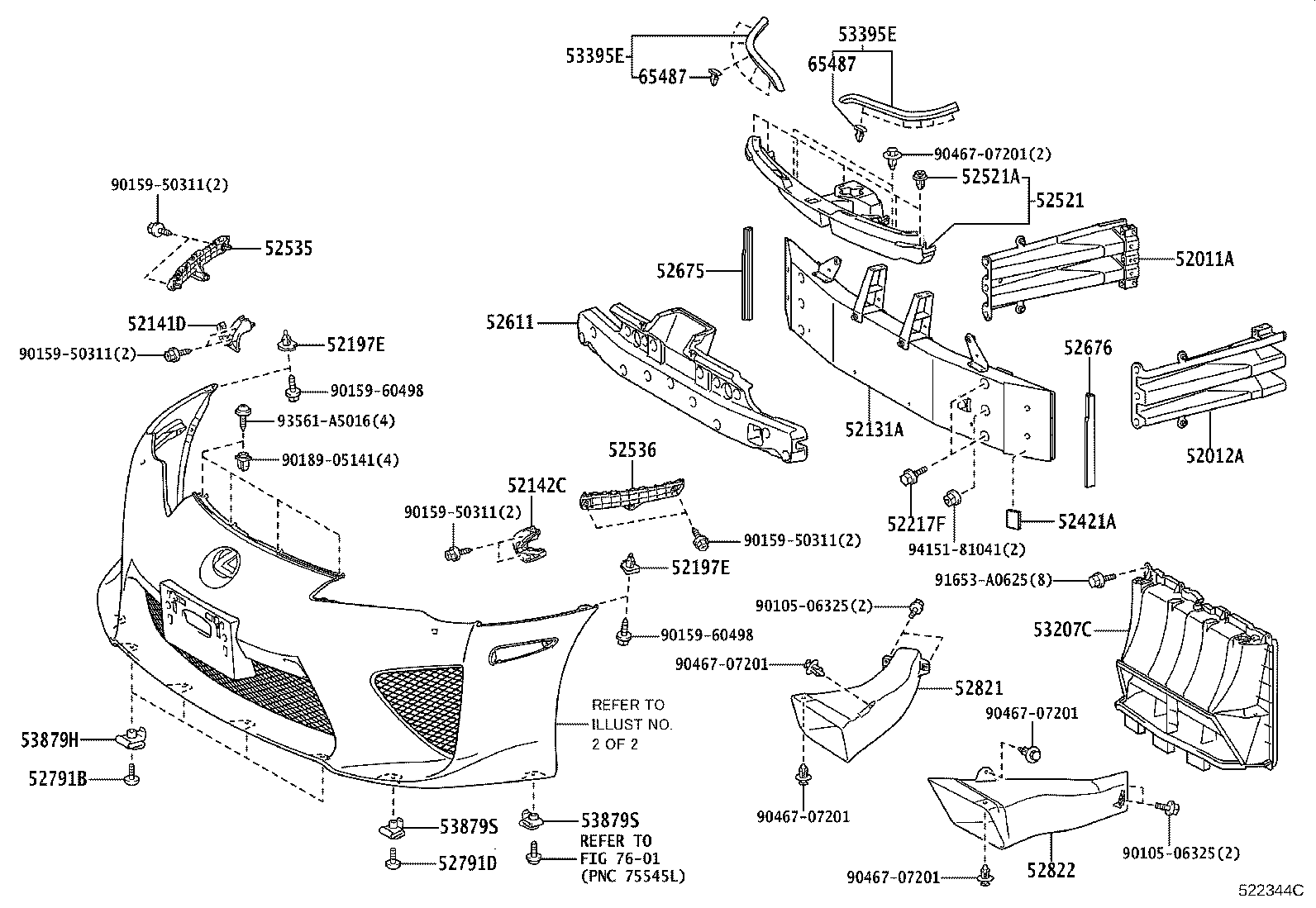

ILLUST NO. 1 OF 2(1012- )

Click highlighted areas on diagram

diagram 52011A 52012A 52131A 52141D 52142C 52197E 52197E 52217F 52421A 52521 52521A 52535 52536 52611 52675 52676 52791B 52791D 52821 52822 53207C 53395E 53395E 53879H 53879S 53879S 65487 65487 7601 9010506325 9010506325 9015950311 9015950311 9015950311 9015950311 9015960498 9015960498 9018905141 9046707201 9046707201 9046707201 9046707201 9046707201 91653A0625 93561A5016 9415181041
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-77010

LFA10

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-77010

LFA10

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-77010

LFA10

 1
52141D - STAY, FRONT BUMPER, RH
52145-77010

LFA10

 1
52142C - STAY, FRONT BUMPER, LH
52146-77010

LFA10

 1
52197E - BRACKET, FRONT BUMPER SEAL
52197-30040

LFA10

 2
52197E - BRACKET, FRONT BUMPER SEAL
52197-30040

LFA10

 2
52217F - BOLT, BODY MOUNTING
52217-77040

LFA10

 4
52421A - PAD, FRONT BUMPER
52462-60040

LFA10

 2
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-77010

LFA10

 1
52521A - CLIP(FOR FRONT BUMPER RETAINER)
64479-77010

LFA10

 6
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-77010

LFA10

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-77010

LFA10

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-77010

LFA10

 1
52675 - SUPPORT, FRONT BUMPER LOWER SIDE, RH
52675-77010

LFA10

 1
52676 - SUPPORT, FRONT BUMPER LOWER SIDE, LH
52676-77010

LFA10

 1
52791B - BOLT, BUMPER MOULDING SET, NO.1
52791-77010

LFA10

 4
52791D - BOLT, BUMPER MOULDING SET, NO.1
52791-77010

LFA10

 2
52821 - DUCT, AIR INTAKE, RH
52821-77010

LFA10

 1
52822 - DUCT, AIR INTAKE, LH
52822-77010

LFA10

 1
53207C - DUCT SUB-ASSY, COOL AIR INTAKE
53207-77010

LFA10

 1
53395E - SEAL, HOOD TO FRONT END PANEL
53395-77010

LFA10

 2
53395E - SEAL, HOOD TO FRONT END PANEL
53395-77010

LFA10

 2
53879H - RETAINER, FRONT FENDER LINER
53879-17020

LFA10

 4
53879S - RETAINER, FRONT FENDER LINER
53879-17020

LFA10

 4
53879S - RETAINER, FRONT FENDER LINER
53879-17020

LFA10

 4
65487 - CLIP, CORNER PROTECTOR
65487-60010

LFA10

 10
65487 - CLIP, CORNER PROTECTOR
65487-60010

LFA10

 10
Common parts
90105-06325
90159-50311
90159-60498
90189-05141
90467-07201
91653-A0625
93561-A5016
94151-81041
Linked diagrams
7601

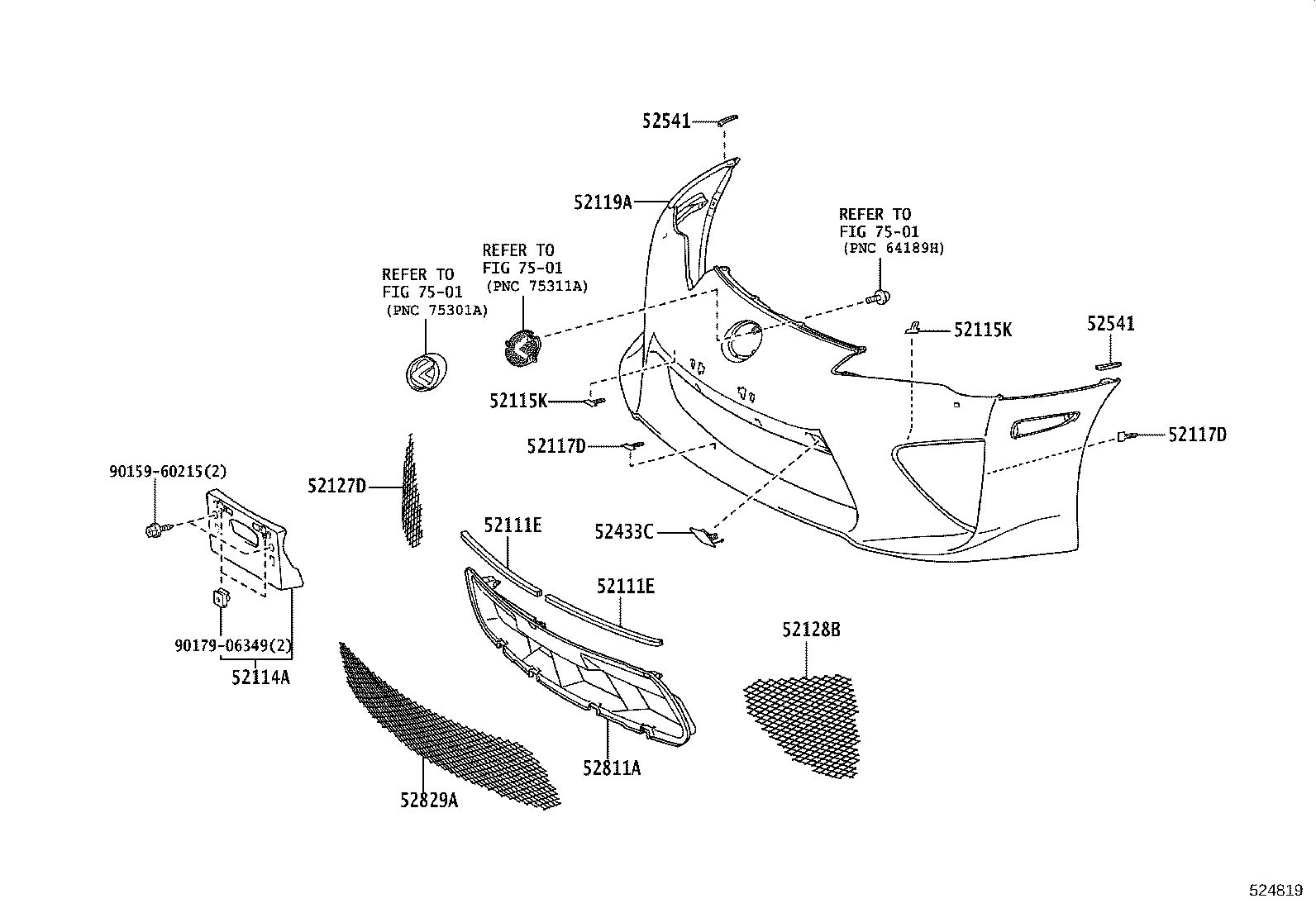

ILLUST NO. 2 OF 2(1012- )

Click highlighted areas on diagram

diagram 52111E 52111E 52114A 52115K 52115K 52117D 52117D 52119A 52127D 52128B 52433C 52541 52541 52811A 52829A 7501 7501 7501 9015960215 9017906349
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52111-77010

LFA10

NO PAINT REQ.

 2
52111E - BAR, FRONT BUMPER
52111-77010

LFA10

NO PAINT REQ.

 2
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-77020

LFA10

 1
52115K - SUPPORT, FRONT BUMPER SIDE
52115-77010

LFA10

 23
52115K - SUPPORT, FRONT BUMPER SIDE
52115-77010

LFA10

 23
52117D - SUPPORT, FRONT BUMPER SIDE, LOWER
52117-77010

LFA10

 21
52117D - SUPPORT, FRONT BUMPER SIDE, LOWER
52117-77010

LFA10

 21
52119A - COVER, FRONT BUMPER
52119-77110

LFA10

PAINT REQ.

 1
52119-77170

LFA10

PAINT REQ.,NURBURGRING PACKAGE&HEAD LAMP CLEANER-WITH

 1
52119-77120

LFA10

PAINT REQ.,HEAD LAMP CLEANER-WITH

 1
52119-77160

LFA10

PAINT REQ.,NURBURGRING PACKAGE

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-77010

LFA10

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-77010

LFA10

 1
52433C - PLUG, FRONT BUMPER COVER HOLE
52433-77020

LFA10

 1
52541 - PROTECTOR, FRONT BUMPER
52541-30101

LFA10

 2
52541 - PROTECTOR, FRONT BUMPER
52541-30101

LFA10

 2
52811A - DUCT, COOL AIR INTAKE, NO.1
52811-77010

LFA10

 1
52829A - GRILLE, COOL AIR INTAKE
52829-77010

LFA10

 1
Common parts
90159-60215
90179-06349
Linked diagrams
7501
