LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)

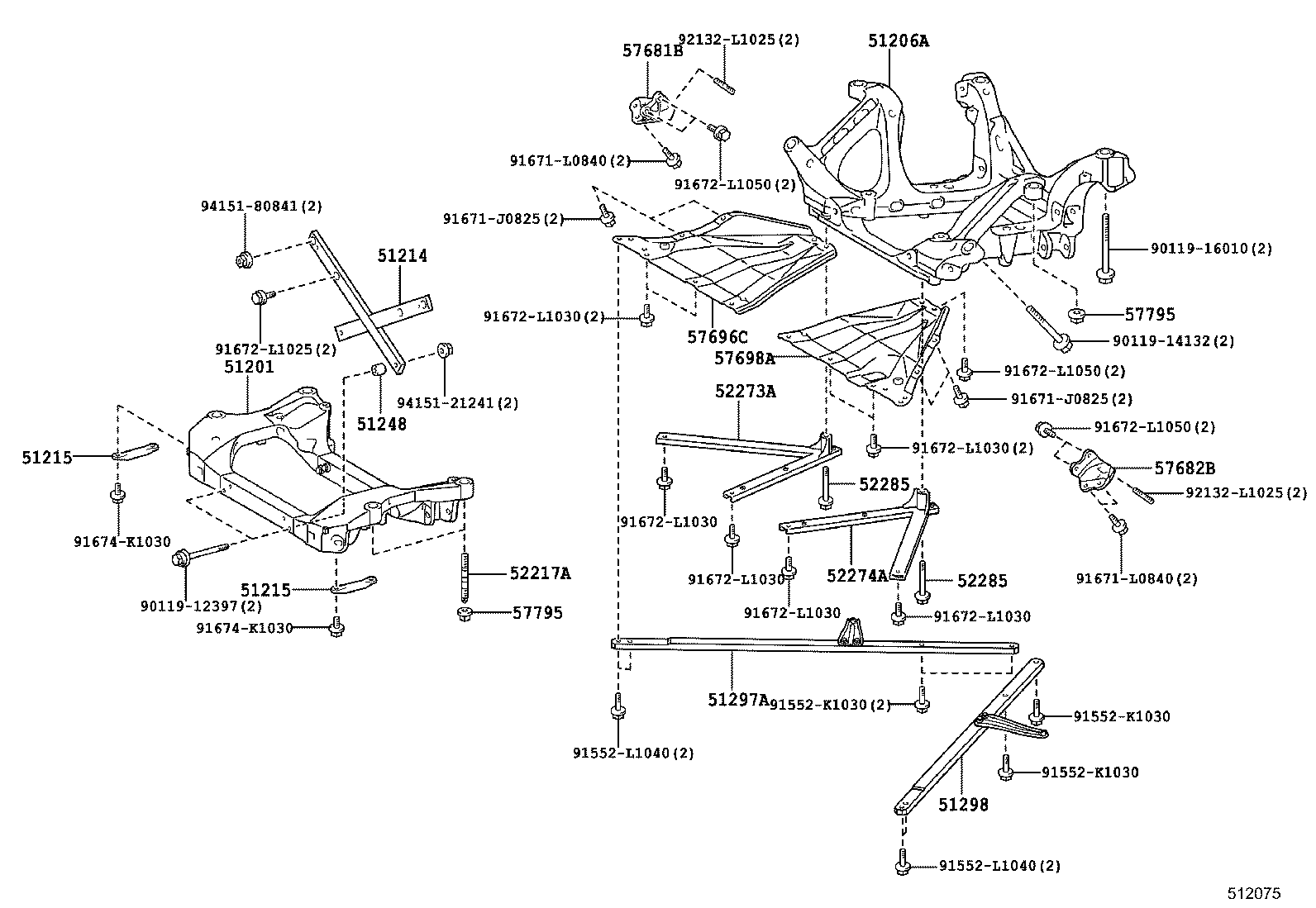

ILLUST NO. 1 OF 2(1012- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-77010 |
LFA10 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-77010 |
LFA10 |
1 | ||
| 51214 - BRACE, FRONT SIDE MEMBER TO SUSPENSION CROSSMEMBER | ||||
| 51204-77010 |
LFA10 |
1 | ||
| 51215 - REINFORCEMENT, FRONT SUSPENSION CROSSMEMBER | ||||
| 51215-77010 |
LFA10 |
2 | ||
| 51215 - REINFORCEMENT, FRONT SUSPENSION CROSSMEMBER | ||||
| 51215-77010 |
LFA10 |
2 | ||
| 51248 - SPACER, FLAME CROSSMEMBER | ||||
| 51248-77010 |
LFA10 |
2 | ||
| 51297A - REINFORCEMENT, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 51297-77010 |
LFA10 |
1 | ||
| 51298 - REINFORCEMENT, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 51298-77010 |
LFA10 |
1 | ||
| 52217A - BOLT, BODY MOUNTING | ||||
| 52217-77030 |
LFA10 |
4 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52203-77010 |
LFA10 |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52204-77010 |
LFA10 |
1 | ||
| 52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1 | ||||
| 52285-77010 |
LFA10 |
2 | ||
| 52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1 | ||||
| 52285-77010 |
LFA10 |
2 | ||
| 57681B - REINFORCEMENT, REAR ABSORBER MOUNTING MEMBER, RH | ||||
| 57681-77010 |
LFA10 |
1 | ||
| 57682B - REINFORCEMENT, REAR ABSORBER MOUNTING MEMBER, LH | ||||
| 57682-77010 |
LFA10 |
1 | ||
| 57696C - GUIDE, FUEL TANK CROSSMEMBER, RH | ||||
| 57696-77010 |
LFA10 |
1 | ||
| 57698A - GUIDE, FUEL TANK CROSSMEMBER, LH | ||||
| 57698-77010 |
LFA10 |
1 | ||
| 57795 - NUT, SUSPENSION MENBER BODY BRACKET | ||||
| 57795-77010 |
LFA10 |
4 | ||
| 57795 - NUT, SUSPENSION MENBER BODY BRACKET | ||||
| 57795-77010 |
LFA10 |
4 | ||
| Common parts | ||||
| 90119-12397 | ||||
| 90119-14132 | ||||
| 90119-16010 | ||||
| 91552-K1030 | ||||
| 91552-L1040 | ||||
| 91671-J0825 | ||||
| 91671-L0840 | ||||
| 91672-L1025 | ||||
| 91672-L1030 | ||||
| 91672-L1050 | ||||
| 91674-K1030 | ||||
| 92132-L1025 | ||||
| 94151-21241 | ||||
| 94151-80841 | ||||
ILLUST NO. 2 OF 2(1012- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51453-77010 |
LFA10 |
1 | ||
| 51441D - COVER, ENGINE UNDER | ||||
| 51410-77010 |
LFA10 |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51454-77010 |
LFA10 |
1 | ||
| 51442E - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-77010 |
LFA10 |
1 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51487-77010 |
LFA10 |
1 | ||
| 51446B - BRACKET, ENGINE UNDER COVER, NO.2 | ||||
| 51488-77010 |
LFA10 |
1 | ||
| 51449D - BRACKET, ENGINE UNDER COVER AIR GUIDE, RH | ||||
| 51449-77010 |
LFA10 |
1 | ||
| 51455B - BRACKET, ENGINE UNDER COVER, REAR RH | ||||
| 51455-77010 |
LFA10 |
1 | ||
| 51456B - BRACKET, ENGINE UNDER COVER, REAR LH | ||||
| 51456-77010 |
LFA10 |
1 | ||
| 51459A - BRACKET ENGINE UNDER COVER AIR GUIDE, LH | ||||
| 51459-77010 |
LFA10 |
1 | ||
| 51467B - RETAINER, ENGINE UNDER COVER | ||||
| 53879-22030 |
LFA10 |
2 | ||
| 51467B - RETAINER, ENGINE UNDER COVER | ||||
| 53879-22030 |
LFA10 |
2 | ||
| 52526D - RETAINER, FRONT BUMPER, LOWER | ||||
| 52526-53020 |
LFA10 |
6 | ||
| 52526D - RETAINER, FRONT BUMPER, LOWER | ||||
| 52526-53020 |
LFA10 |
6 | ||
| 58426C - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77010 |
LFA10 |
34 | ||
| 58426C - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77010 |
LFA10 |
34 | ||
| 58426C - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77010 |
LFA10 |
34 | ||
| 58426C - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77010 |
LFA10 |
34 | ||
| 58426C - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77010 |
LFA10 |
34 | ||
| 58426C - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77010 |
LFA10 |
34 | ||
| 58426C - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77010 |
LFA10 |
34 | ||
| 58426C - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77010 |
LFA10 |
34 | ||
| 58426C - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77010 |
LFA10 |
34 | ||
| 58426C - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77010 |
LFA10 |
34 | ||
| 58426C - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77010 |
LFA10 |
34 | ||
| 58426N - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77030 |
LFA10 |
20 | ||
| 58426N - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77030 |
LFA10 |
20 | ||
| 58426N - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77030 |
LFA10 |
20 | ||
| 58426N - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77030 |
LFA10 |
20 | ||
| 58426N - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-77030 |
LFA10 |
20 | ||
| Common parts | ||||
| 69348-77080 | ||||
| 90166-60003 | ||||
| 90189-06211 | ||||
| 91551-A0622 | ||||
| 91671-A0825 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 5202 | ||||
| 7601 | ||||
