LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

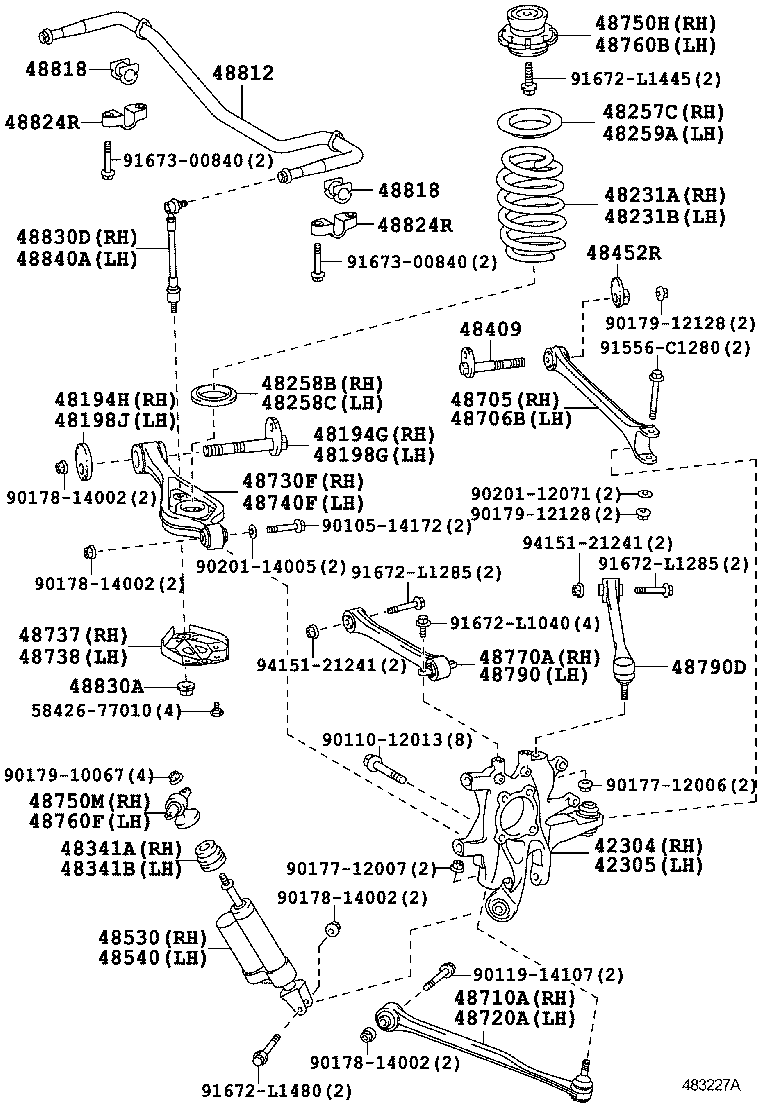

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-77010 |
LFA10 |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-77010 |
LFA10 |
1 | ||
| 48194G - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1 RH | ||||
| 48190-77020 |
LFA10 |
1 | ||
| 48194H - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 RH | ||||
| 48198-77010 |
LFA10 |
1 | ||
| 48198G - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1 LH | ||||
| 48190-77020 |
LFA10 |
1 | ||
| 48198J - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 LH | ||||
| 48198-77010 |
LFA10 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-77010 |
LFA10 |
1 | ||
| 48231-77030 |
LFA10 NURBURGRING PACKAGE |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-77040 |
LFA10 NURBURGRING PACKAGE |
1 | ||
| 48231-77020 |
LFA10 |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-77010 |
LFA10 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48257-77020 |
LFA10 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48259-77010 |
LFA10 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-77010 |
LFA10 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-77010 |
LFA10 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-77010 |
LFA10 |
1 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-77010 |
LFA10 |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-77010 |
LFA10 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-77020 |
LFA10 MARK 48530-77020,NURBURGRING PACKAGE |
1 | ||
| 48530-77010 |
LFA10 MARK 48530-77010 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-77020 |
LFA10 MARK 48540-77020,NURBURGRING PACKAGE |
1 | ||
| 48540-77010 |
LFA10 MARK 48540-77010 |
1 | ||
| 48705 - LINK SUB-ASSY, TOE CONTROL, RH | ||||
| 48705-77010 |
LFA10 |
1 | ||
| 48706B - LINK SUB-ASSY, TOE CONTROL, LH | ||||
| 48705-77010 |
LFA10 |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-77010 |
LFA10 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-77010 |
LFA10 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-77010 |
LFA10 |
1 | ||
| 48737 - COVER, REAR SUSPENSION ARM, RH | ||||
| 48737-77020 |
LFA10 |
1 | ||
| 48738 - COVER, REAR SUSPENSION ARM, LH | ||||
| 48737-77020 |
LFA10 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-77010 |
LFA10 |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-77010 |
LFA10 |
1 | ||
| 48750M - SUPPORT ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48760-77010 |
LFA10 |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-77010 |
LFA10 |
1 | ||
| 48760F - SUPPORT ASSY REAR SUSPENSION, NO.2 LH | ||||
| 48760-77010 |
LFA10 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-77010 |
LFA10 |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48770-77010 |
LFA10 |
1 | ||
| 48790D - ARM ASSY, UPPER CONTROL, REAR NO.2 | ||||
| 48790-77010 |
LFA10 |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-77020 |
LFA10 NURBURGRING PACKAGE |
1 | ||
| 48812-77010 |
LFA10 |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-77010 |
LFA10 |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-77010 |
LFA10 |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-77020 |
LFA10 |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-77020 |
LFA10 |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-10212 |
LFA10 |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-77010 |
LFA10 |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-77010 |
LFA10 |
1 | ||
| Common parts | ||||
| 58426-77010 | ||||
| 90105-14172 | ||||
| 90110-12013 | ||||
| 90119-14107 | ||||
| 90177-12006 | ||||
| 90177-12007 | ||||
| 90178-14002 | ||||
| 90179-10067 | ||||
| 90179-12128 | ||||
| 90201-12071 | ||||
| 90201-14005 | ||||
| 91556-C1280 | ||||
| 91672-L1040 | ||||
| 91672-L1285 | ||||
| 91672-L1445 | ||||
| 91672-L1480 | ||||
| 91673-00840 | ||||
| 94151-21241 | ||||
