LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

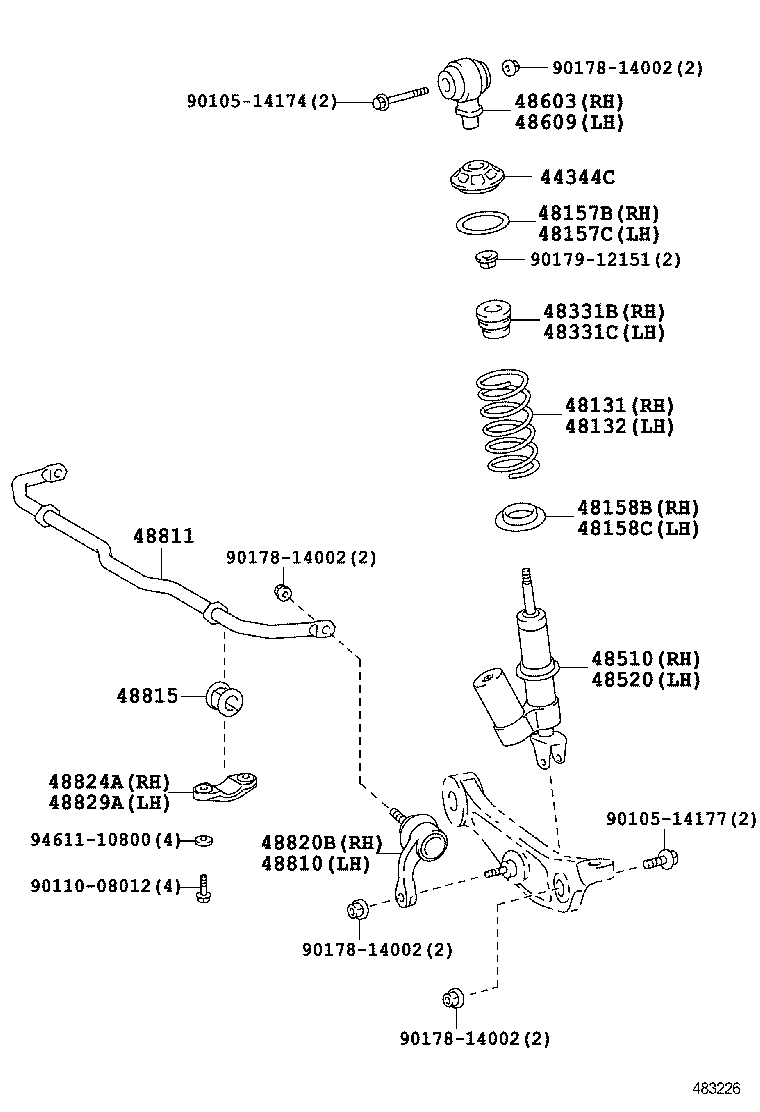

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44344C - SEAT, SPRING(FOR FRONT SUSPENSION) | ||||
| 44344-77010 |
LFA10 |
2 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-77010 |
LFA10 |
1 | ||
| 48131-77020 |
LFA10 NURBURGRING PACKAGE |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-77010 |
LFA10 |
1 | ||
| 48131-77020 |
LFA10 NURBURGRING PACKAGE |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-77020 |
LFA10 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-77020 |
LFA10 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48157-77010 |
LFA10 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48157-77010 |
LFA10 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-77010 |
LFA10 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-77010 |
LFA10 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-77020 |
LFA10 MARK 48510-77020,NURBURGRING PACKAGE |
1 | ||
| 48510-77010 |
LFA10 MARK 48510-77010 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-77010 |
LFA10 MARK 48510-77010 |
1 | ||
| 48510-77020 |
LFA10 MARK 48510-77020,NURBURGRING PACKAGE |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48680-77010 |
LFA10 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48680-77010 |
LFA10 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-77010 |
LFA10 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-77020 |
LFA10 NURBURGRING PACKAGE |
1 | ||
| 48811-77010 |
LFA10 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-77010 |
LFA10 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-77010 |
LFA10 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-77010 |
LFA10 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-77010 |
LFA10 |
1 | ||
| Common parts | ||||
| 90105-14174 | ||||
| 90105-14177 | ||||
| 90110-08012 | ||||
| 90178-14002 | ||||
| 90179-12151 | ||||
| 94611-10800 | ||||
