LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

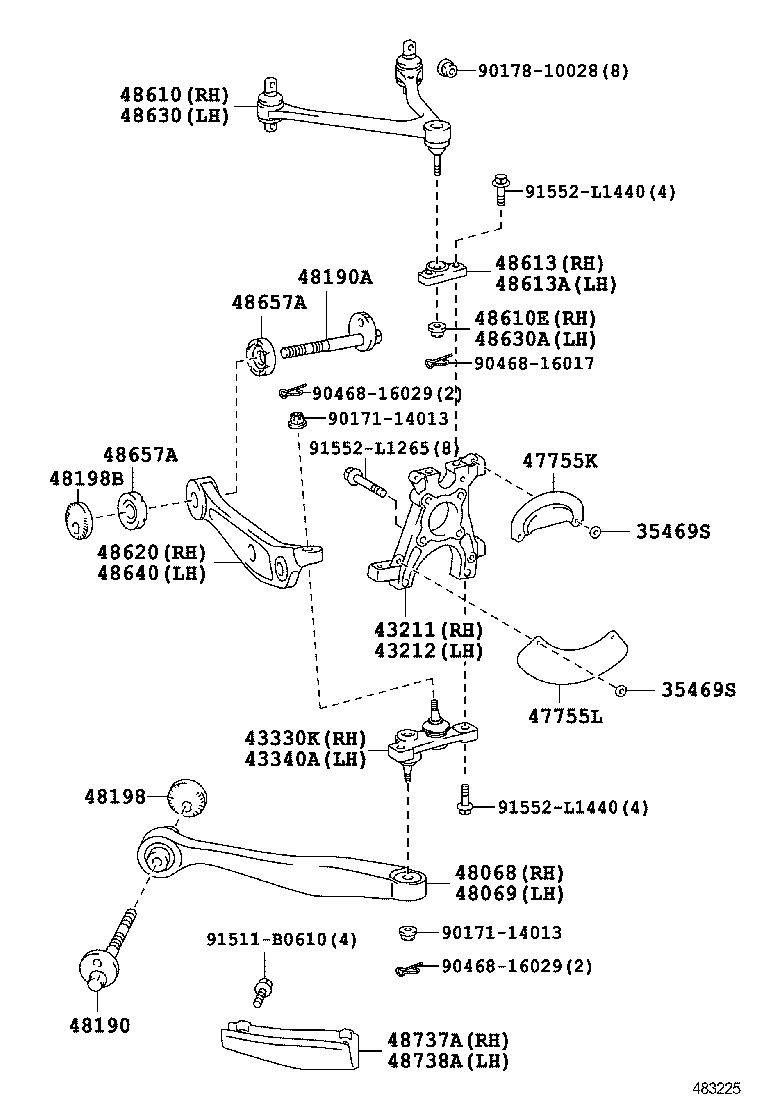

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35469S - SPACER | ||||
| 35469-77020 |
LFA10 |
8 | ||
| 35469S - SPACER | ||||
| 35469-77020 |
LFA10 |
8 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-77010 |
LFA10 |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-77010 |
LFA10 |
1 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-77010 |
LFA10 |
1 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43340-77010 |
LFA10 |
1 | ||
| 47755K - INSULATOR, DISC BRAKE HEAT, NO.1 | ||||
| 47755-77030 |
LFA10 |
2 | ||
| 47755L - INSULATOR, DISC BRAKE HEAT, NO.2 | ||||
| 47755-77040 |
LFA10 |
2 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48620-77010 |
LFA10 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48640-77010 |
LFA10 |
1 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-77010 |
LFA10 |
2 | ||
| 48190A - CAM ASSY, CAMBER ADJUST, NO.2 | ||||
| 48190-77010 |
LFA10 |
2 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-77010 |
LFA10 |
2 | ||
| 48198B - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-77010 |
LFA10 |
2 | ||
| 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH | ||||
| 48610-77010 |
LFA10 |
1 | ||
| 48610E - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90171-12014 |
LFA10 |
1 | ||
| 48613 - ATTACHMENT, UPR ARM BALL JOINT RH | ||||
| 48613-77010 |
LFA10 |
1 | ||
| 48613A - ATTACHMENT, UPR ARM BALL JOINT LH | ||||
| 48613-77010 |
LFA10 |
1 | ||
| 48620 - ARM ASSY, FRONT SUSPENSION, LOWER RH | ||||
| 48620-77020 |
LFA10 |
1 | ||
| 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48630-77010 |
LFA10 |
1 | ||
| 48630A - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90171-12014 |
LFA10 |
1 | ||
| 48640 - ARM ASSY, FRONT SUSPENSION LOWER, LH | ||||
| 48640-77020 |
LFA10 |
1 | ||
| 48657A - STOPPER, FRONT LOWER ARM BUSH | ||||
| 48657-77010 |
LFA10 |
4 | ||
| 48657A - STOPPER, FRONT LOWER ARM BUSH | ||||
| 48657-77010 |
LFA10 |
4 | ||
| 48737A - COVER, LOWER CONTROL ARM, RH | ||||
| 48737-77010 |
LFA10 |
1 | ||
| 48738A - COVER, LOWER CONTROL ARM, LH | ||||
| 48738-77010 |
LFA10 |
1 | ||
| Common parts | ||||
| 90171-14013 | ||||
| 90178-10028 | ||||
| 90468-16017 | ||||
| 90468-16029 | ||||
| 91511-B0610 | ||||
| 91552-L1265 | ||||
| 91552-L1440 | ||||
