LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)

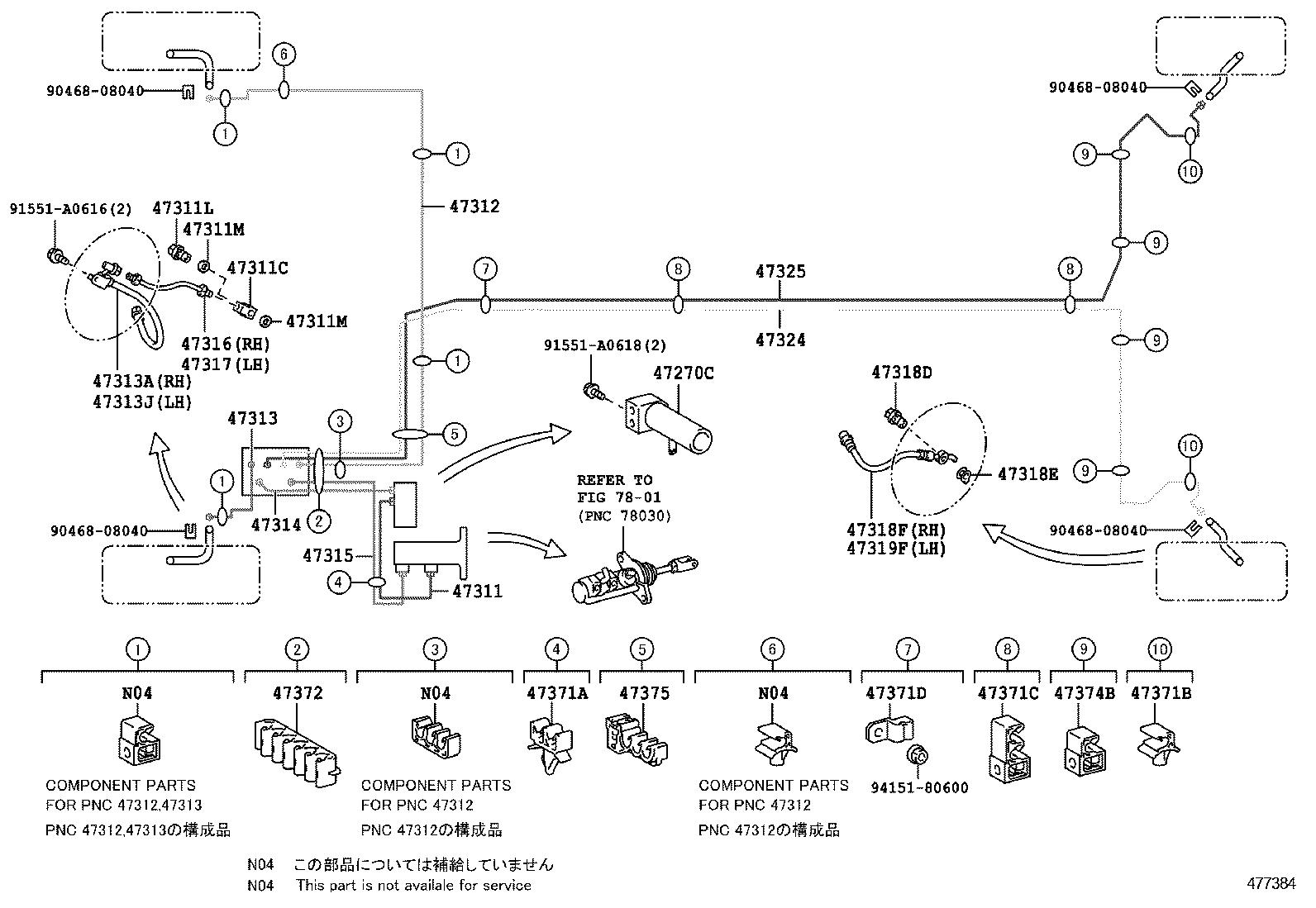

ILLUST NO. 1 OF 2(1012- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47270C - CYLINDER ASSY, BRAKE STROKE SIMULATOR | ||||
| 47270-77010 |
LFA10 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-77030 |
LFA10 |
1 | ||
| 47311C - UNION(FOR FRONT BRAKE TUBE) | ||||
| 90405-10073 |
LFA10 |
2 | ||
| 47311L - BOLT, UNION | ||||
| 90401-10056 |
LFA10 |
2 | ||
| 47311M - GASKET | ||||
| 90430-10012 |
LFA10 |
4 | ||
| 47311M - GASKET | ||||
| 90430-10012 |
LFA10 |
4 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-77010 |
LFA10 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-77010 |
LFA10 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02F10 |
LFA10 |
1 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02G40 |
LFA10 |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-77010 |
LFA10 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-77010 |
LFA10 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47311-77010 |
LFA10 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47311-77020 |
LFA10 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
LFA10 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
LFA10 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02G41 |
LFA10 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02G42 |
LFA10 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-77010 |
LFA10 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-77010 |
LFA10 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90469-07019 |
LFA10 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01D26 |
LFA10 |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01D60 |
LFA10 |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-10850 |
LFA10 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01C85 |
LFA10 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01C82 |
LFA10 |
4 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01C95 |
LFA10 |
1 | ||
| Common parts | ||||
| 90468-08040 | ||||
| 91551-A0616 | ||||
| 91551-A0618 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 7801 | ||||

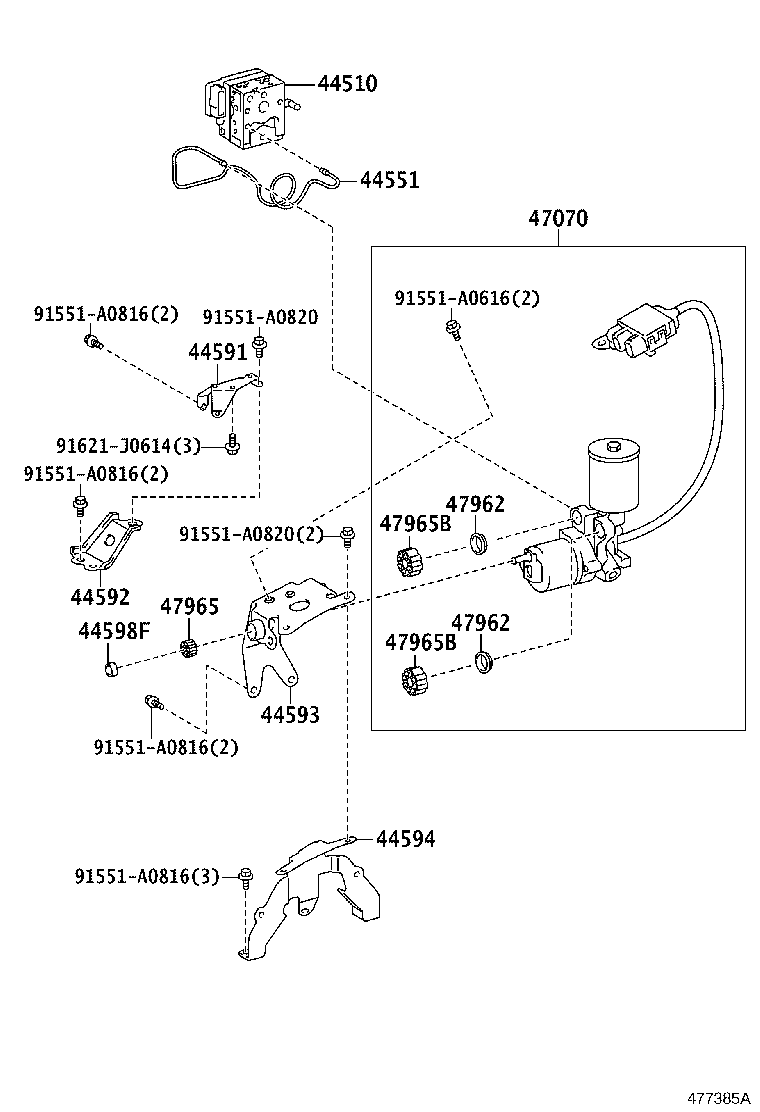

ILLUST NO. 2 OF 2(1012- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-77010 |
LFA10 |
1 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-77010 |
LFA10 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-77010 |
LFA10 |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-77010 |
LFA10 |
1 | ||
| 44593 - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44593-77010 |
LFA10 |
1 | ||
| 44594 - BRACKET, BRAKE ACTUATOR, NO.4 | ||||
| 44594-77010 |
LFA10 |
1 | ||
| 44598F - CLAMP, BRAKE ACTUATOR BRACKET | ||||
| 44598-50010 |
LFA10 |
1 | ||
| 47070 - PUMP ASSY, BRAKE BOOSTER | ||||
| 47070-77010 |
LFA10 |
1 | ||
| 47962 - COLLAR, BRAKE BOOSTER PUMP | ||||
| 47962-60090 |
LFA10 |
2 | ||
| 47962 - COLLAR, BRAKE BOOSTER PUMP | ||||
| 47962-60090 |
LFA10 |
2 | ||
| 47965 - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-30010 |
LFA10 |
1 | ||
| 47965B - BUSH, BRAKE BOOSTER PUMP, NO.2 | ||||
| 47965-24010 |
LFA10 |
2 | ||
| 47965B - BUSH, BRAKE BOOSTER PUMP, NO.2 | ||||
| 47965-24010 |
LFA10 |
2 | ||
| Common parts | ||||
| 91551-A0616 | ||||
| 91551-A0816 | ||||
| 91551-A0820 | ||||
| 91621-J0614 | ||||
