LFA10L-FCRAFA (2010)
Toyota Lexus Lfa
Production
Dec 2010
-
Dec 2012
Engine
1LRGUE
Transmission
6F ASG
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )

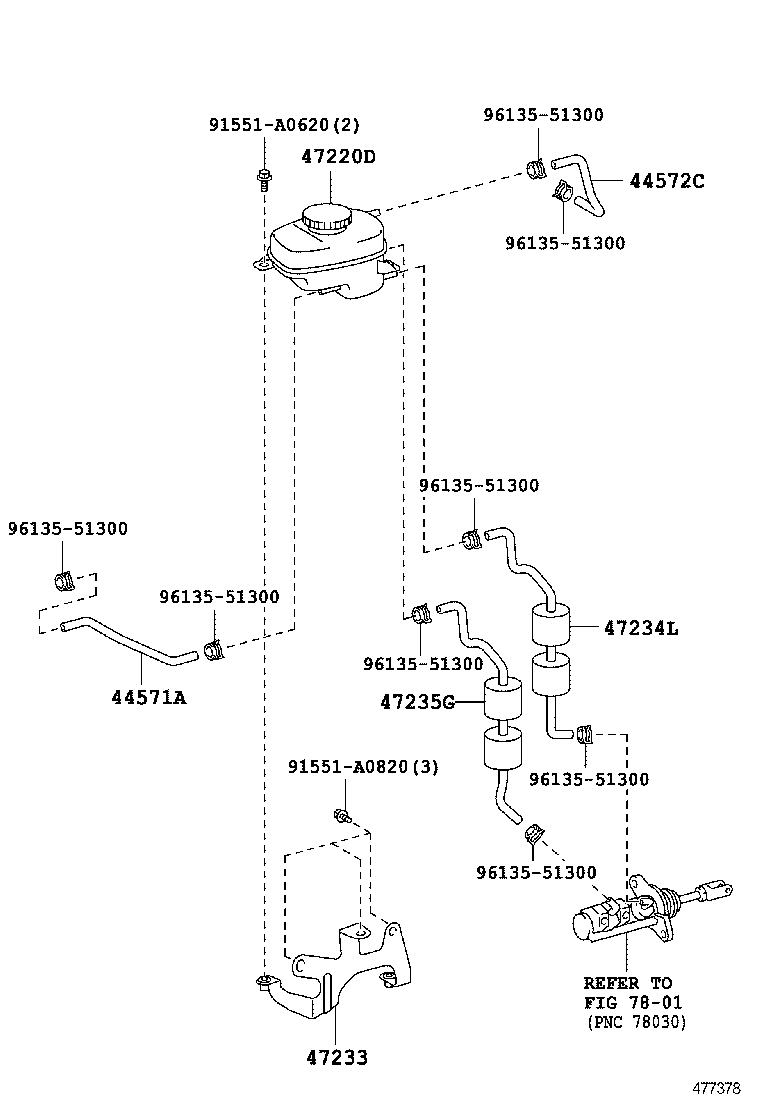

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44571A - HOSE, BRAKE ACTUATOR, NO.1 | ||||
| 44571-77010 |
LFA10 |
1 | ||
| 44572C - HOSE, BRAKE ACTUATOR, NO.2 | ||||
| 44572-77010 |
LFA10 |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-77010 |
LFA10 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-77010 |
LFA10 |
1 | ||
| 47234L - HOSE, RESERVOIR, NO.1 | ||||
| 47234-77010 |
LFA10 |
1 | ||
| 47235G - HOSE, RESERVOIR, NO.2 | ||||
| 47235-77010 |
LFA10 |
1 | ||
| Common parts | ||||
| 91551-A0620 | ||||
| 91551-A0820 | ||||
| 96135-51300 | ||||
| Linked diagrams | ||||
| 7801 | ||||
