LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

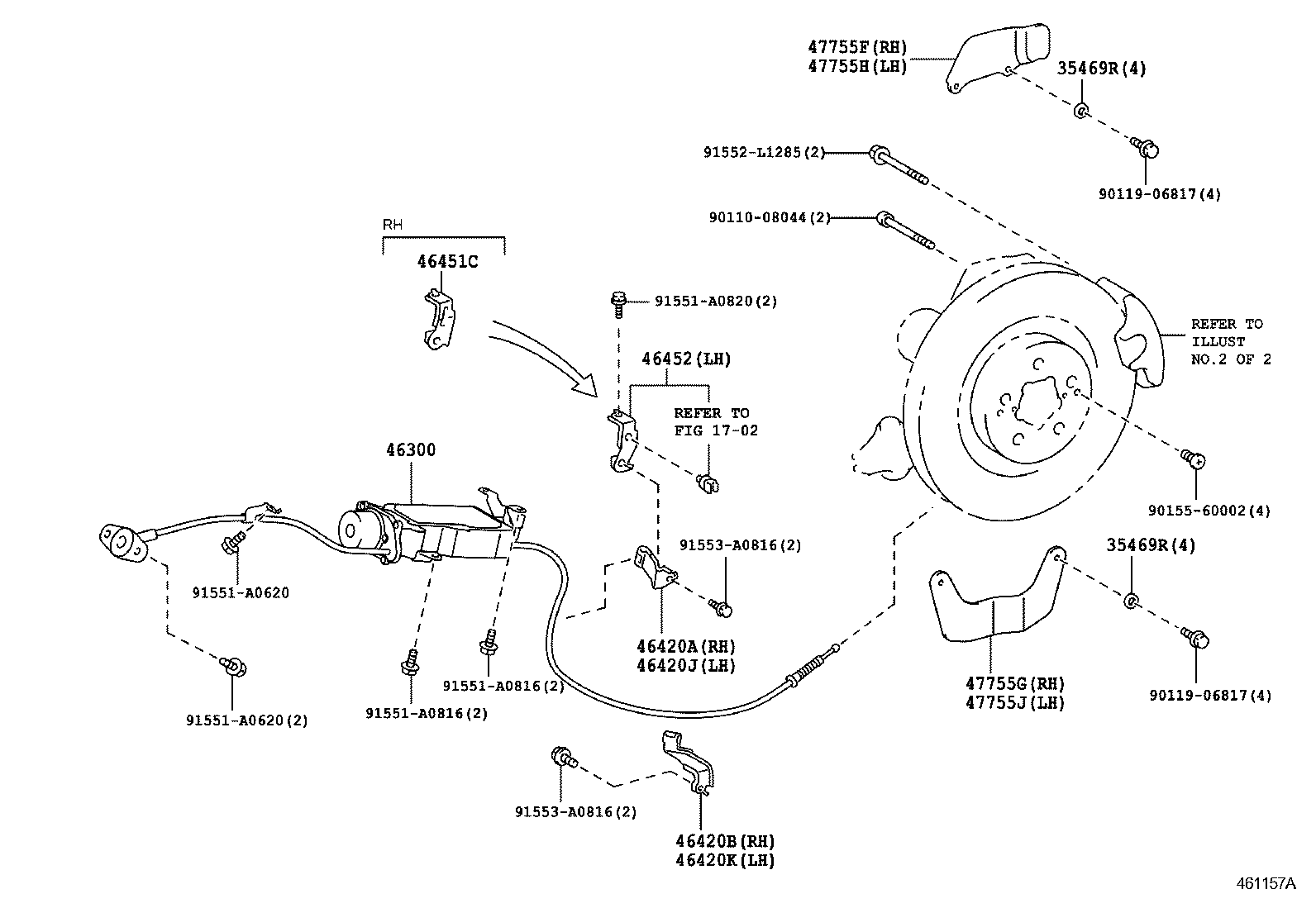

ILLUST NO. 1 OF 2(1012- )

Click highlighted areas on diagram

diagram 1702 35469R 35469R 46300 46420A 46420B 46420J 46420K 46451C 46452 47755F 47755G 47755H 47755J 9011008044 9011906817 9011906817 9015560002 91551A0620 91551A0620 91551A0816 91551A0816 91551A0820 91552L1285 91553A0816 91553A0816
Part # Description Qty Price
35469R - SPACER
35469-77020

LFA10

 8
35469R - SPACER
35469-77020

LFA10

 8
46300 - ACTUATOR ASSY, PARKING BRAKE W/BRACKET
46300-77010

LFA10

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46421-77010

LFA10

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46421-77020

LFA10

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46431-77010

LFA10

 1
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46431-77020

LFA10

 1
46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46451-77010

LFA10

 1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46451-77020

LFA10

 1
47755F - INSULATOR, DISC BRAKE HEAT, NO.1
47755-77070

LFA10

 1
47755G - INSULATOR, DISC BRAKE HEAT, NO.2
47755-77080

LFA10

 1
47755H - INSULATOR, DISC BRAKE HEAT, NO.3
47755-77090

LFA10

 1
47755J - INSULATOR, DISC BRAKE HEAT, NO.4
47755-77100

LFA10

 1
Common parts
90110-08044
90119-06817
90155-60002
91551-A0620
91551-A0816
91551-A0820
91552-L1285
91553-A0816
Linked diagrams
1702

ILLUST NO. 2 OF 2(1012- )

Click highlighted areas on diagram

diagram 04466A 04948A 4651A 4652A
Part # Description Qty Price
04466A - PAD KIT, PARKING BRAKE
04466-0W060

LFA10

 1
04948A - FITTING KIT, PARKING BRAKE
04948-0W030

LFA10

 2
4651A - CYLINDER, PARKING DISC BRAKE, RH
4651A-0W050

LFA10

 1
4652A - CYLINDER, PARKING DISC BRAKE, LH
4652A-0W010

LFA10

 1
