LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

Click highlighted areas on diagram

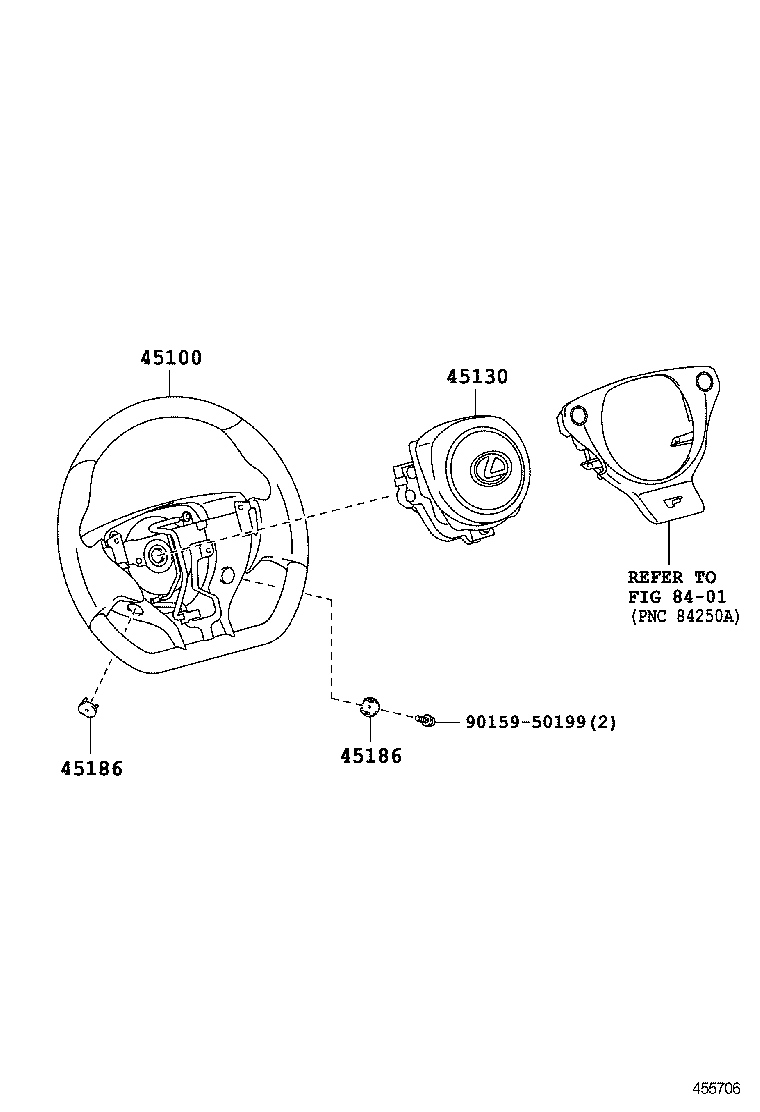

diagram 45100 45130 45186 45186 8401 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-77010E1

LFA10

3-SP,CARBON&LEATHER,BLACK & BLACKISH .BROWN,TRIM20

 1
45100-77010E2

LFA10

3-SP,CARBON&LEATHER,BLACK & ORANGE,TRIM20

 1
45100-77010A0

LFA10

3-SP,CARBON&LEATHER,BLACK & WHITE,TRIM20

 1
45100-77010B0

LFA10

3-SP,CARBON&LEATHER,BLACK & SILVER,TRIM20

 1
45100-77010D2

LFA10

3-SP,CARBON&LEATHER,BLACK & BORDEAUX,TRIM20

 1
45100-77010D1

LFA10

3-SP,CARBON&LEATHER,BLACK & RED,TRIM20

 1
45100-77010K0

LFA10

3-SP,CARBON&LEATHER,BLACK & VIOLET,TRIM20

 1
45100-77010F0

LFA10

3-SP,CARBON&LEATHER,BLACK & CAMEL YELLOW,TRIM20

 1
45100-77010J1

LFA10

3-SP,CARBON&LEATHER,BLACK & BLUE,TRIM20

 1
45100-77010A1

LFA10

3-SP,CARBON&LEATHER,BLACK & CREAM,TRIM20

 1
45100-77010C0

LFA10

3-SP,CARBON&LEATHER,BLACK & BLACK,TRIM20

 1
45100-77010E0

LFA10

3-SP,CARBON&LEATHER,BLACK & SADDLE TAN,TRIM20

 1
45130 - BUTTON ASSY, HORN
45130-77030C0

LFA10

BLACK,TRIM2#

 1
45130-77010C0

LFA10

BLACK,TRIM2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-77010C0

LFA10

BLACK,TRIM2#

 2
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-77010C0

LFA10

BLACK,TRIM2#

 2
Common parts
90159-50199
Linked diagrams
8401
