LFA10L-FCRAFA (2010)

Toyota Lexus Lfa

Production Dec 2010 - Dec 2012
Engine 1LRGUE
Transmission 6F ASG
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

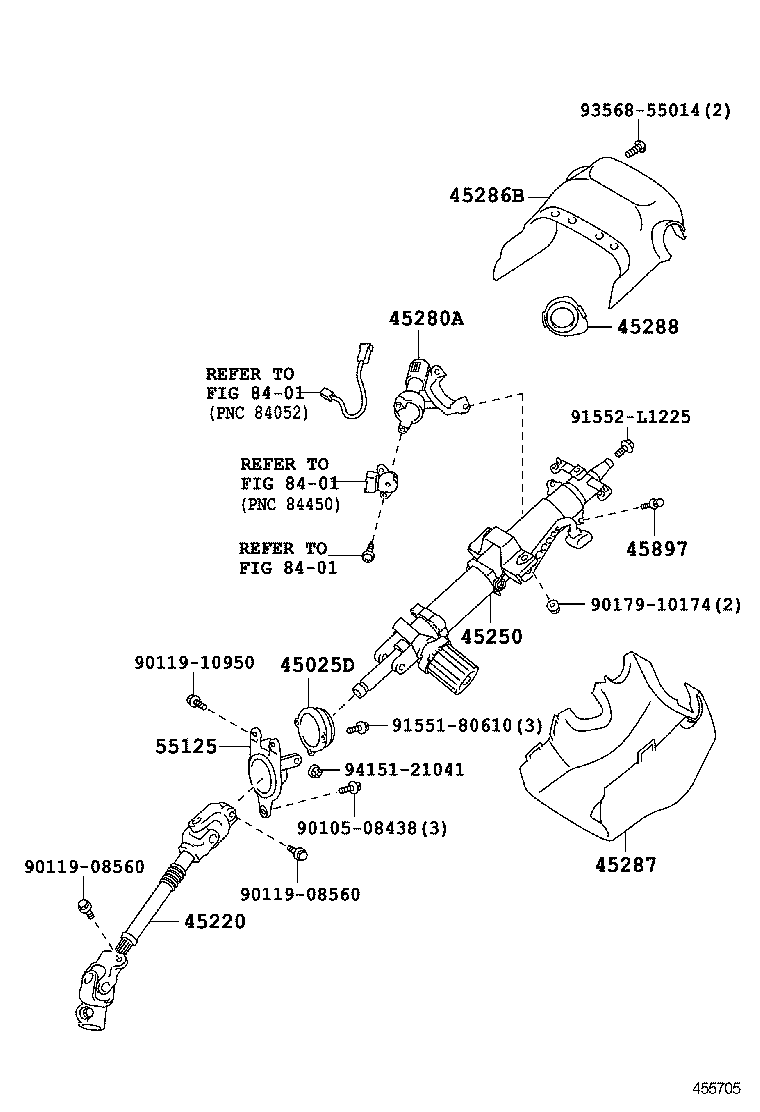

Click highlighted areas on diagram

diagram 45025D 45220 45250 45280A 45286B 45287 45288 45897 55125 8401 8401 8401 9010508438 9011908560 9011908560 9011910950 9017910174 9155180610 91552L1225 9356855014 9415121041
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-77010

LFA10

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-77010

LFA10

 1
45250 - COLUMN ASSY, STEERING
45250-77030

LFA10

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-77010

LFA10

 1
45286B - COVER, STEERING COLUMN, UPR
45286-77010C0

LFA10

BLACK,TRIM2#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-77010C0

LFA10

BLACK,TRIM2#

 1
45288 - PLATE, STEERING COLUMN COVER
45288-77010

LFA10

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

LFA10

 2
55125 - BRACKET, STEERING SUPPORT
55125-77010

LFA10

 1
Common parts
90105-08438
90119-08560
90119-10950
90179-10174
91551-80610
91552-L1225
93568-55014
94151-21041
Linked diagrams
8401
